3-inch black-on-white overhead crane compass decal with North, South, East, and West arrows.

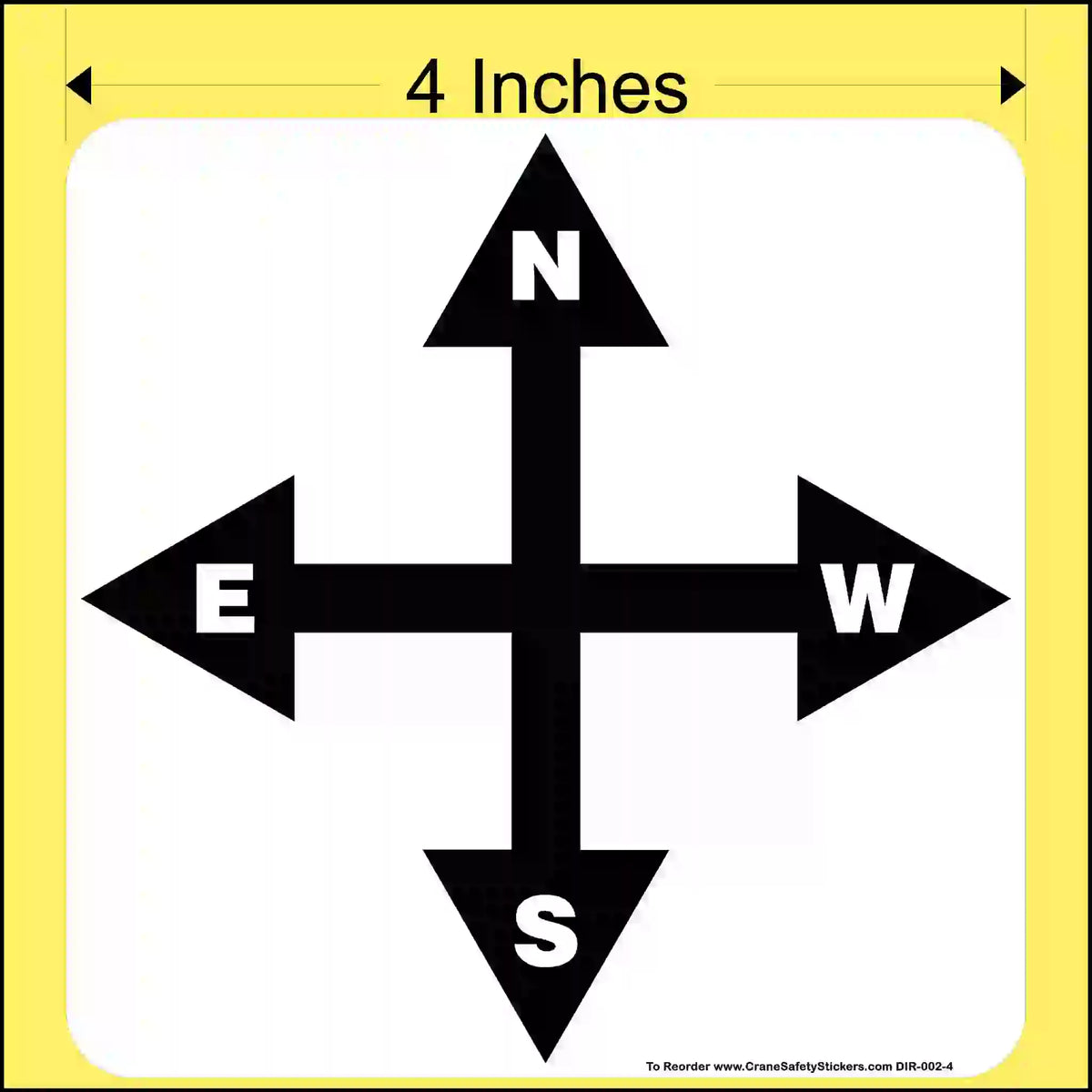

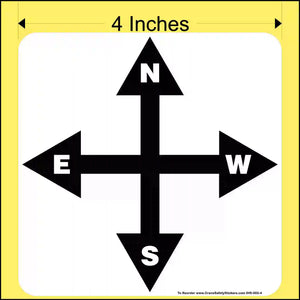

4-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

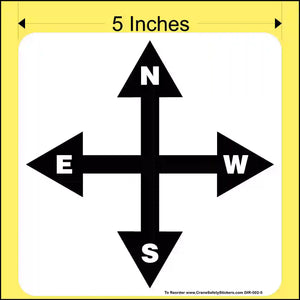

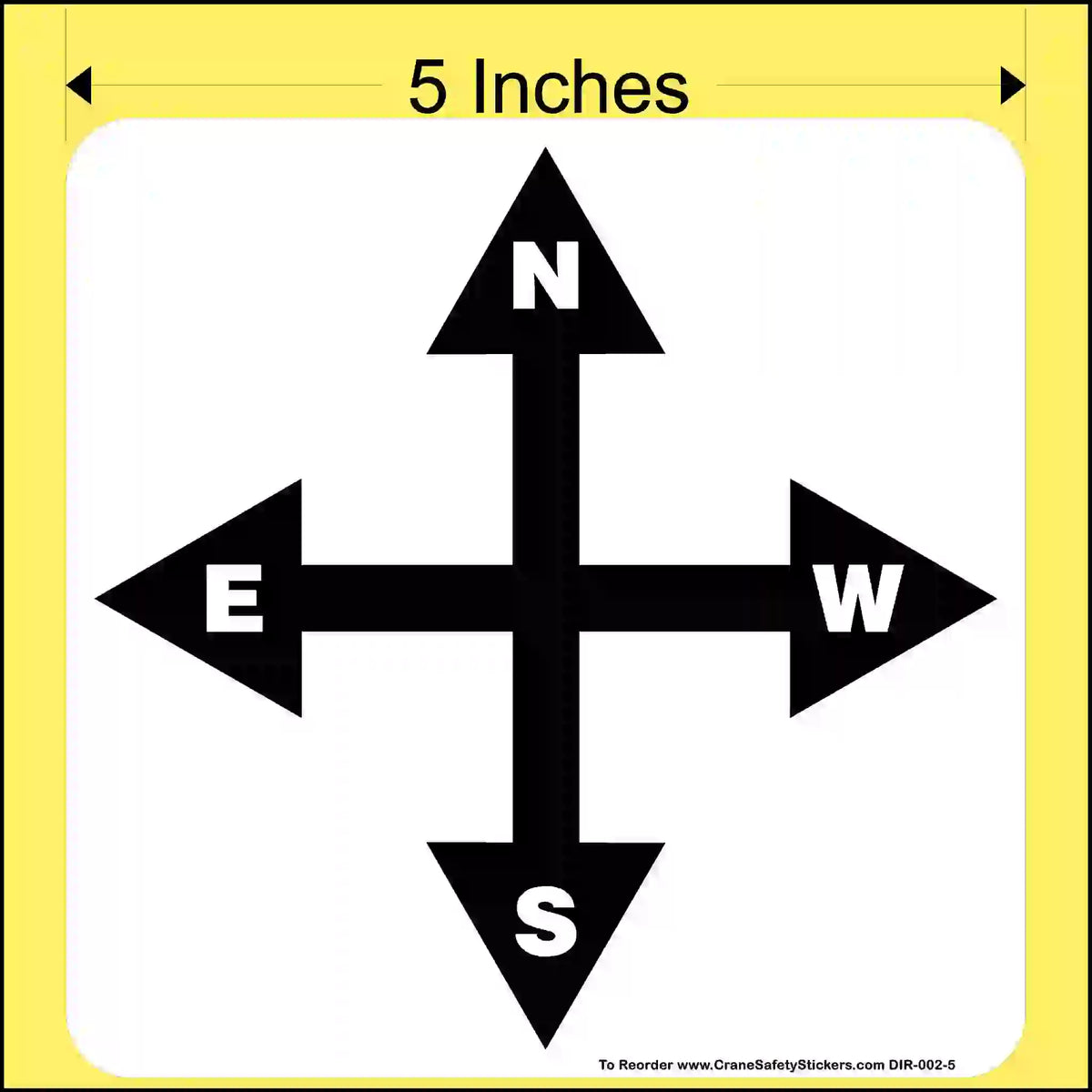

5-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

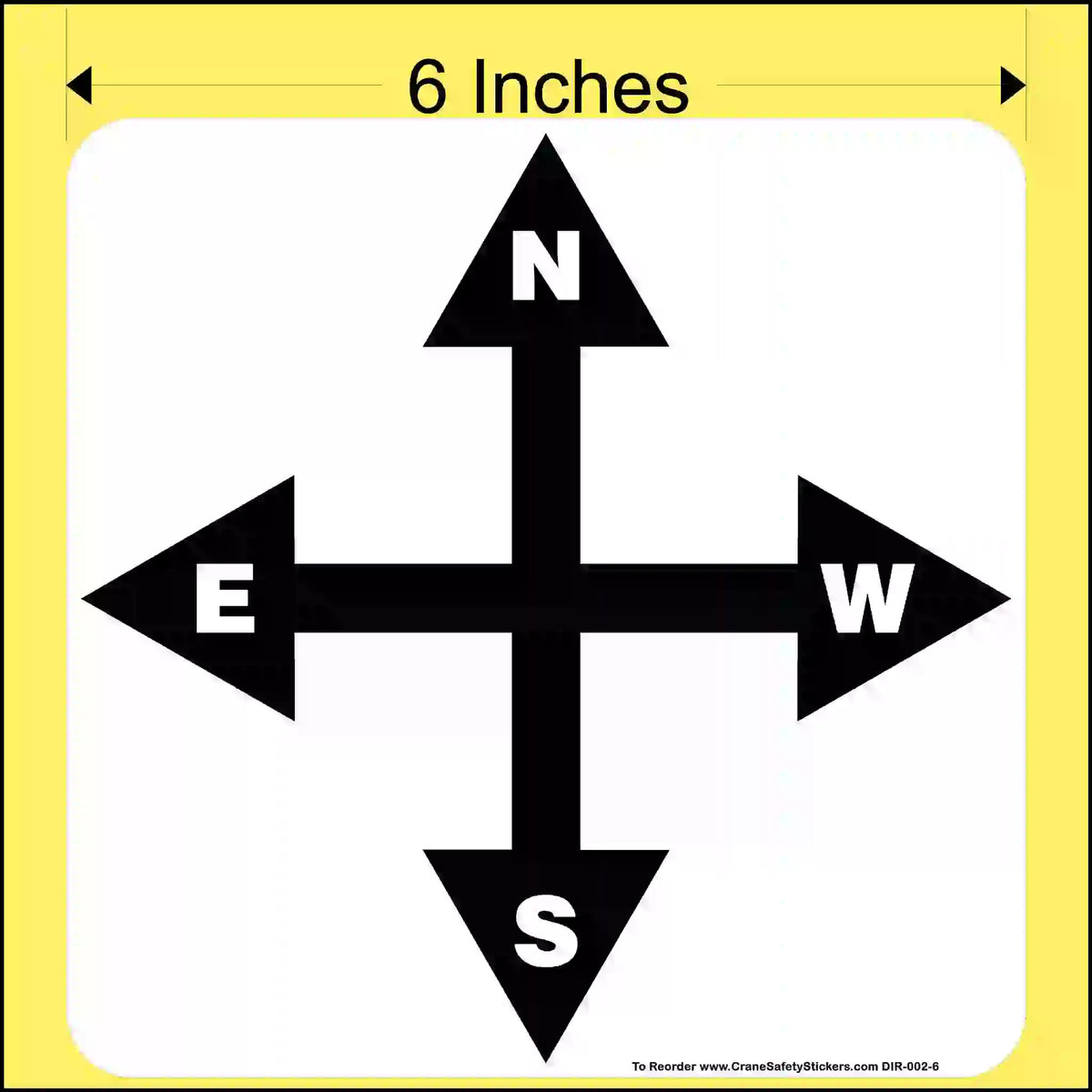

6-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

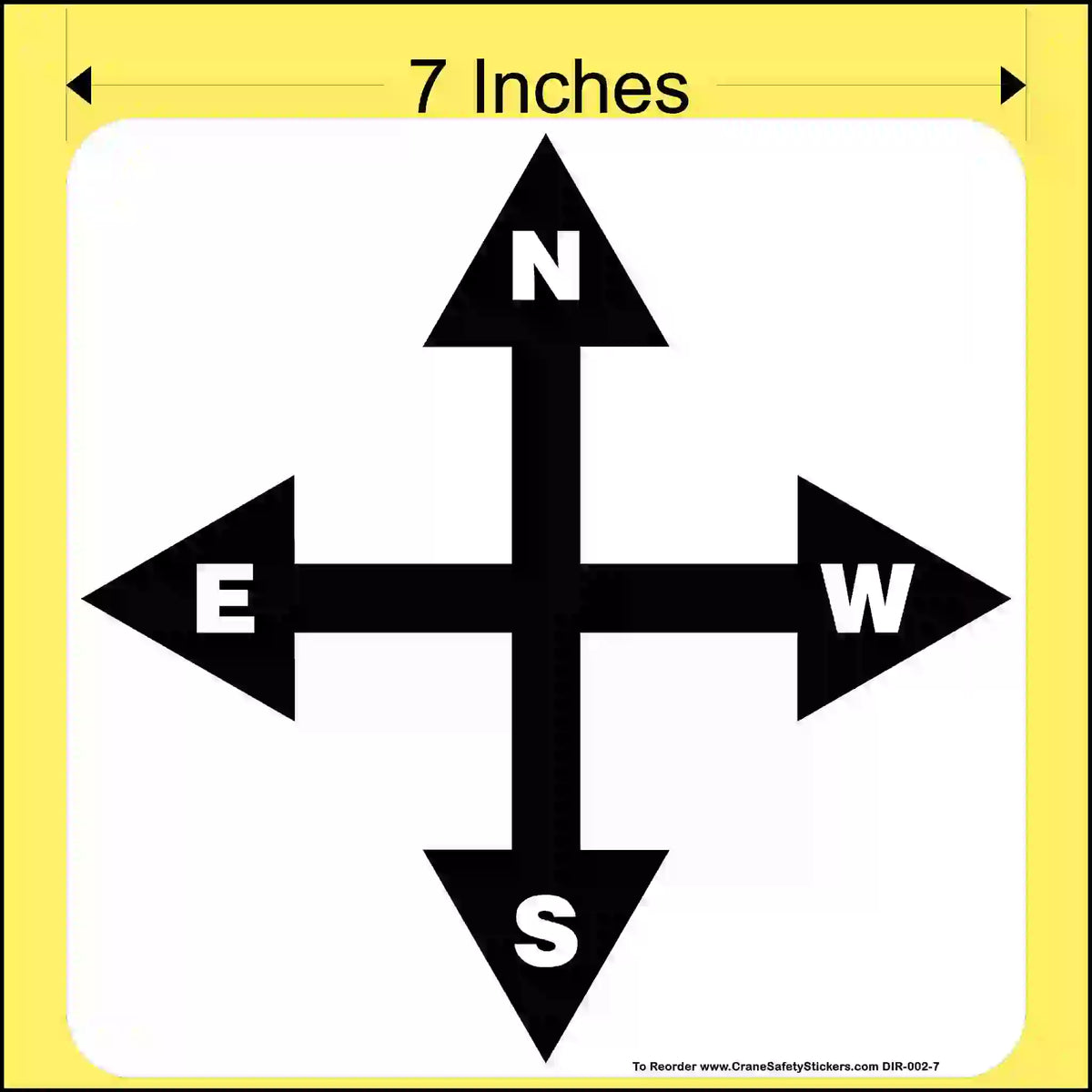

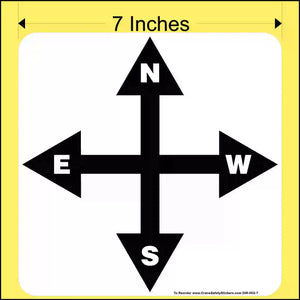

7-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

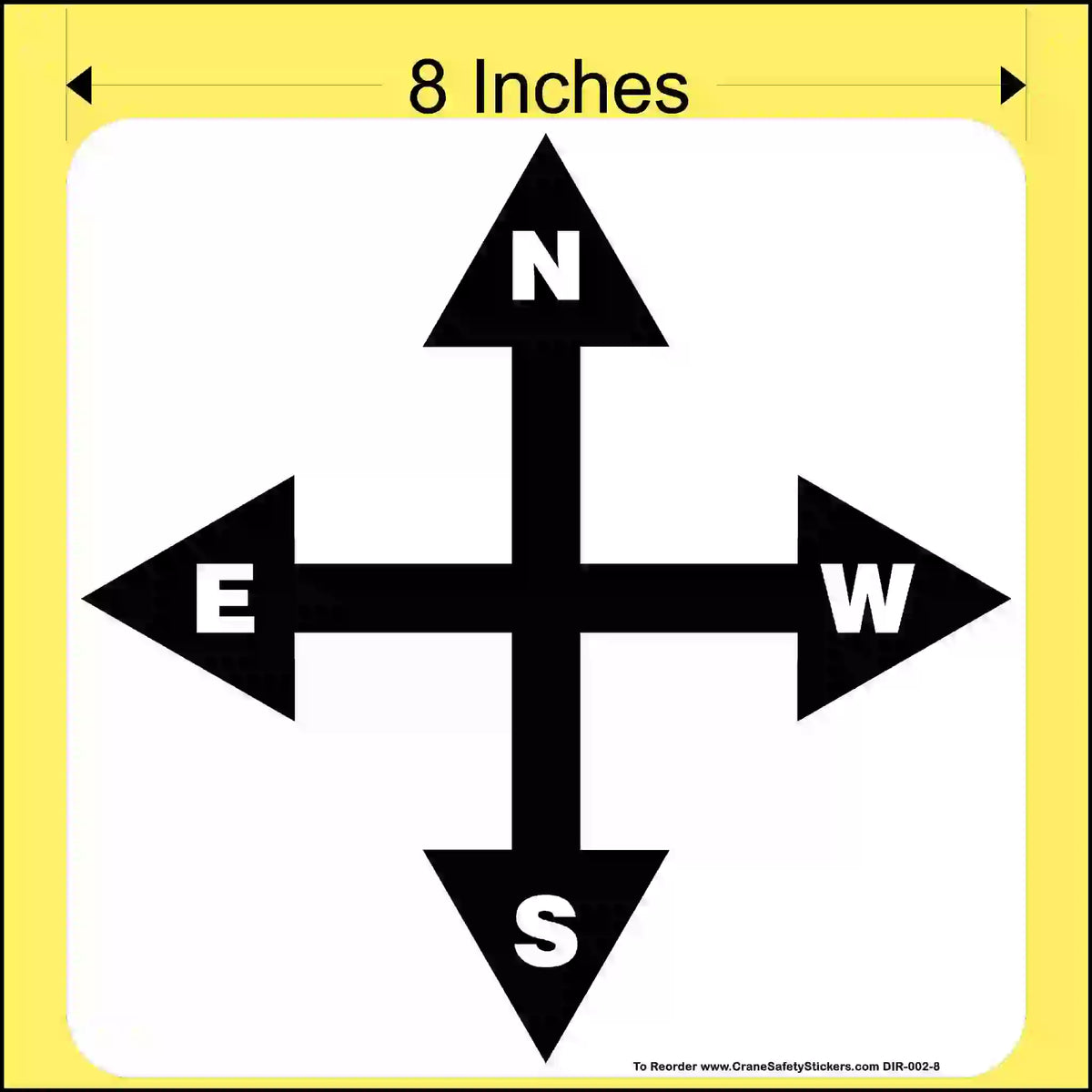

8-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

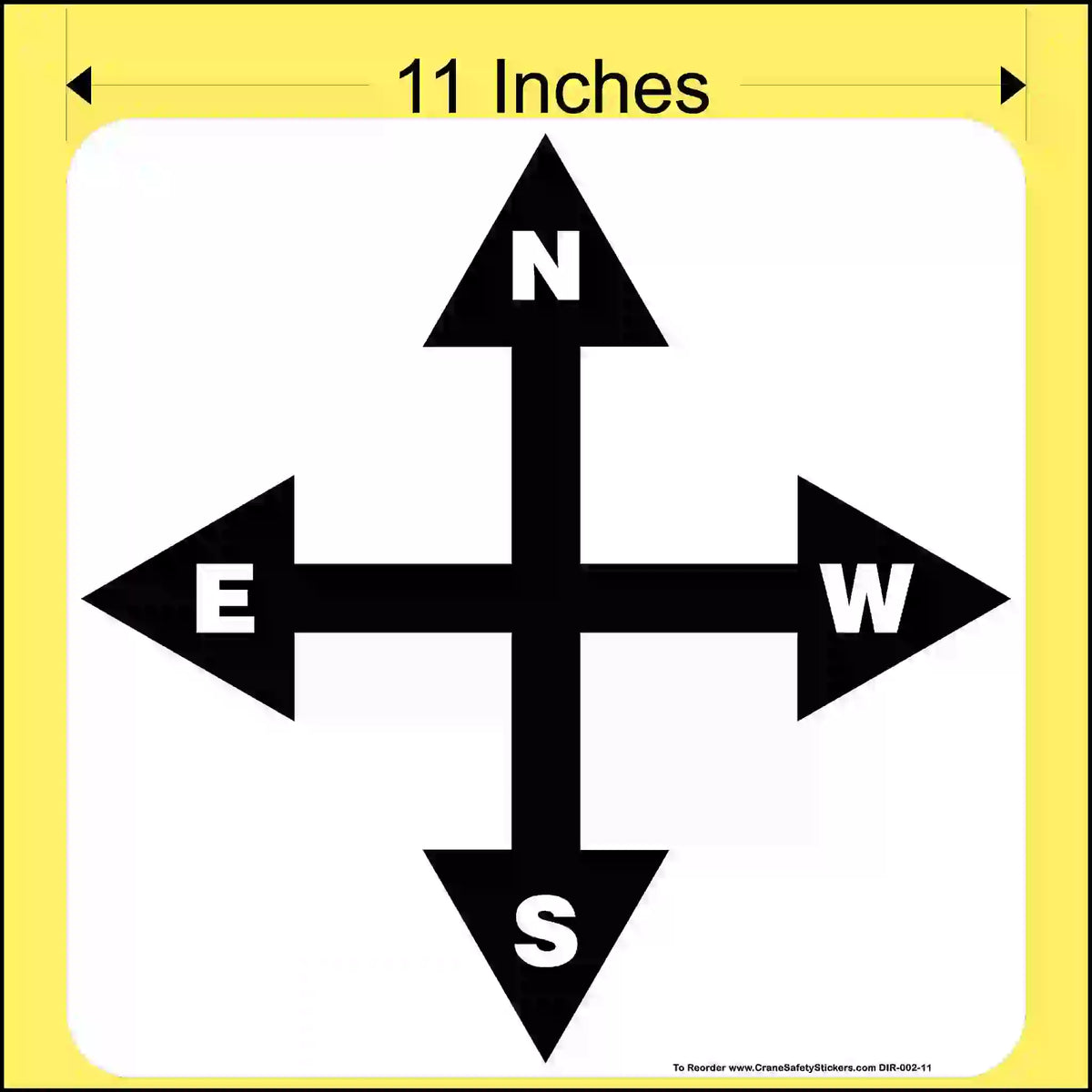

11-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.
12.5-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

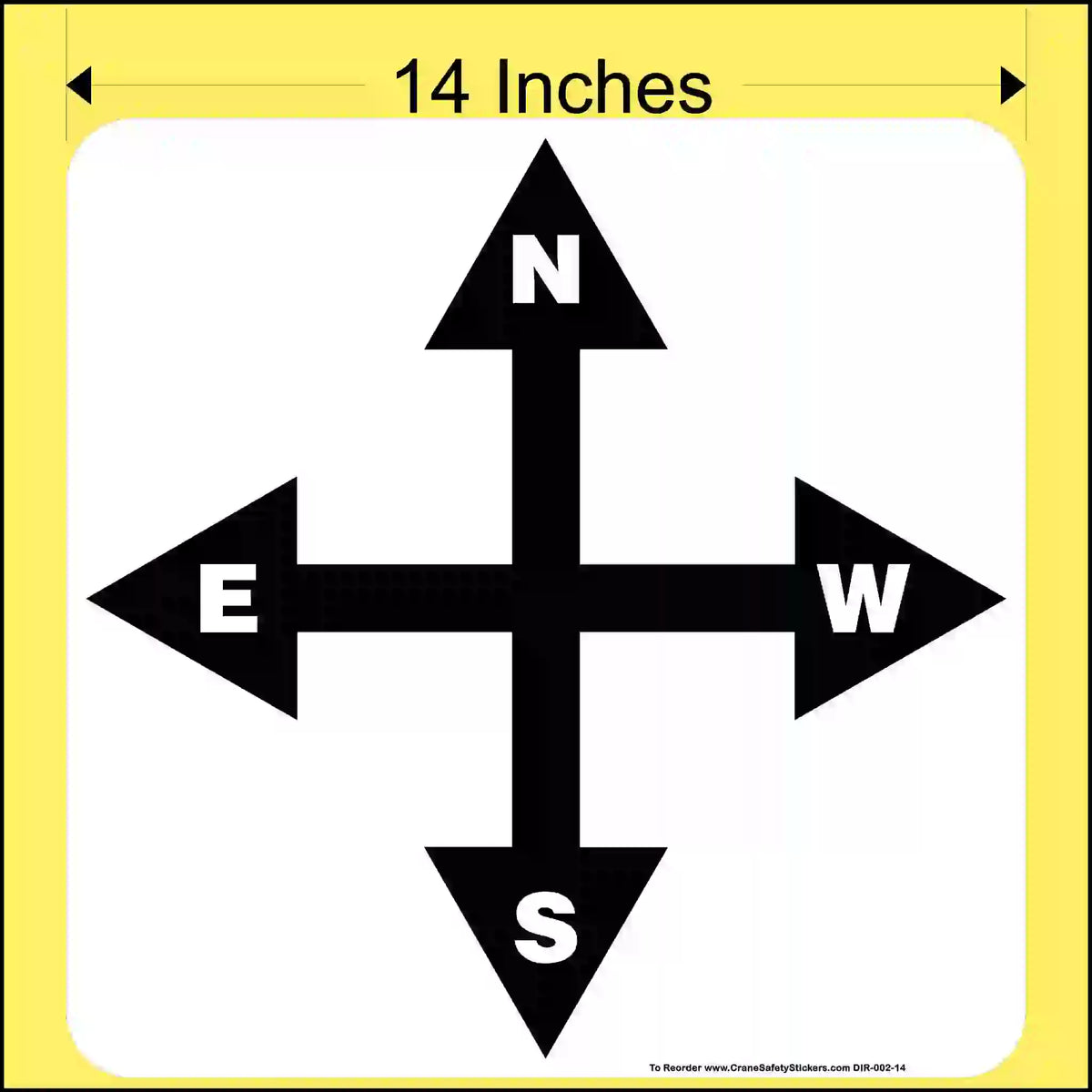

14-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

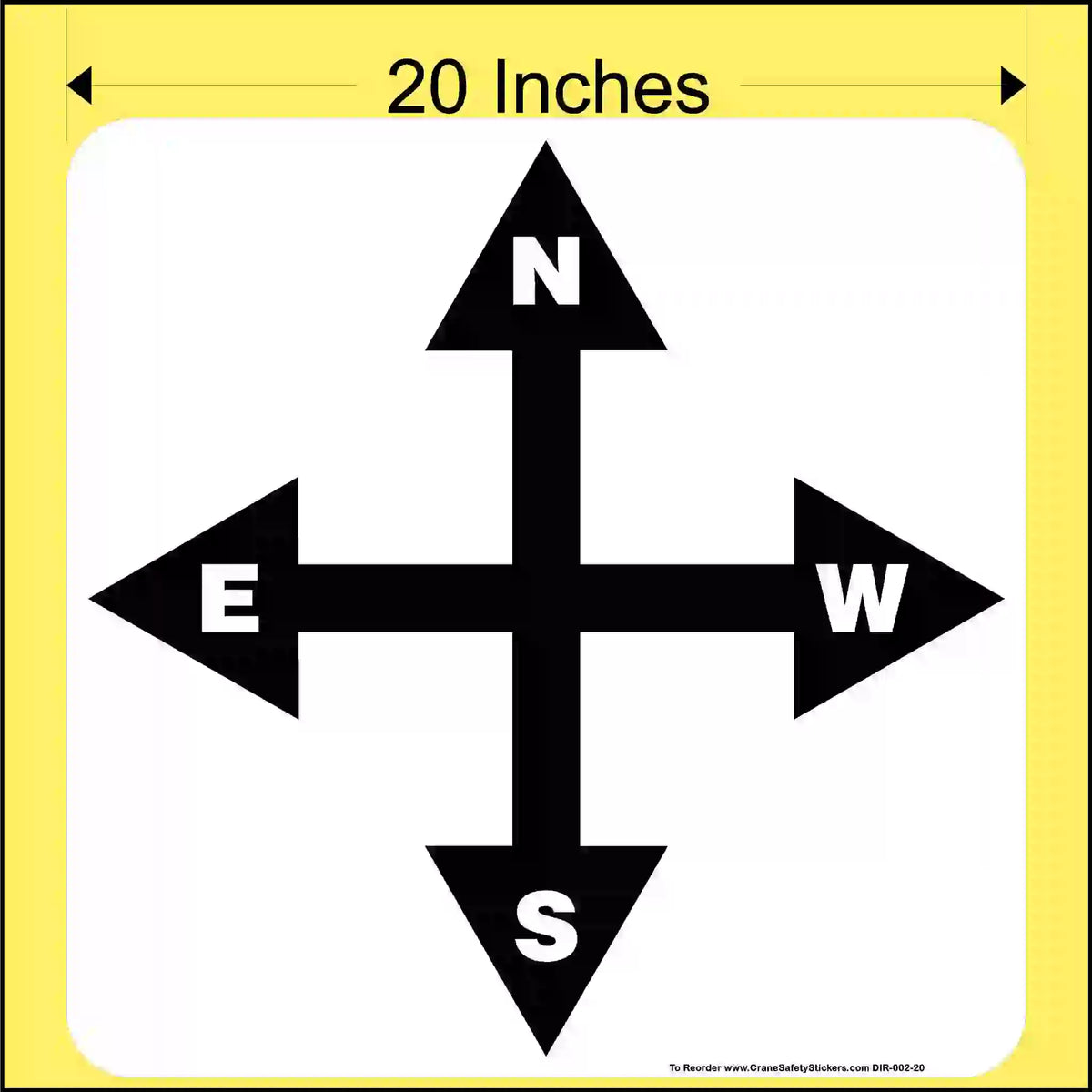

20-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

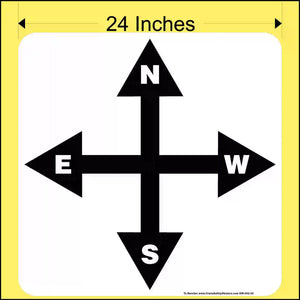

24-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

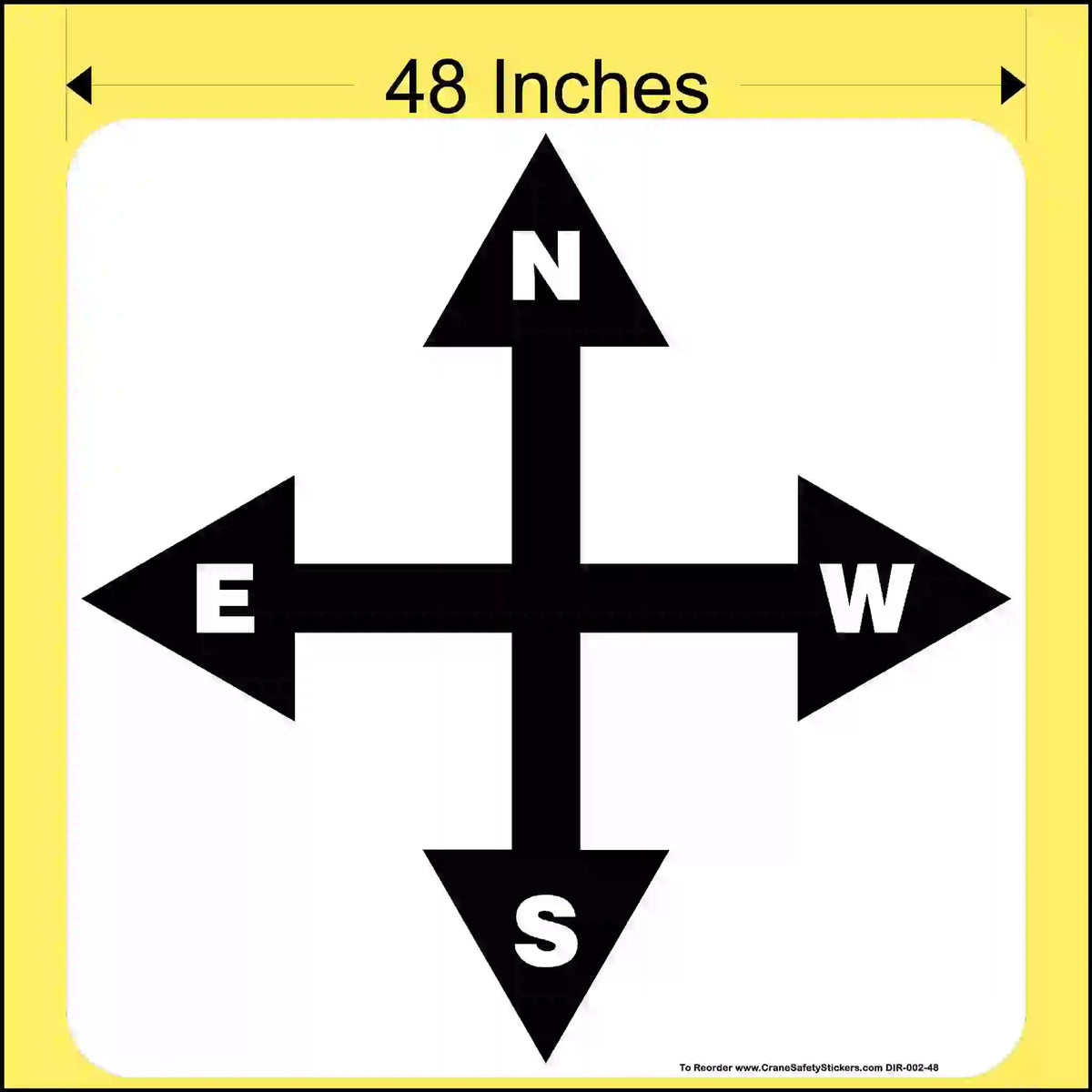

48-inch black-on-white overhead crane compass decal with North, South, East, and West arrows and size markings.

Overhead Crane N-S-E-W Directional Decal

DIR-002-3

$13.65 USD - $155.00 USD

North-South-East-West Overhead Crane Directional Decal

This black-on-white compass decal displays North, South, East, and West markings for a visual reference on overhead crane equipment. Choose from 12 size options: 3, 4, 5, 6, 7, 8, 11, 12.5, 14, 20, 24, or 48 inches.

Confirm the layout before applying

Compare the printed arrangement with your crane’s actual travel directions and pendant controls from the intended viewing position. Equipment layouts and control conventions vary; verify that this compass layout matches your crane before applying.

Application notes

Choose a clean, dry surface and follow the product and equipment instructions. Placement depends on the crane configuration and intended viewing position.

This decal is a visual direction reference, not a compliance certification. Confirm the requirements that apply to your equipment and workplace.

Browse the crane directional decals or pair it with our Overhead Crane Hand Signal Chart.

It shows North, South, East, and West markings in a black-on-white compass layout.

Choose from 3, 4, 5, 6, 7, 8, 11, 12.5, 14, 20, 24, or 48 inches.

Compare the printed arrangement with the crane’s actual travel directions and pendant controls from the intended viewing position. Verify that the layout matches your crane before applying it.

This listing is for an adhesive decal, not a rigid sign.

No. It provides a visual direction reference but does not certify compliance. Confirm the requirements that apply to your equipment and workplace.

Choose a suitable clean, dry surface and follow the product and equipment instructions. Placement depends on the crane’s configuration and intended viewing position.

Technical & Safety Data

Product Composition & Identification

Film Construction: 2.75 mil Polymeric Calendered Vinyl base paired with a 2.75 mil flexible clear Polymeric Calendered Vinyl overlaminate.

Adhesive System: Clear Solvent-Based Permanent Pressure Sensitive Acrylic.

Total Adhesive Thickness: 2.3 mil combined (1.2 mil base and 1.1 mil laminate).

Health, Safety & Regulatory Compliance

Fire Rating: Class A fire rating under ASTM E84-17 testing.

Commercial Safety: Meets the highest life safety requirements for indoor and outdoor commercial graphics.

Toxicity & Structure: Phthalate-Free Film Structure.

Regulatory Standards: Meets the health and safety requirements set forth by CPSIA, REACH, RoHS, and California Proposition 65.

Physical & Chemical Properties

Chemical Resistance: Resists mild acids, mild alkalis, solvents, and salts.

Moisture Resistance: Excellent resistance to water, including full immersion.

Tensile Strength: 12.5 Pounds/Inch.

Dimensional Stability: 0.020 Inch (Machine Direction).

Peel Adhesion: 4.5 Pounds/Inch from Stainless Steel.

Environmental & Temperature Tolerances

Operating Temperature Range: -40°F to 190°F.

Application Temperature: 50°F to 80°F recommended.

Installation Surface: Clean, dry, and free of dust, dirt, debris, or grease.

Outdoor Lifespan: Up to 5 years permanent durability.
