Overhead Crane Directional Stickers: OSHA & ASME Compliant

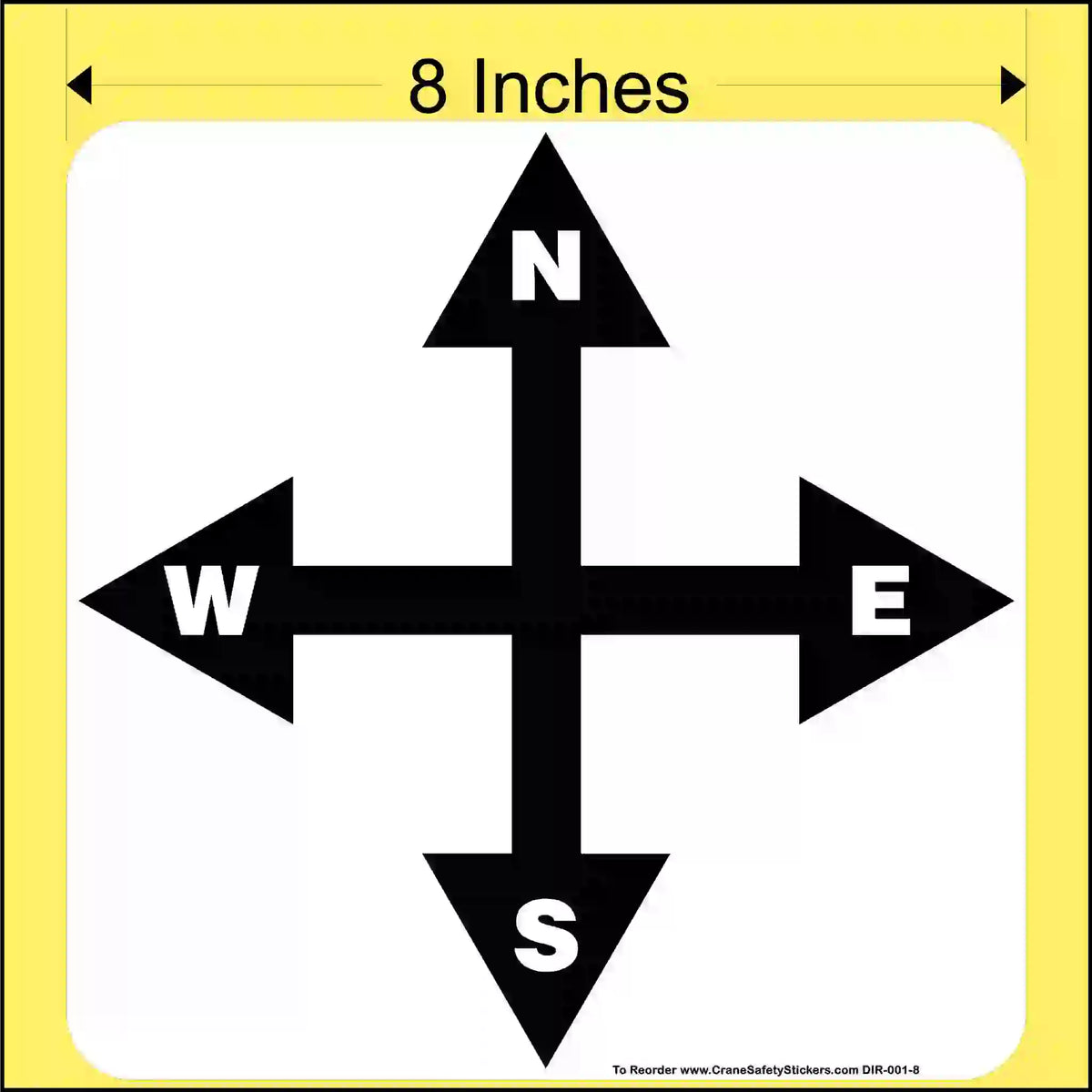

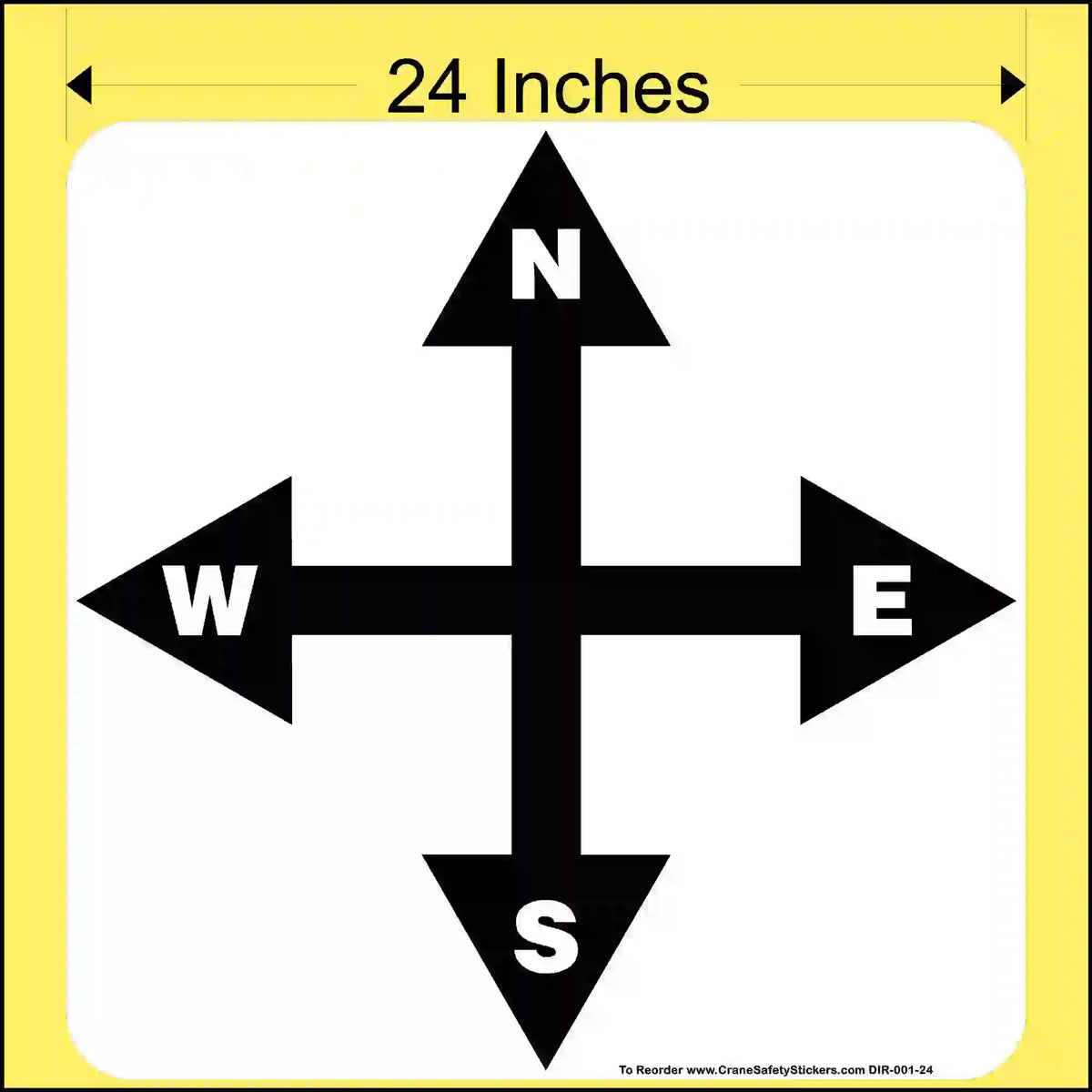

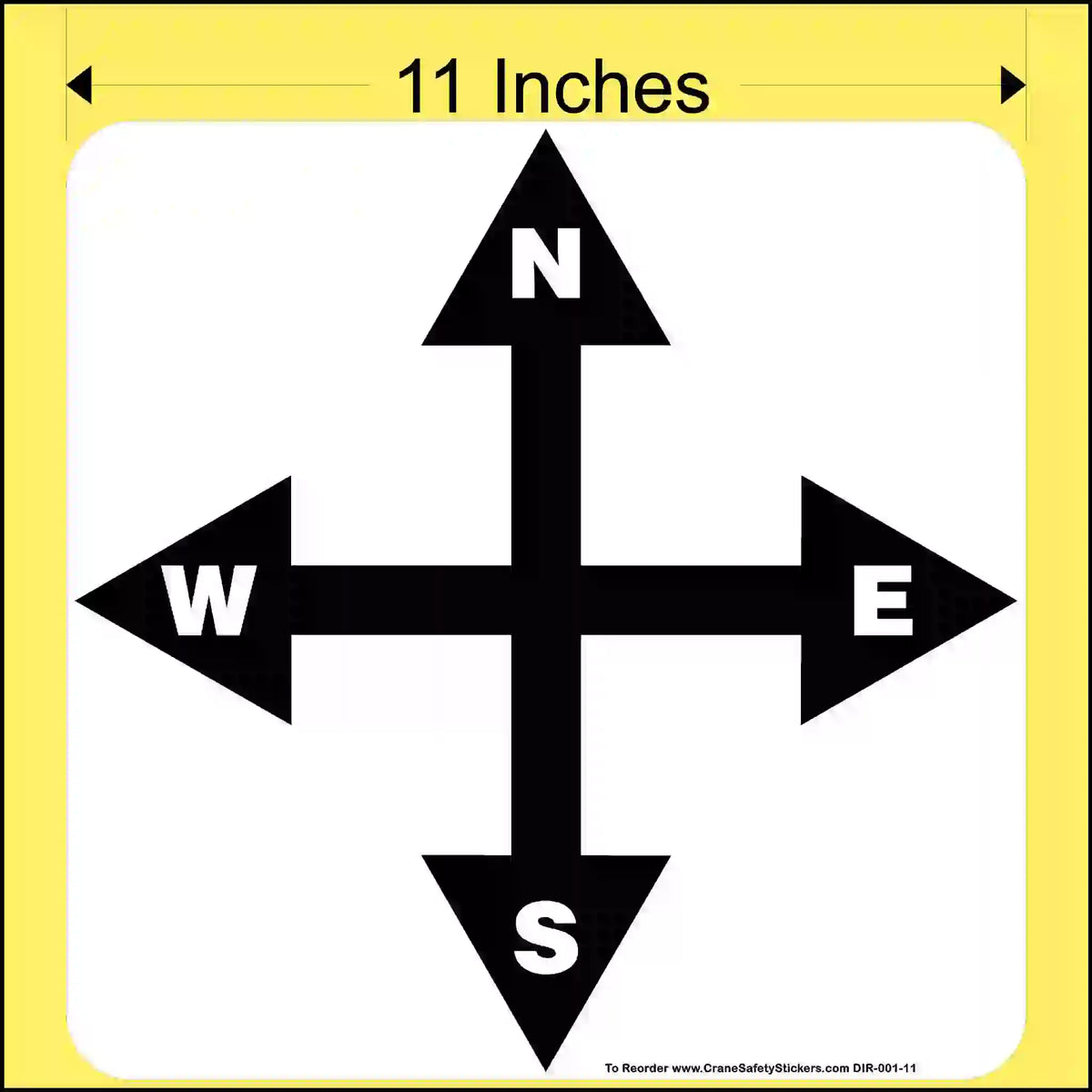

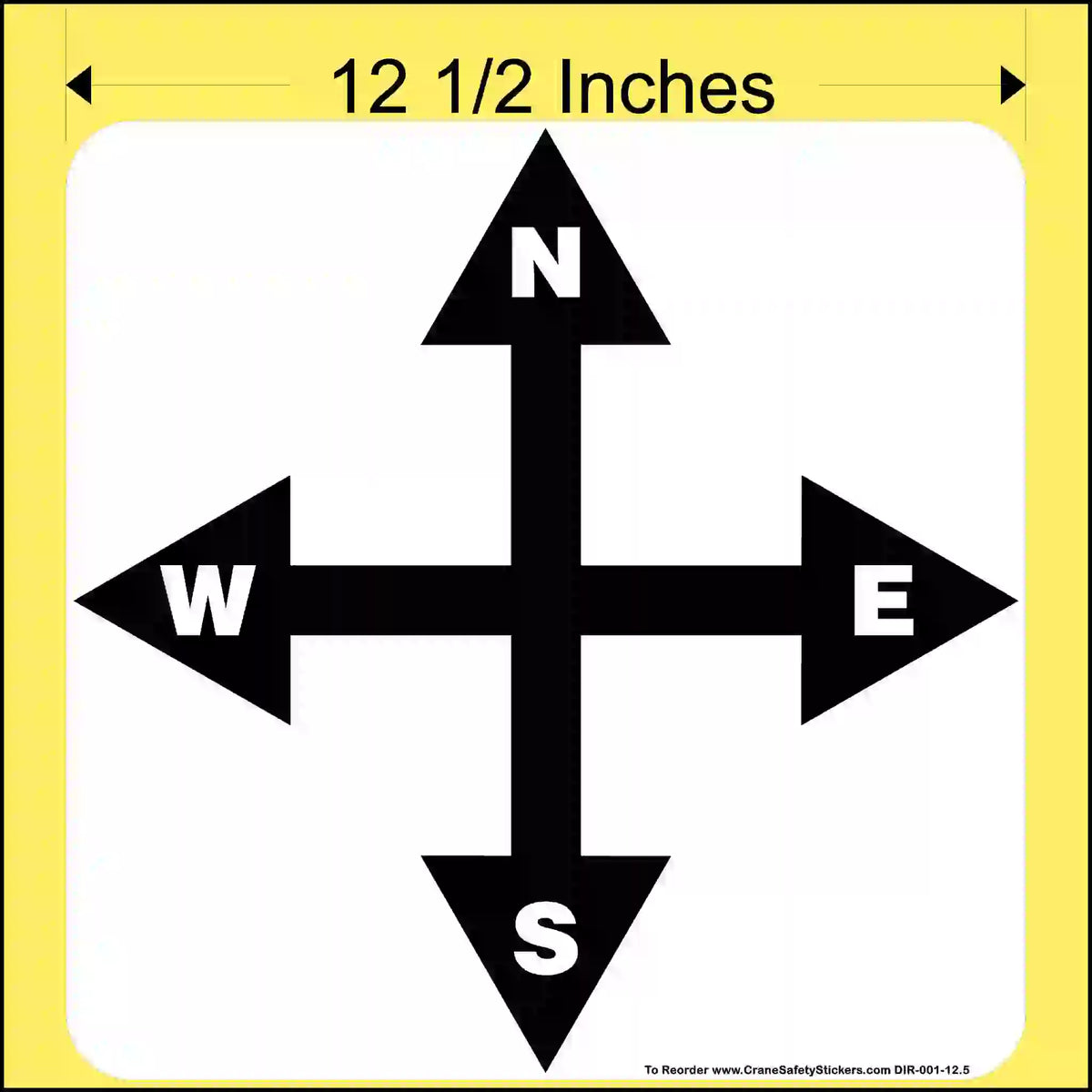

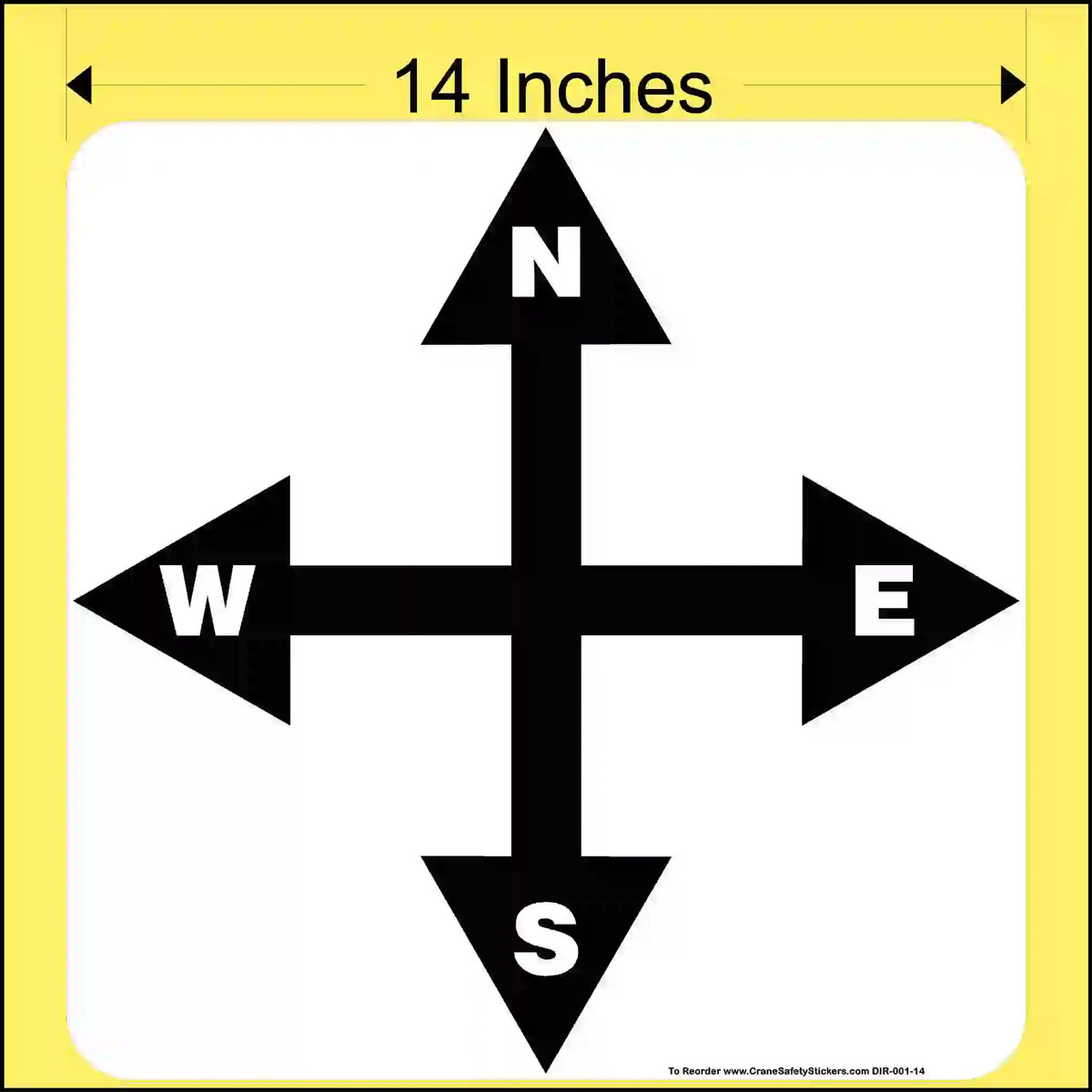

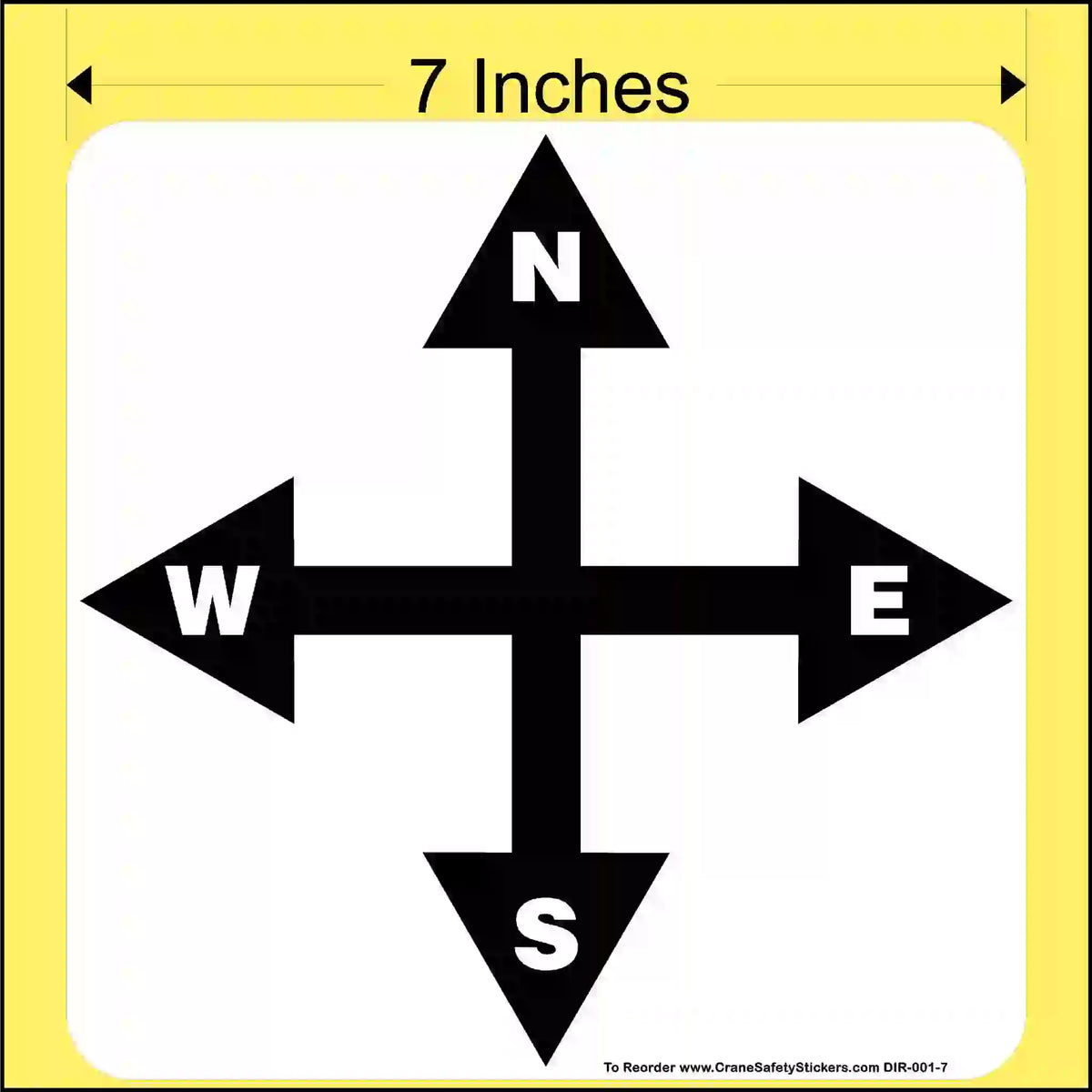

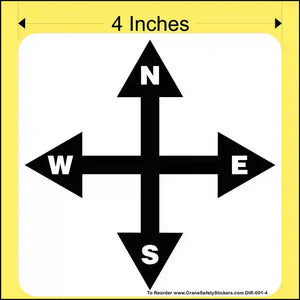

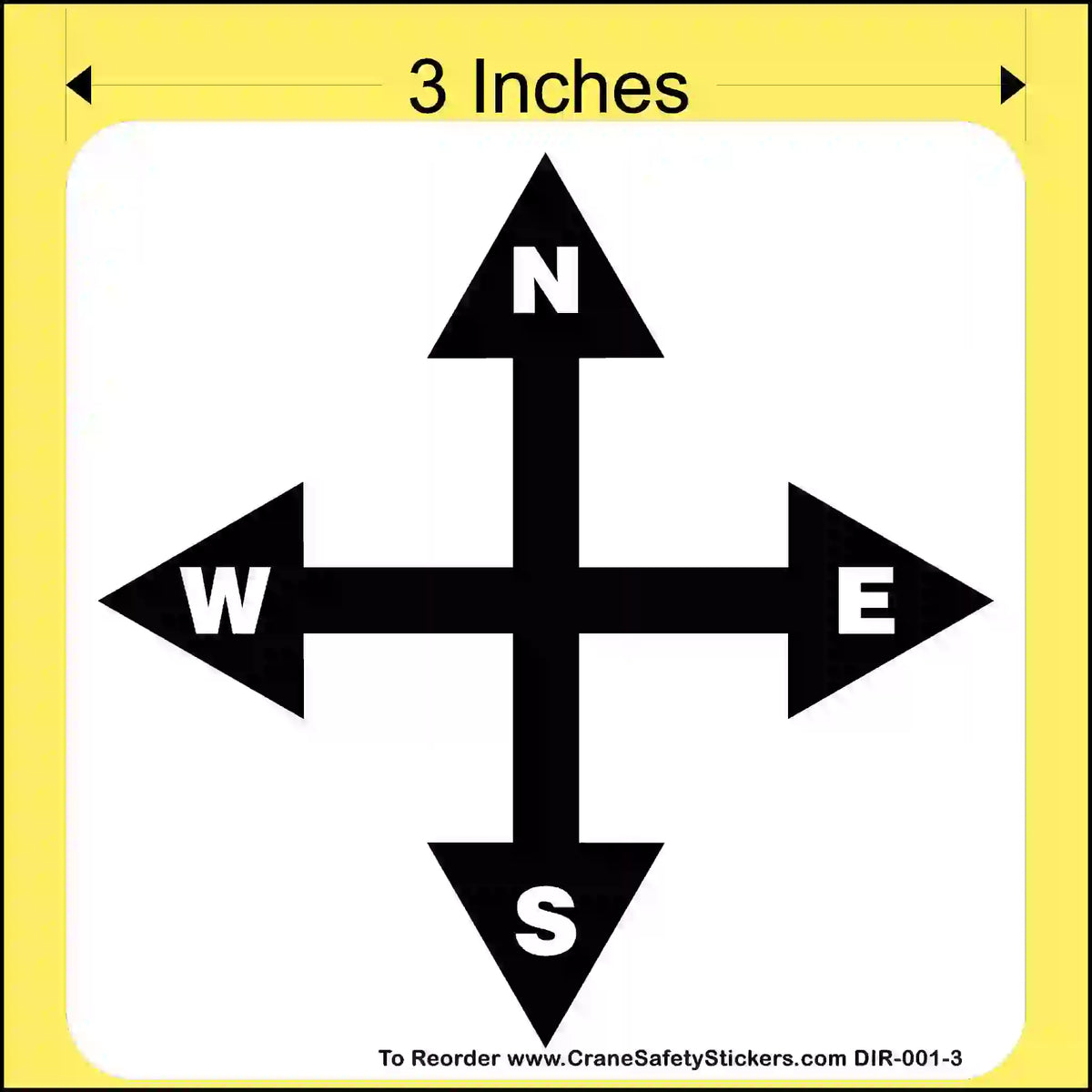

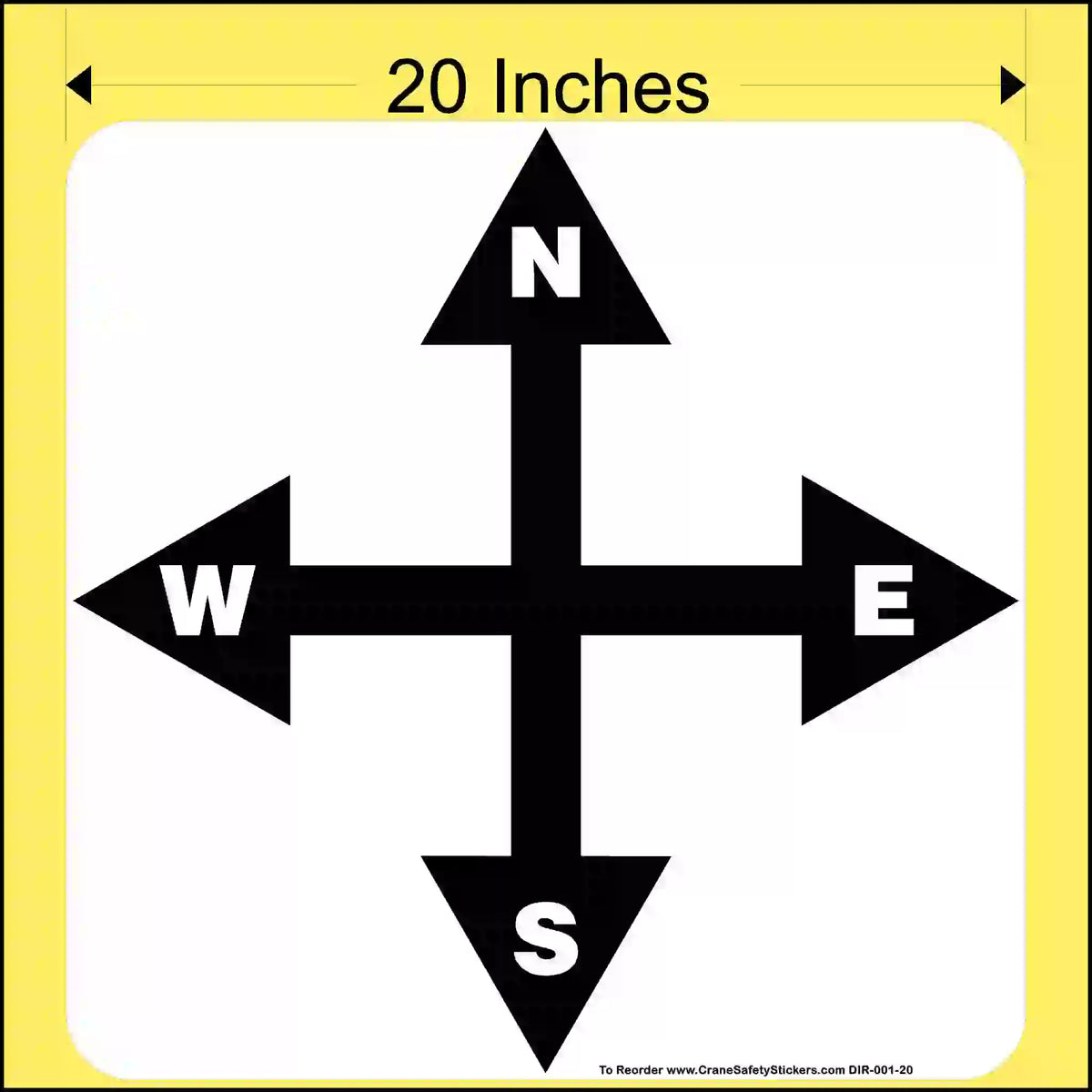

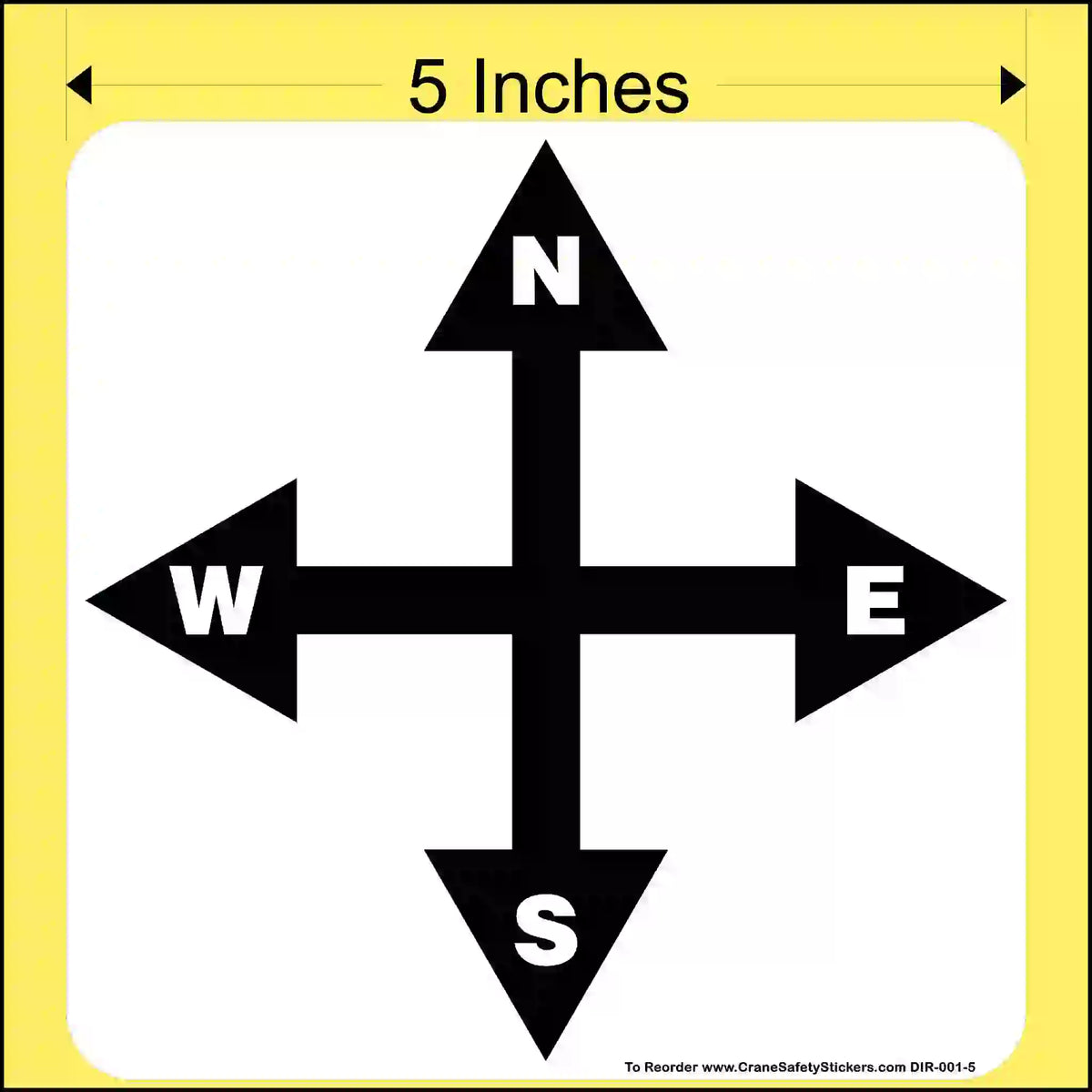

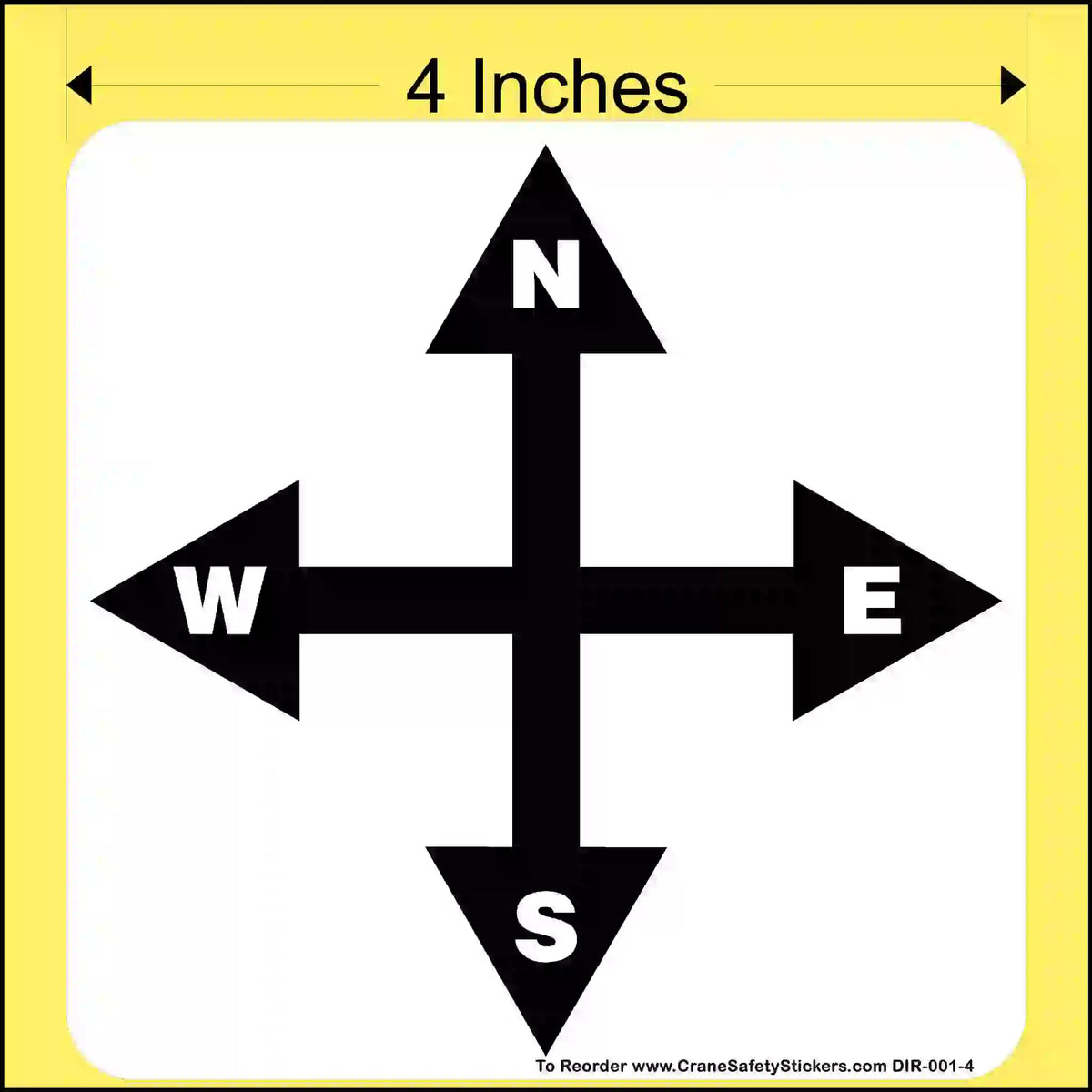

The DIR-010 Crane Directional Sticker Set provides high-visibility "N", "S", "E", and "W" legends on a pre-spaced, single-sheet compass rose configuration for overhead crane structures. Available in stock square sizes from 5 to 24 inches, this unified layout eliminates manual letter alignment and leveling to ensure precise quadrant placement during a single installation. The high-contrast yellow-on-blue design establishes a direct, unambiguous correlation between operator pendant inputs and actual crane travel to prevent directional errors on the shop floor.

Model Specifications

• Part Number: DIR-010 Series
• Legends Included: "N", "S", "E", "W" (printed on a single sheet)
• Physical Dimensions: Available in the following stock square sizes:
  • 5 inches (DIR-010-5)
  • 6 inches (DIR-010-6)
  • 7 inches (DIR-010-7)
  • 8 inches (DIR-010-8)
  • 12.5 inches (DIR-010-12.5)
  • 14 inches (DIR-010-14)
  • 20 inches (DIR-010-20)
  • 24 inches (DIR-010-24)
• Color Configuration: High-contrast yellow on blue

Directional Control Identification and Visual Orientation Standards

To satisfy facility safety audits, crane directional markings must comply with specific operational standards. The DIR-010 series fulfills these design requirements, providing the necessary visual references to ensure operators can quickly verify planned travel paths against active controls.

Compliance Standards Met:

• OSHA 29 CFR 1910.179(g)(1)(viii): Requires that control functions must be clearly marked.
• ASME B30.2: Dictates that direction-of-travel markings on the crane structure must correspond to the markings on the operator's controller.

These directional indicators establish the primary reference point for both bridge and trolley travel, preventing orientation confusion in industrial environments. The high-contrast layout ensures immediate identification, mitigating operational errors during heavy lifts.

Guidelines for Decal Placement and Surface Application

Adhesive performance and legibility depend on proper surface preparation. Before application, the target metal surface on the hoist, trolley, or bridge structure must be cleaned, degreased, and completely dried. Applying a pre-spaced, single-sheet compass rose minimizes installation alignment errors, as all four directional points mount simultaneously without requiring individual letter leveling. Mounting the decal on a flat, rigid surface prevents edge-lifting and premature wear from mechanical contact.

Correct positioning is required to maintain compliance. The decal must be installed on the side of the crane bridge or the underside of the crane components to ensure clear line-of-sight from the operator's station. Markings must align precisely with the operator's pendant or radio control configuration so that commanded travel directions match the physical movement indicated on the overhead structure.

Compatible Systems:

• Overhead bridge cranes
• Gantry crane systems
• Monorail hoist networks
