Overhead Crane Directional Decals: Ensure Safety & Compliance

The directional compass decal can be mounted on the underside of the crane bridge flange for clear visibility from the ground. It can also be placed on the crane trolley or hoist housing, or near the hoist hook to align directly with pendant or remote controls. Ensure the orientation of the N, S, E, and W markers accurately matches the physical layout of your facility.

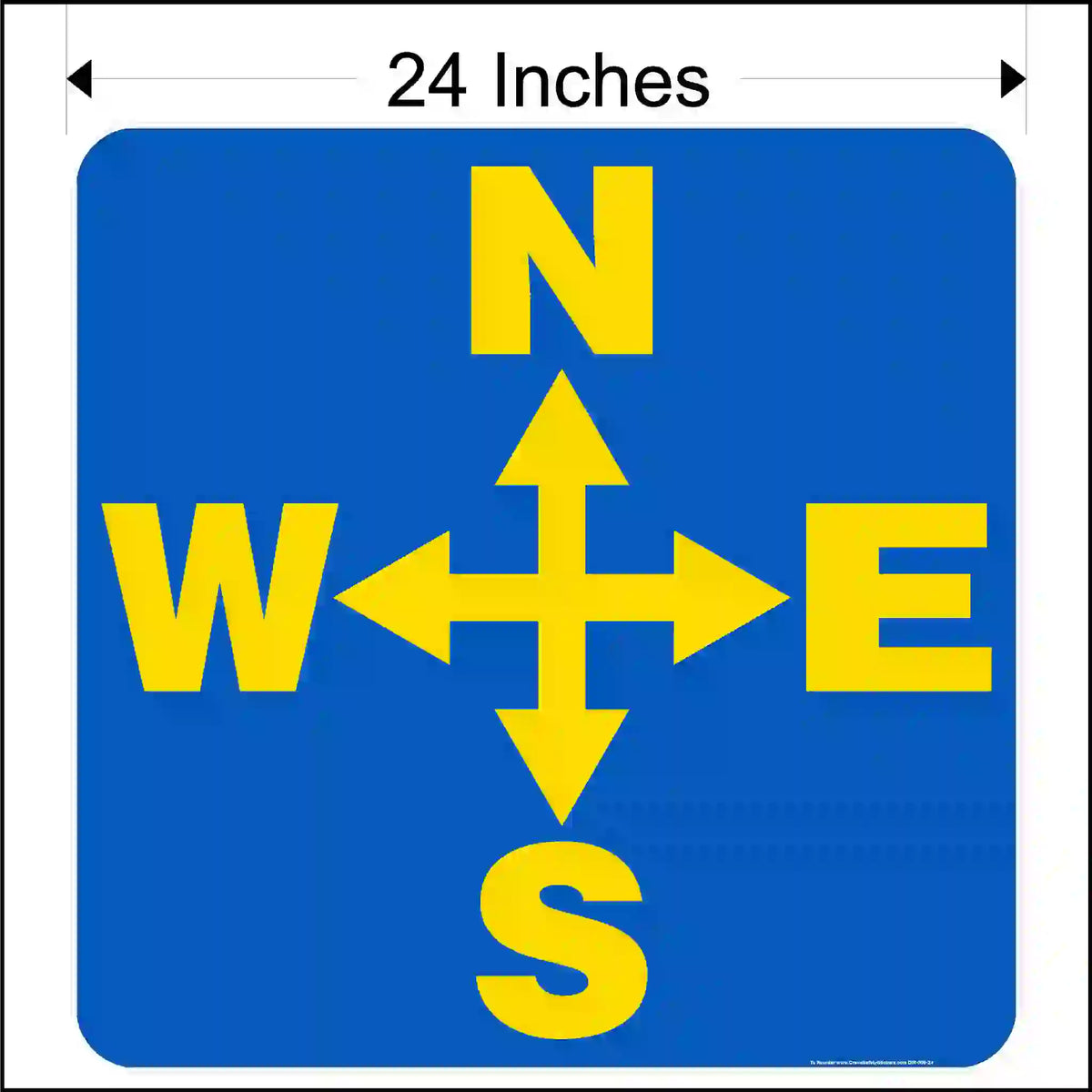

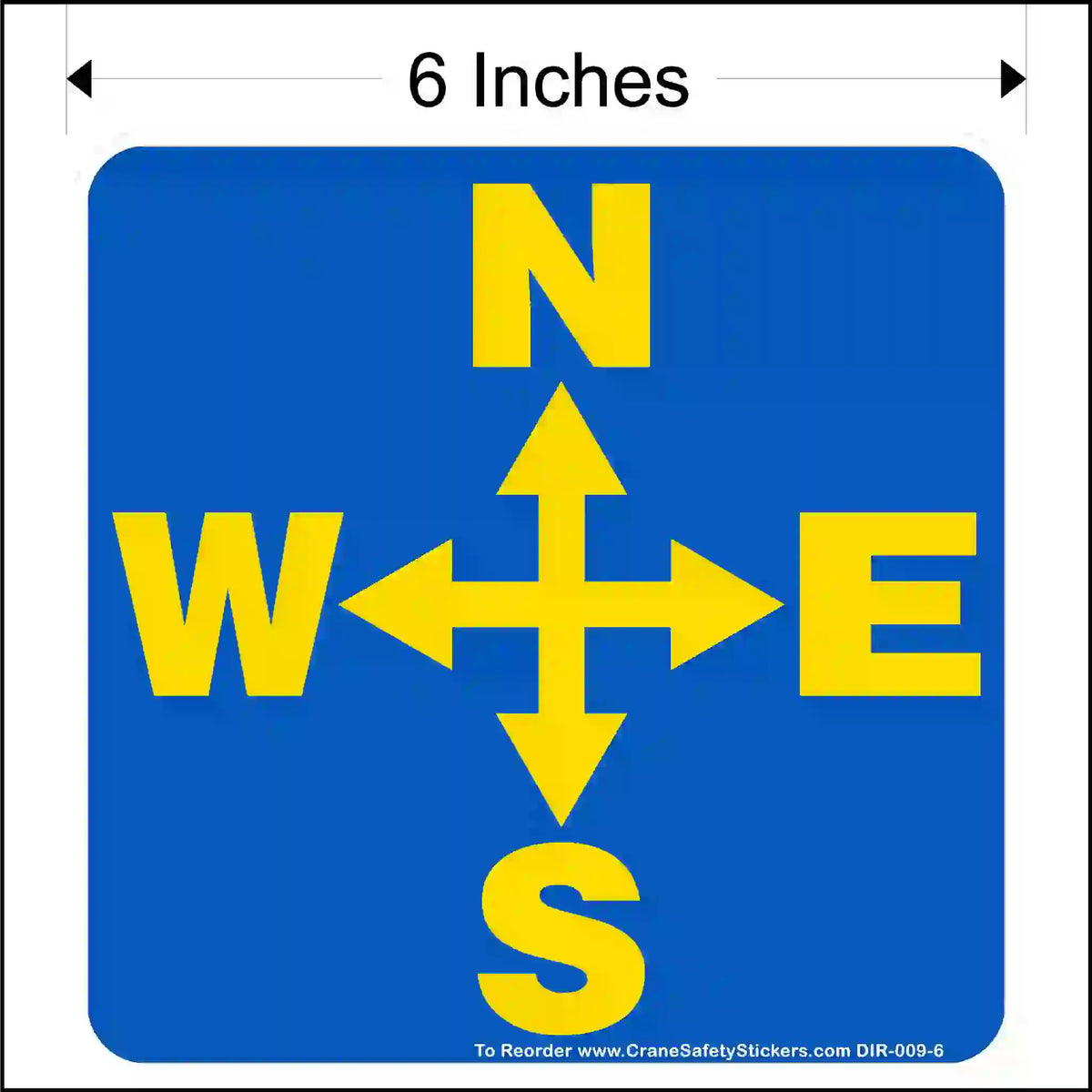

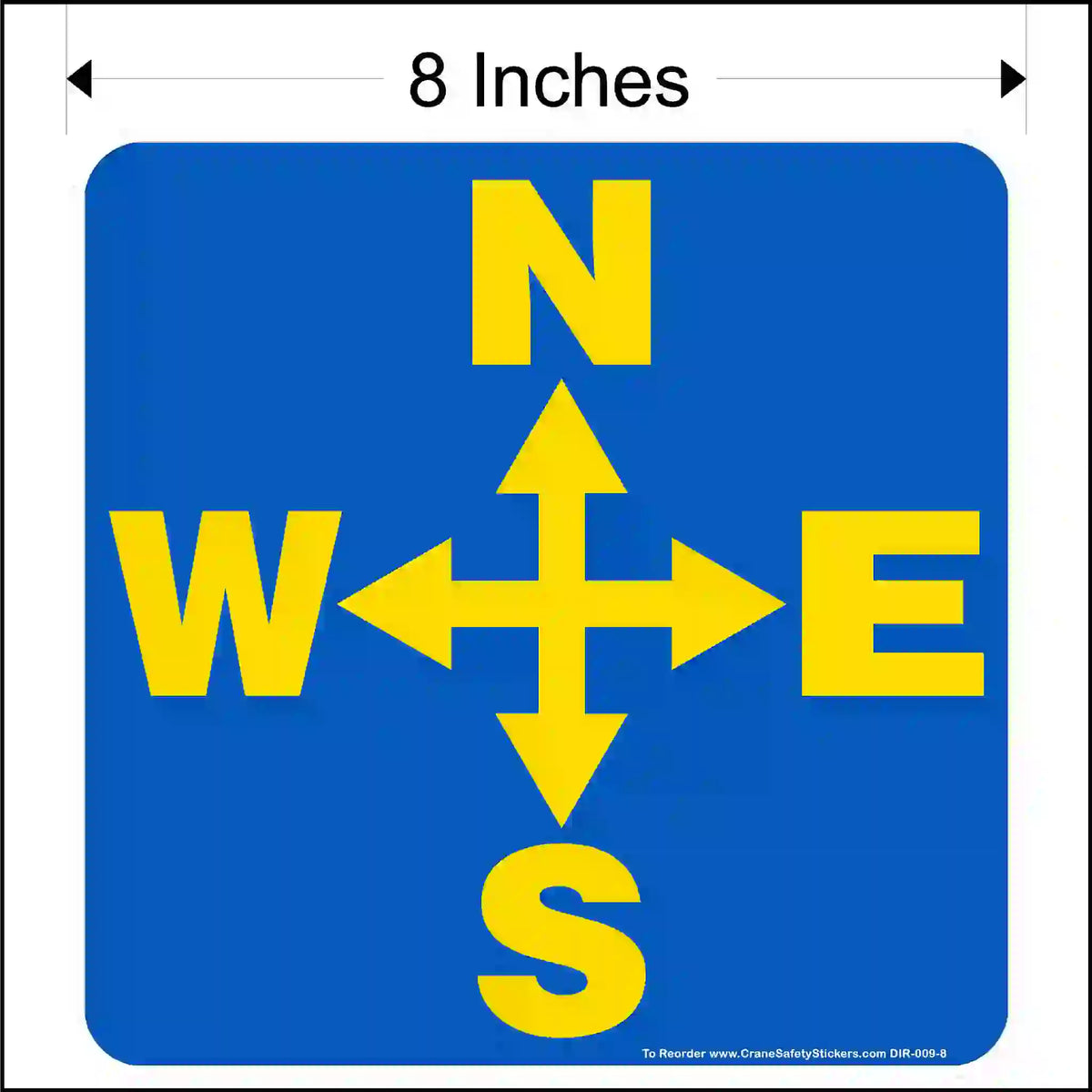

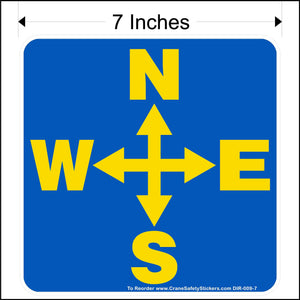

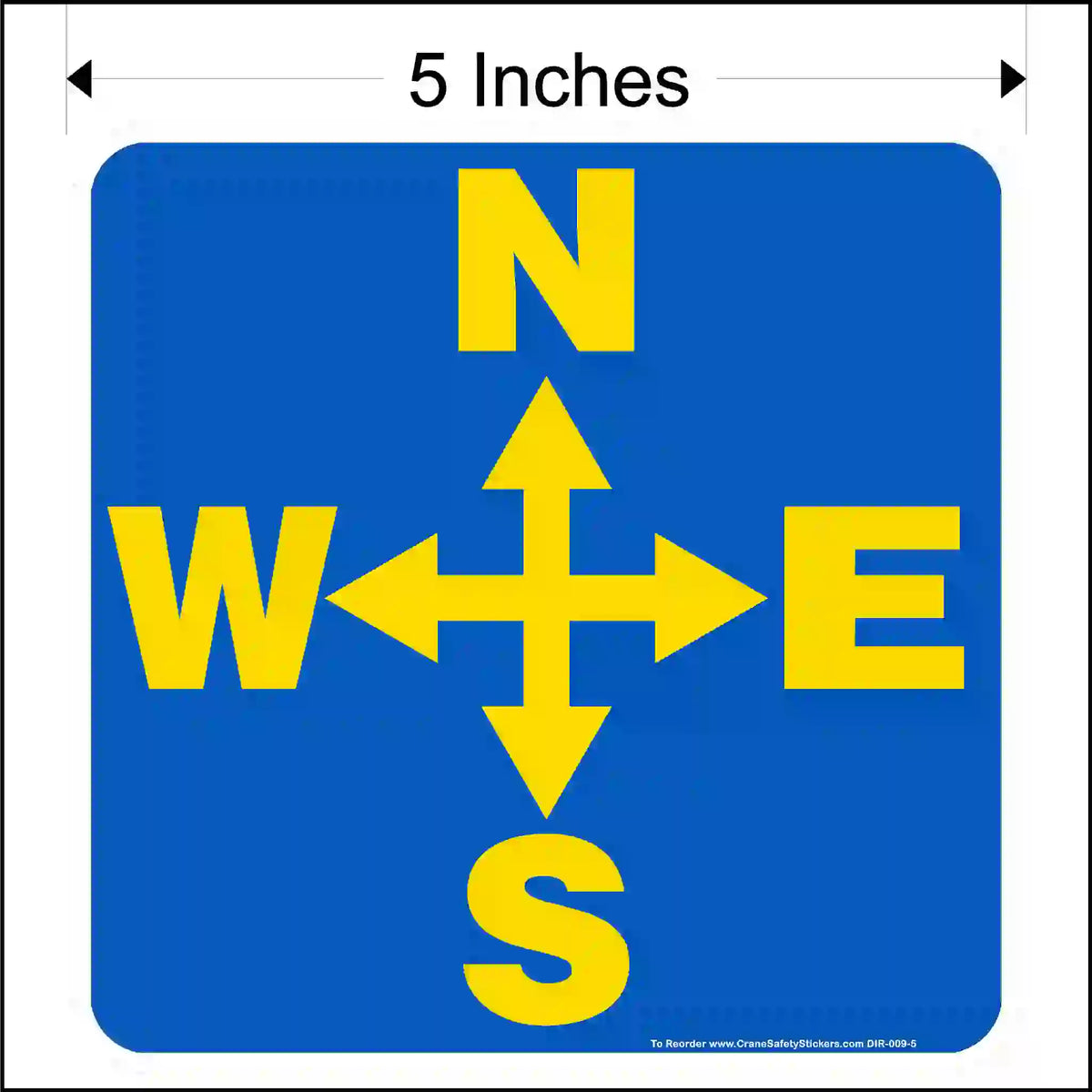

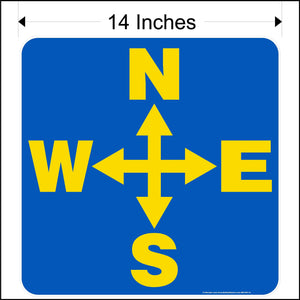

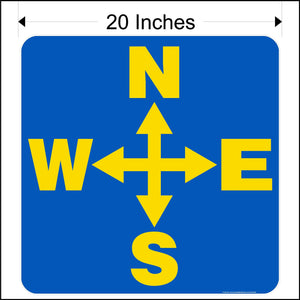

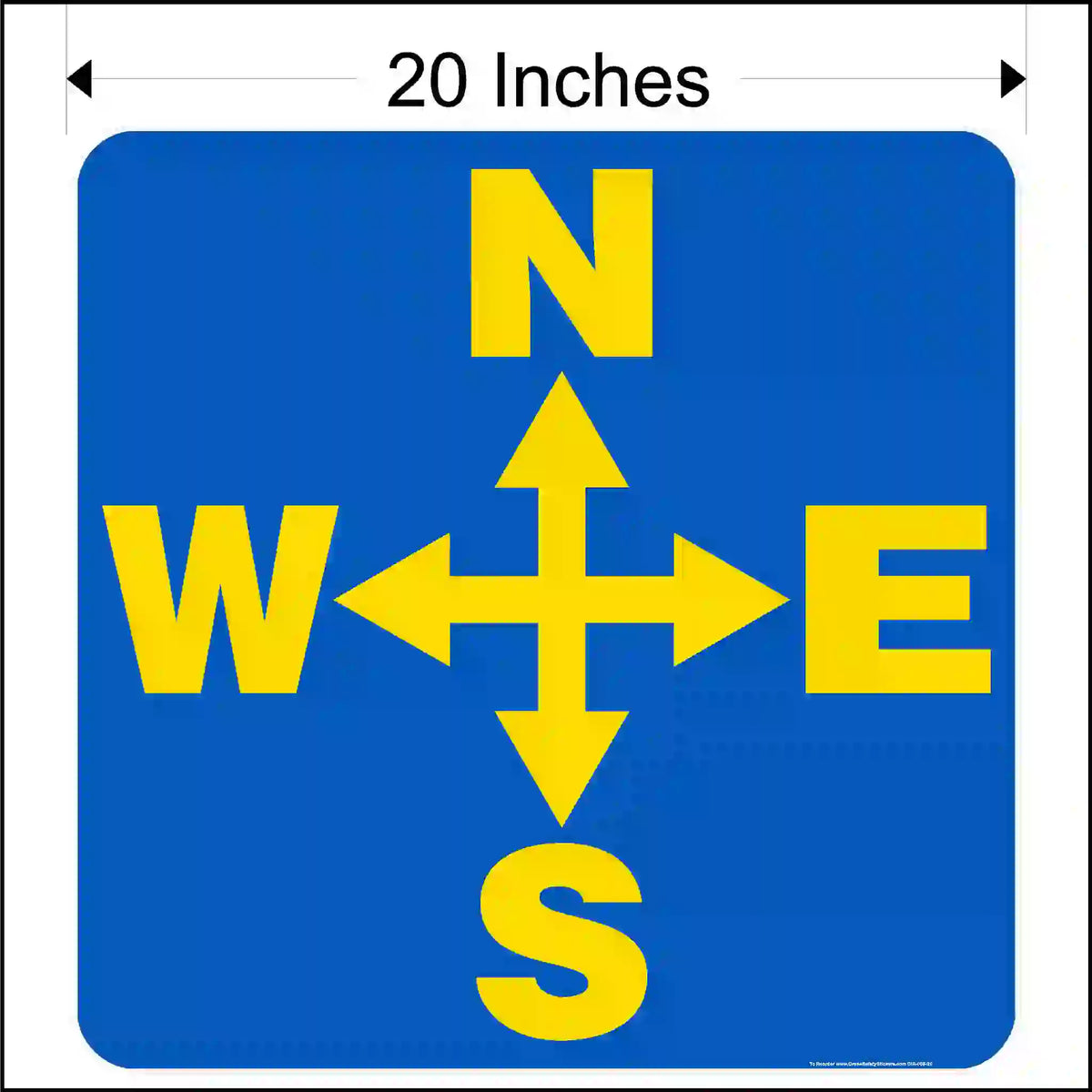

It marks both bridge and trolley travel directions. The four-way intersecting arrow graphic coupled with the N, S, E, and W markers corresponds directly with both movement axes of your crane. This dual-axis visual cue helps operators align their control inputs with the physical travel of the crane components.

This directional compass decal is compatible with several industrial crane types. Specifically, it is used on Overhead Cranes, Bridge Cranes, Gantry Cranes, and Monorail Cranes.

When posting travel directions, you must ensure that the N, S, E, and W markers accurately align with the physical layout of your facility and the handset control button legends. The decal should be placed in a highly visible area, such as near the hoist hook or on the underside of the bridge flange. This helps operators cross-reference their controller with the physical movement directions.

Yes, a Bridge Crane is one of the confirmed compatible hosts for this directional compass decal. It is typically mounted on the underside of the bridge flange or on the trolley housing. This ensures clear ground-level visibility and precise control alignment for the operator.

The purpose of this decal is to clearly communicate physical crane movements (North, South, East, and West) to ground operators. By providing unambiguous directional guidance, it reduces operator errors, prevents accidents, and increases operational safety.

OSHA 1910.179 and ASME B30.2 require clear marking of crane controls and directional movements to ensure safe operations. Faded, unclear, or missing indicators create ambiguity, which increases the risk of accidents and operator errors. Installing compliant directional decals helps satisfy these safety standards.

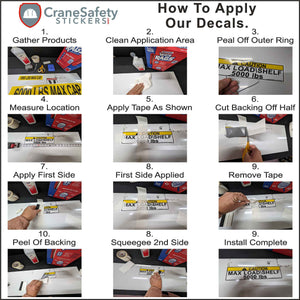

These safety stickers should be installed on the underside of the crane bridge flange for maximum ground-level visibility. Alternatively, they can be mounted on the trolley, hoist housing, or near the hoist hook. Always verify that the cardinal directions align perfectly with the physical layout of the facility and handset controls before finalizing installation.

Yes, faded, unclear, or missing directional indicators frequently lead to operator errors and misinterpretations of the controls. Such mistakes can result in serious workplace accidents, equipment damage, and costly operational downtime. Clear visual indicators eliminate ambiguity to maintain a safe working environment.

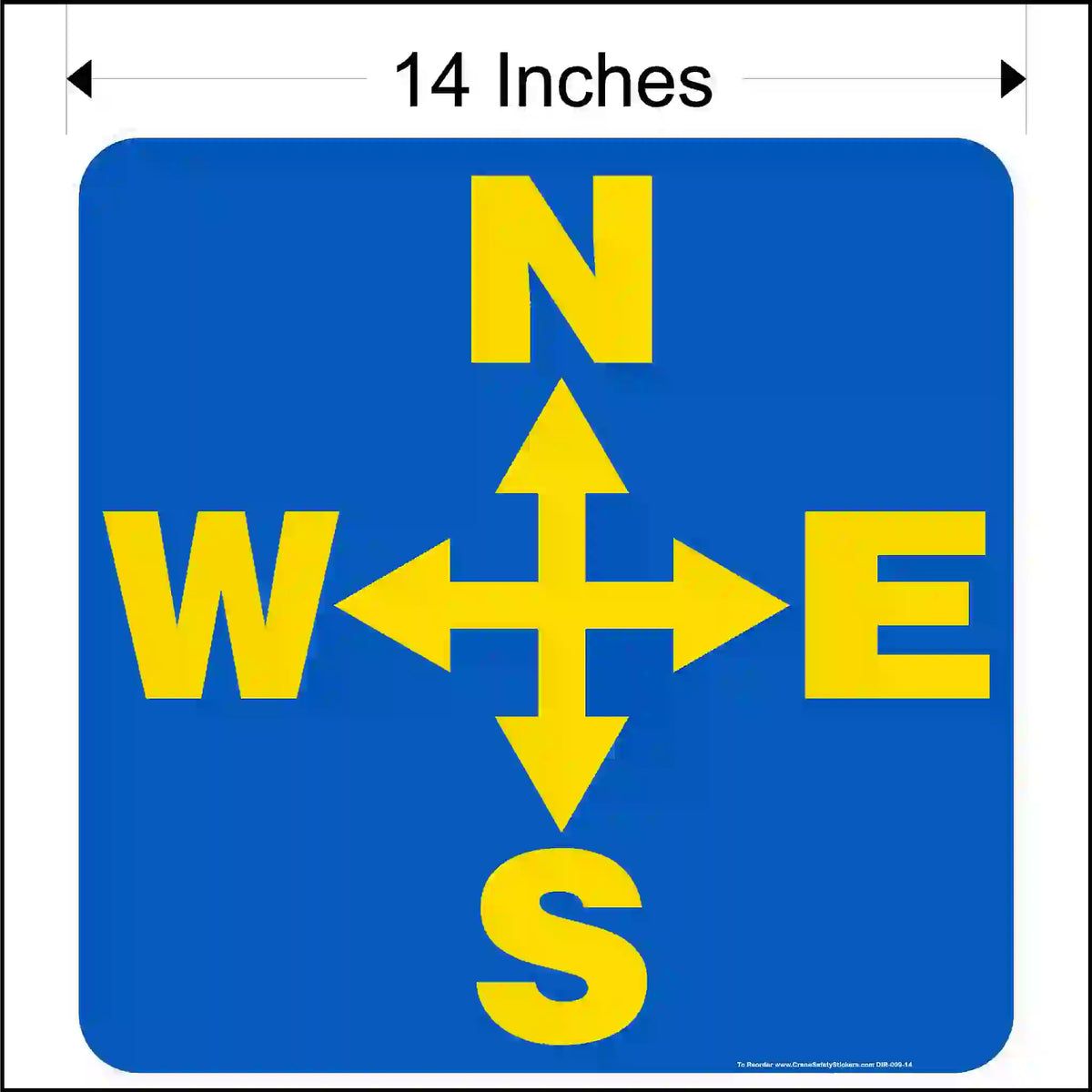

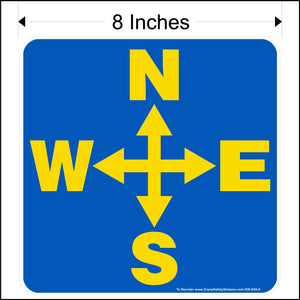

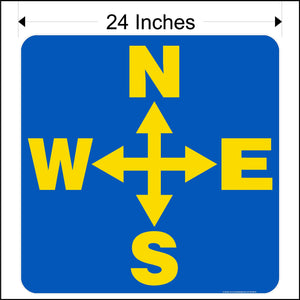

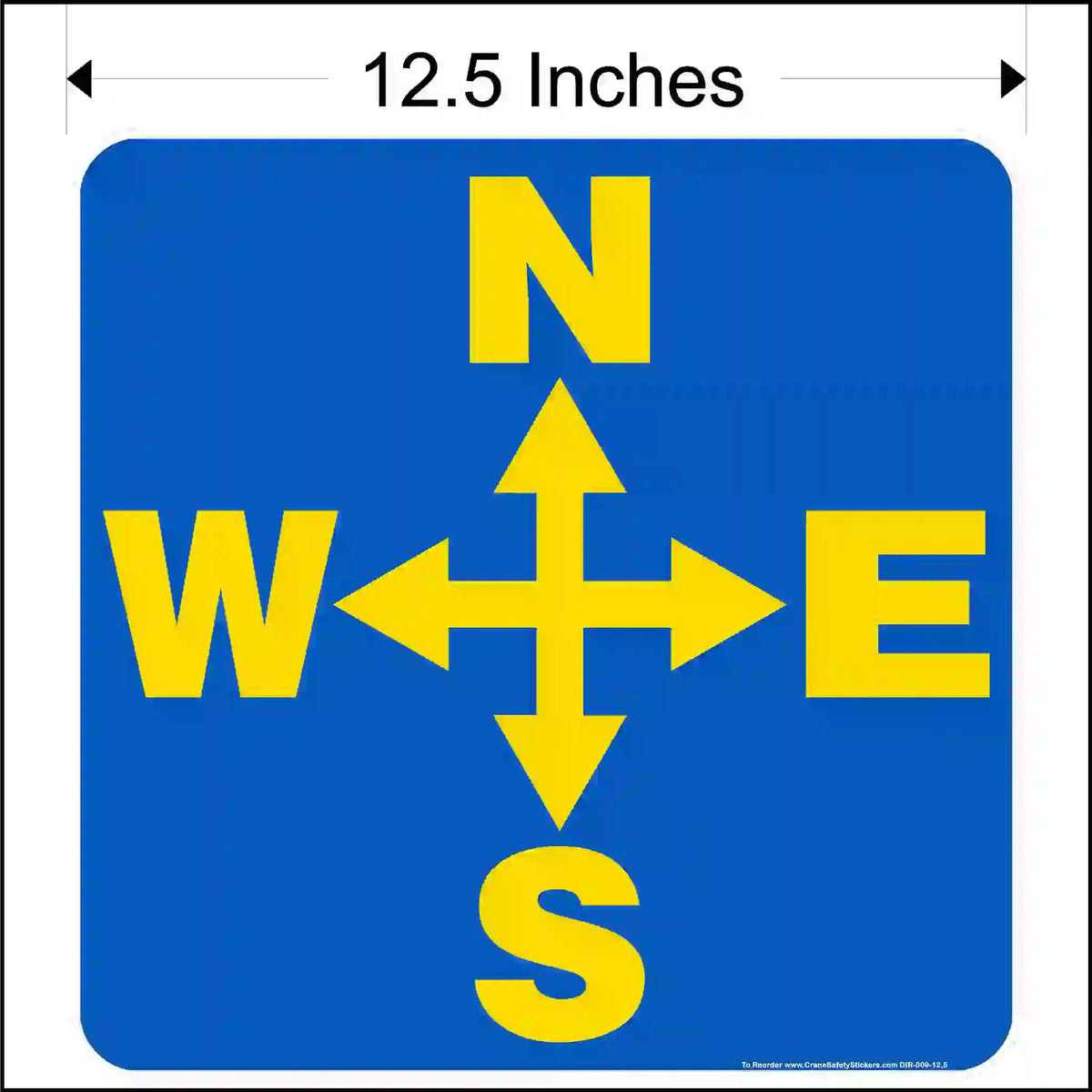

The N, S, E, and W markers communicate the cardinal directions of North, South, East, and West, while the intersecting arrows represent the four directions of travel. This layout allows operators to quickly identify the crane's movement axes and align them with the handset controller buttons. It translates the abstract controls into physical movement directions on the shop floor.

No, using directional decals does not replace the necessity of formal operator training. While these stickers provide critical on-the-spot visual cues to prevent errors, operators must still undergo comprehensive safety training. The decals serve as an important supportive tool to reinforce safe operation procedures.
