Overhead Crane Directional Stickers: Avoid Costly Accidents

The directional safety decal should be mounted on a clean, dry, and grease-free surface on the underside of the crane bridge, girder, or trolley structure. Mounting on the bottom side instead of the side of the bridge ensures the decal is highly visible to operators working on the ground. This specific placement facilitates safe and intuitive navigation from the shop floor.

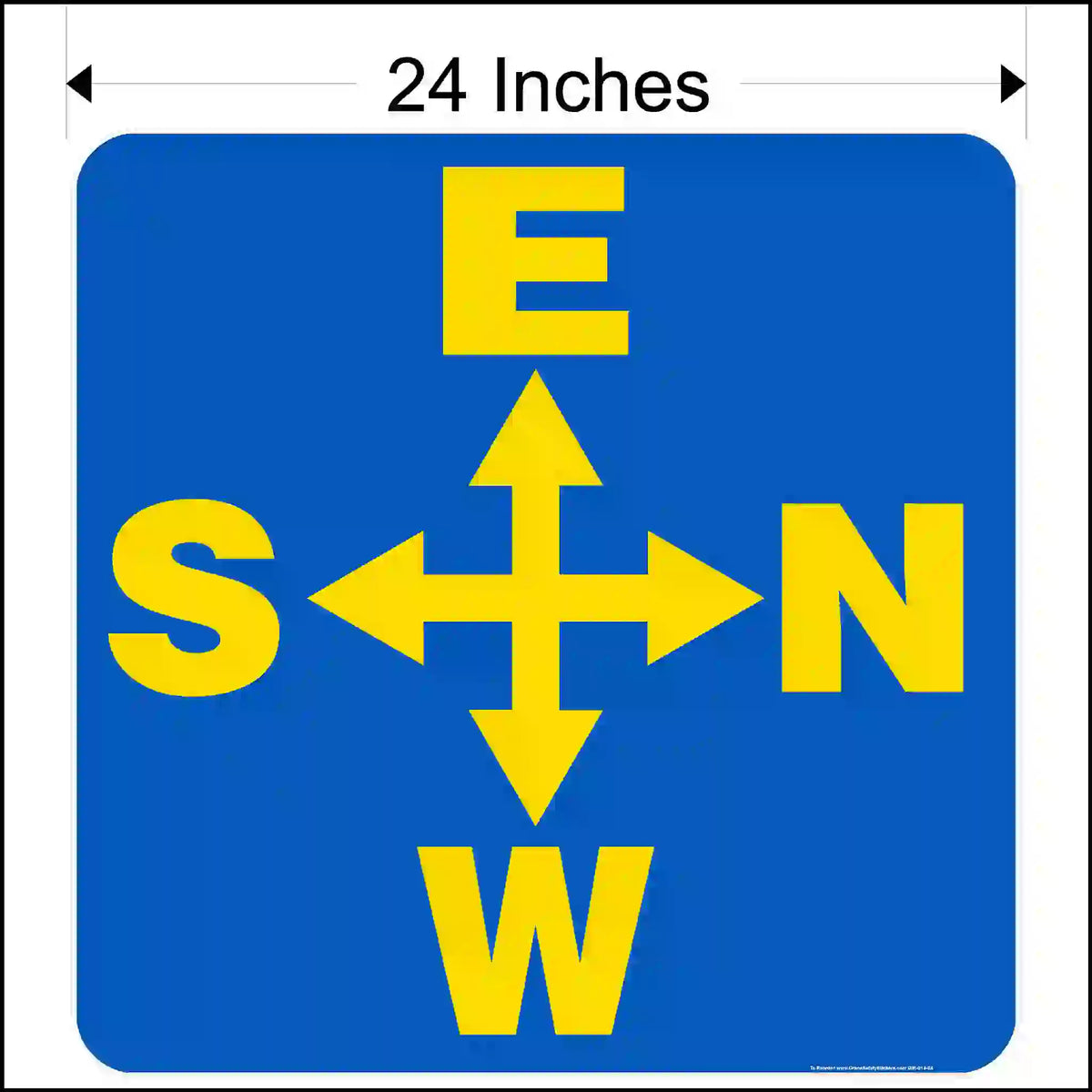

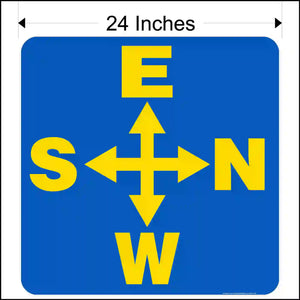

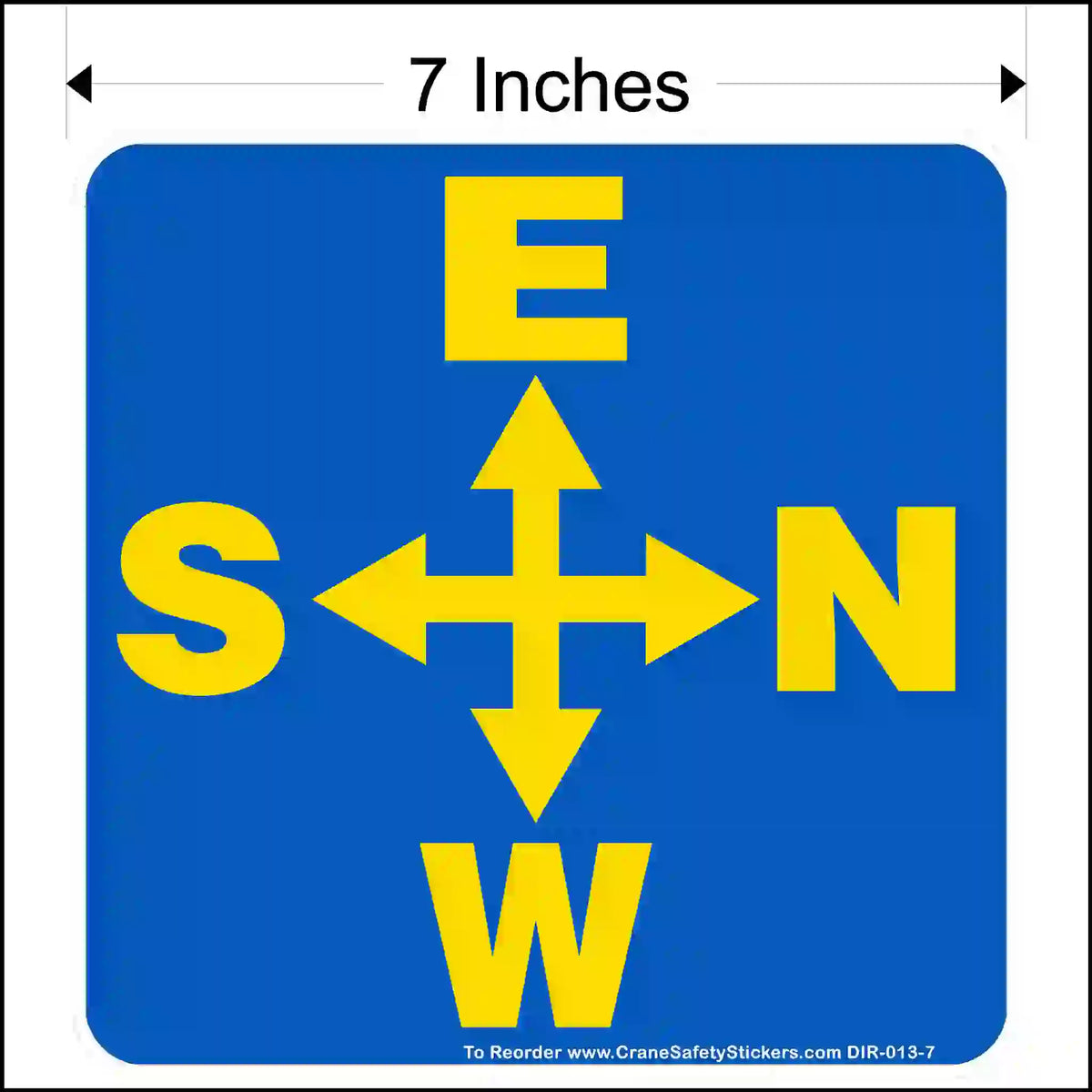

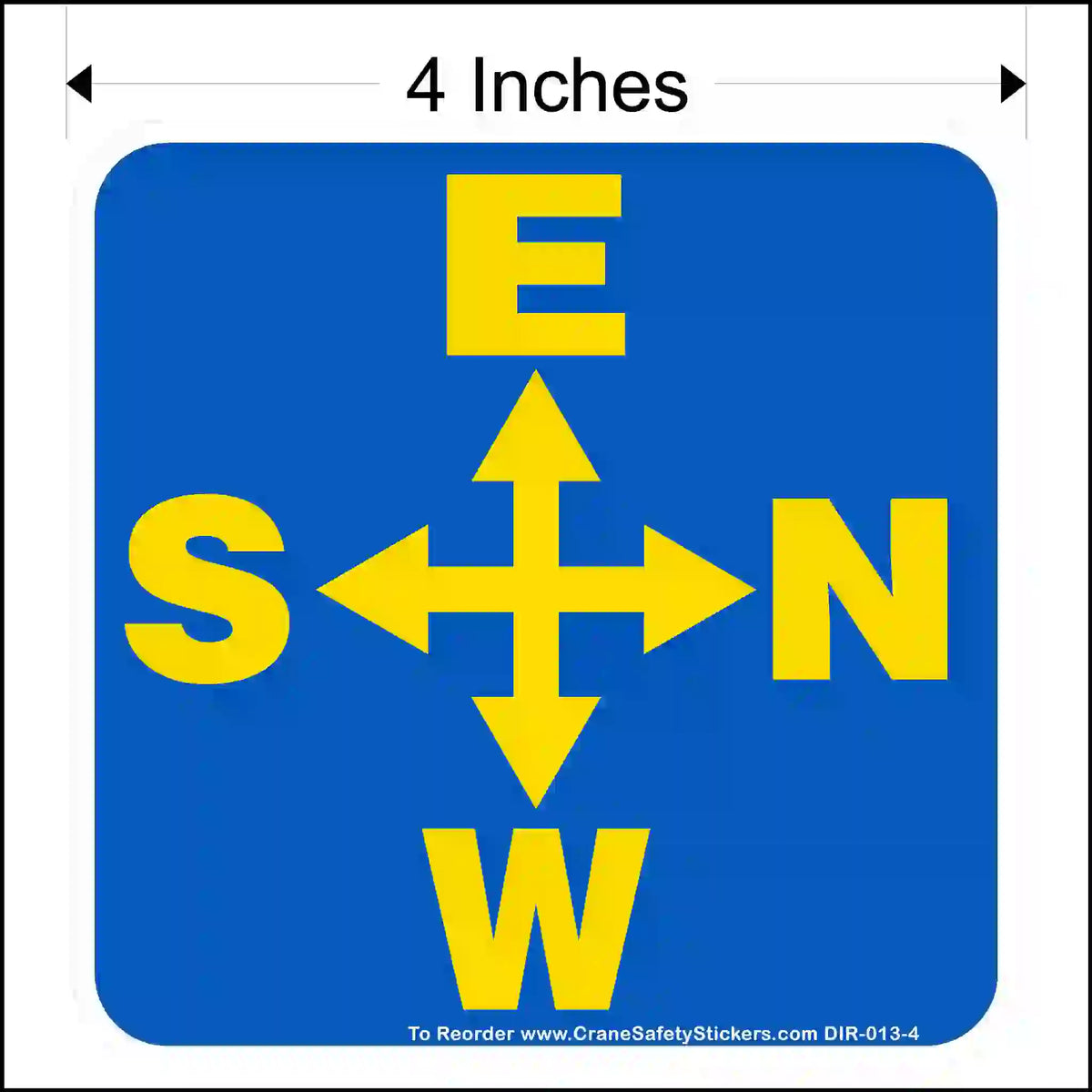

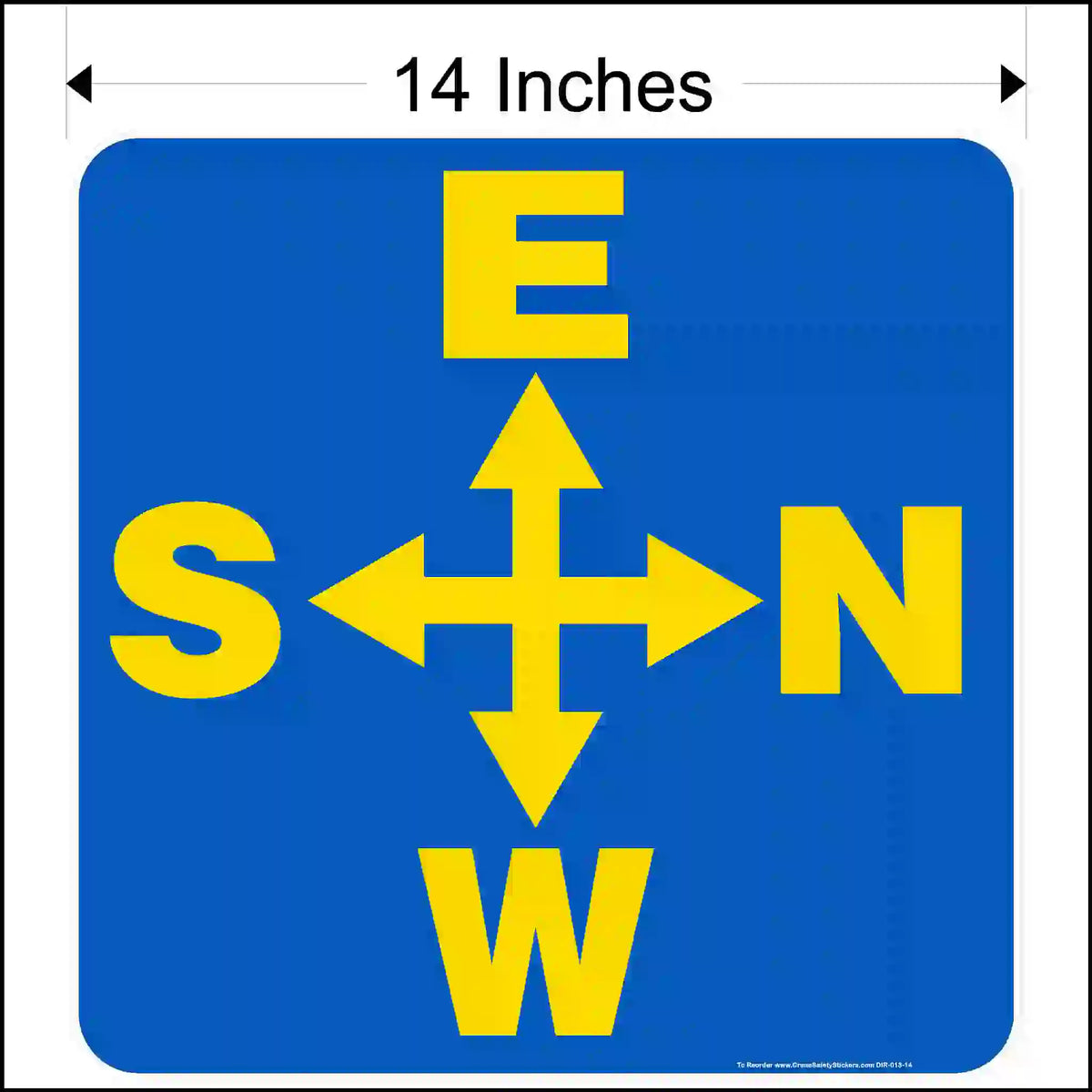

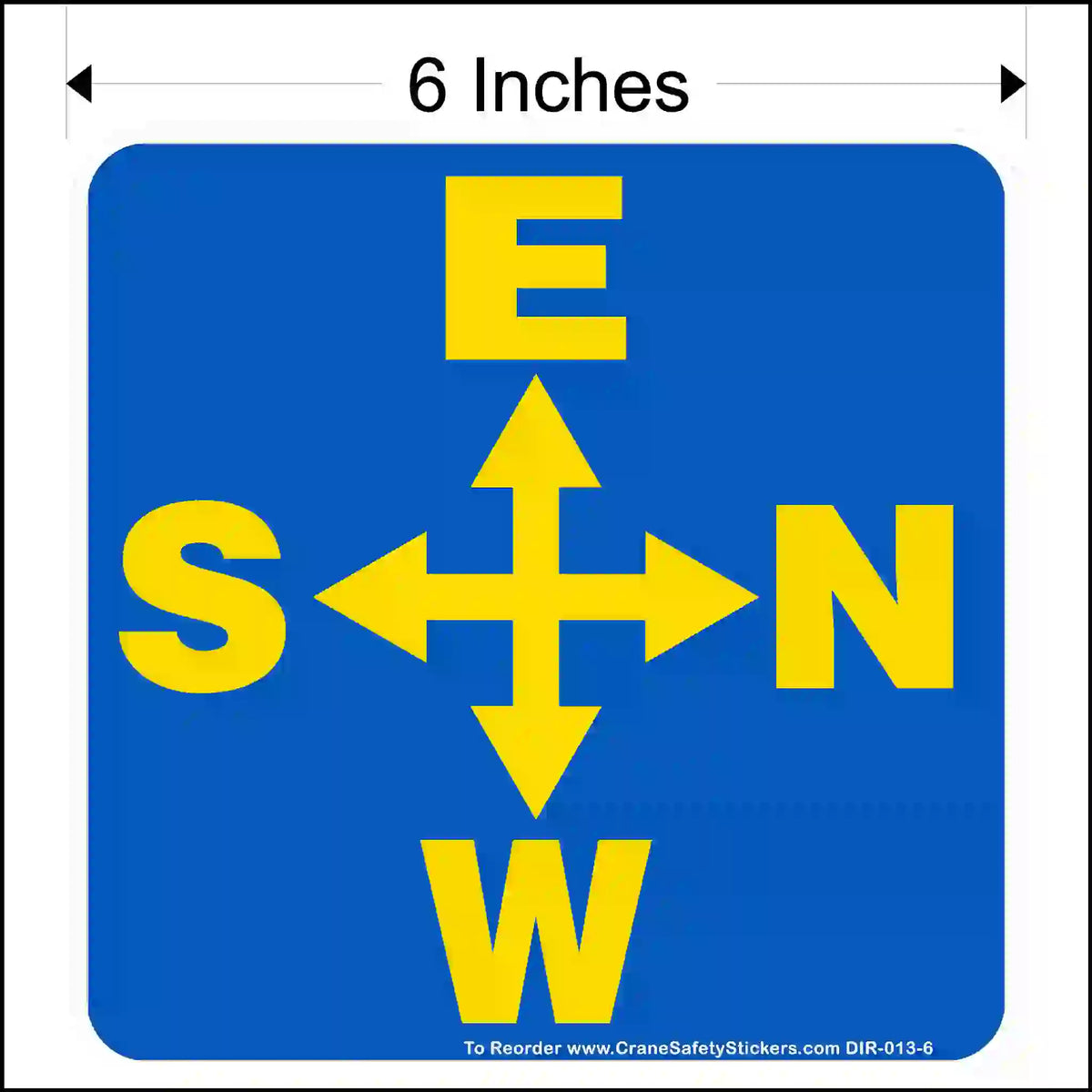

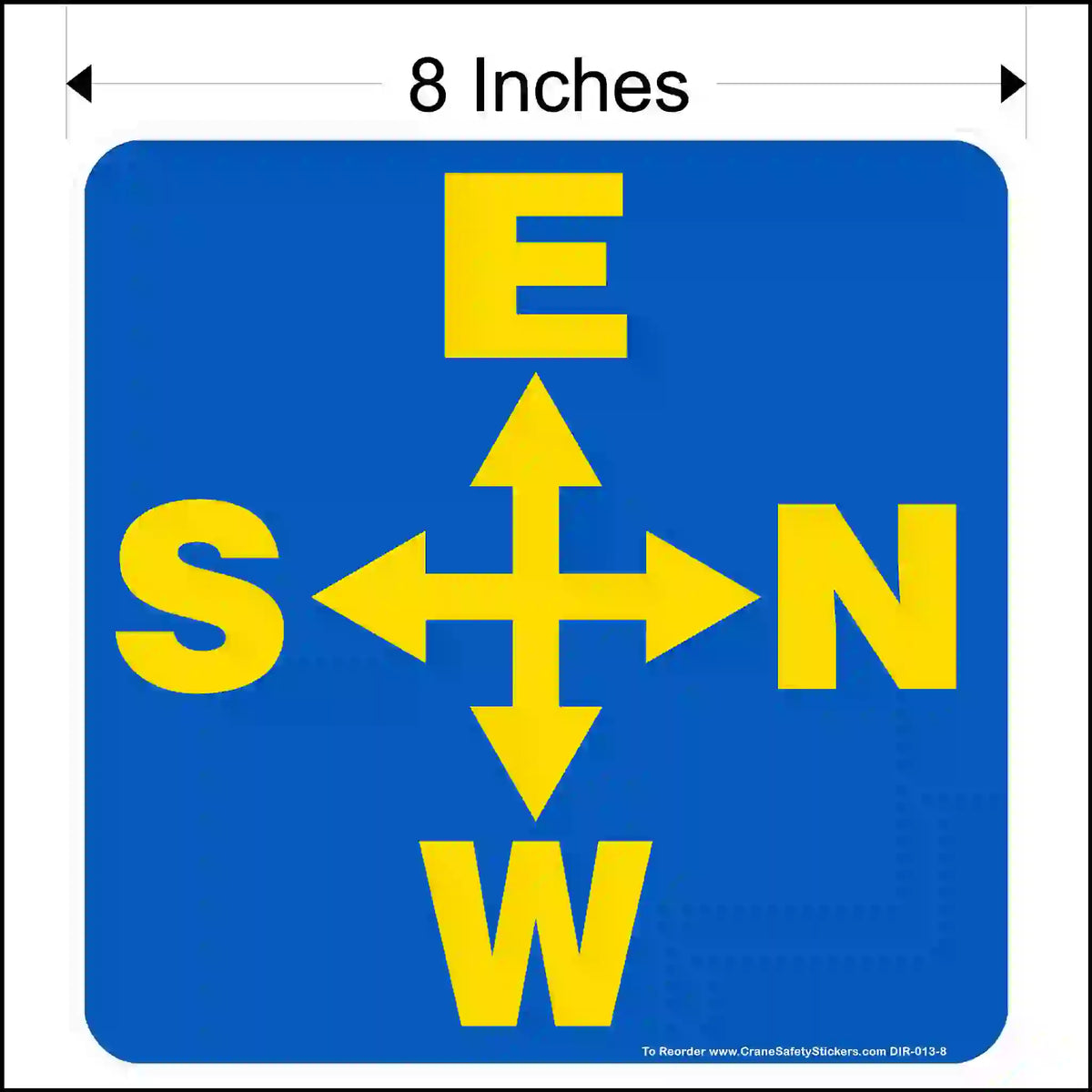

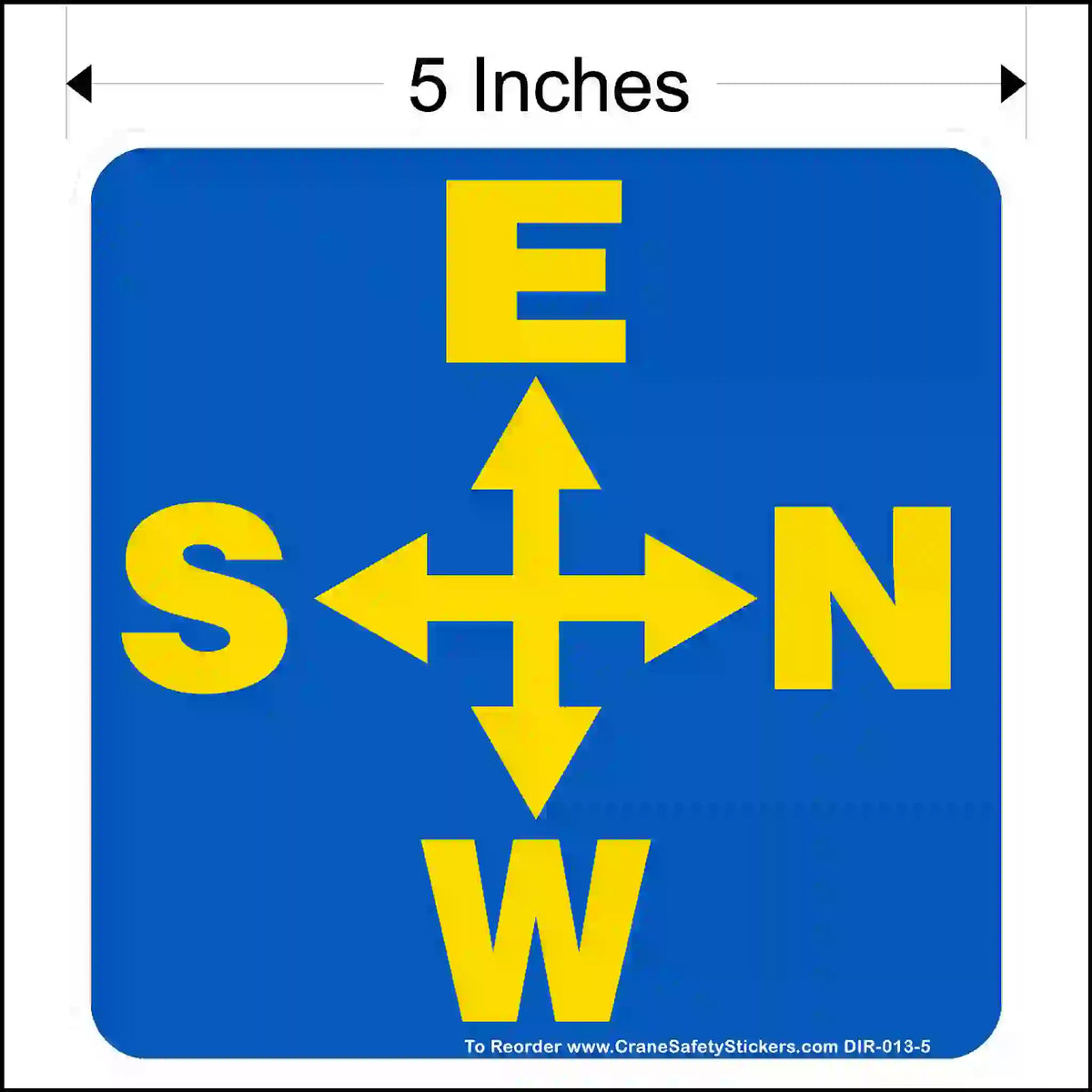

This directional safety decal marks both bridge and trolley travel by displaying the cardinal directions (North, South, East, West) around a central four-point arrow. When mounted to the underside of the crane structure, it helps the operator safely navigate both longitudinal and lateral movements of the crane. This dual-axis guidance is critical for preventing load swing and steering confusion.

This safety decal is designed for overhead bridge cranes, gantry cranes, powered bridge cranes, and trolley hoists. It can be applied to any of these compatible configurations to give operators a clear frame of reference. Ensuring your specific crane type has these visible markings helps maintain safe and compliant operations.

When mounting this decal, you must ensure the North, South, East, and West cardinal directions precisely align with the actual physical travel directions of the crane. Additionally, these directions must perfectly correspond to the directional buttons on the operator's control pendant or wireless transmitter. Verifying this correct layout is essential for meeting ANSI B30.2 and OSHA 1926.1416 compliance standards.

Yes, this directional safety decal is fully compatible with gantry cranes. It should be applied to the underside of the gantry girder or trolley structure on a clean, grease-free surface. This position ensures that ground operators can clearly read the cardinal directions and move loads safely.

While directional labels improve safety on any system, standards such as OSHA 1926.1416 and ANSI B30.2 strictly mandate clear control and directional markings on powered bridge crane systems. Utilizing these high-visibility decals on your powered bridge cranes ensures your facility stays compliant with federal safety guidelines. Installing them on non-powered systems is also highly recommended to minimize any operator confusion.

The best place to install these stickers is on the bottom side of the crane, specifically on the underside of the bridge, girder, or trolley structure. This high-visibility location ensures the cardinal direction markings are easily legible from the shop floor. Avoid mounting them on the side of the bridge where they might be obscured or difficult for the operator to view directly.

Using cardinal directions provides a fixed, objective reference point for crane operators and floor personnel. This eliminates the confusion often caused by relative terms like 'left' or 'right,' which change depending on which way the operator is standing. Standardizing crane travel to North, South, East, and West ensures clear, unambiguous communication during heavy lifting operations.

These decals prevent accidents by giving operators immediate, highly visible confirmation of the crane's direction of travel. Without clear markings, an operator under pressure might misinterpret controls, causing a load to swing unexpectedly and damage equipment or injure personnel. Clear directional markers eliminate this confusion, reducing the risk of fatal operator errors and streamlining overall workplace productivity.

Yes, but they must be carefully aligned during installation to do so. You must orient the decal so that the N-S-E-W directions precisely match the directional buttons on the operator's wireless transmitter or control pendant. Verifying this layout during mounting ensures the operator's physical remote commands translate accurately to the crane's movements.

No, these directional decals are intended to support, not replace, thorough operator safety and training programs. While the decals help meet ANSI B30.2 and OSHA 1926.1416 requirements, operators must still be fully trained on crane safety and control systems. For comprehensive job site safety, consider pairing these decals with other training tools such as hand signal charts.

The primary audience includes overhead crane operators, safety managers, and facility supervisors working in industrial environments. They are especially critical for new, temporary, or visiting crane operators who need instant visual confirmation to safely navigate the facility's crane systems. Safety managers also use these decals to ensure compliance with OSHA and ANSI standards on the shop floor.
