I-022
Mobile crane operation demands rigorous adherence to safety protocols, and the secure deployment and transport of outrigger beams are paramount. Failing to comply with OSHA 1910.179 and ASME B30.5 standards can lead to catastrophic accidents, hefty fines, and, most importantly, preventable injuries or fatalities. This product reinforces critical safety procedures, ensuring your team operates within regulatory guidelines.
Prevent Unintended Deployment: Securely pinned outrigger beams eliminate the risk of accidental extension during travel, protecting personnel and equipment from potential collisions and instability.
Reinforce Regulatory Compliance: Clearly marked reminders and instructions help your team adhere to OSHA 1910.179 and ASME B30.5 standards, minimizing the risk of costly fines and ensuring successful inspections.
Promote a Culture of Safety: Visible safety measures reinforce best practices, fostering a proactive safety culture and reducing the likelihood of human error.
Increase Operational Efficiency: Streamlined procedures and readily available reminders ensure that safety checks are performed quickly and consistently, improving overall efficiency without compromising safety.
Reduce Liability and Protect Assets: By implementing this essential safety measure, you are demonstrably prioritizing safety, thereby mitigating liability and safeguarding your company's assets.
Imagine a scenario: a mobile crane is being moved to a new job site. A bump in the road causes an unpinned outrigger beam to unexpectedly extend. The consequences could be devastating – damage to the crane, injury to nearby workers, or worse.
The problem is clear: failing to properly secure outrigger beams during travel creates a significant safety hazard.
Our comprehensive safety solutions are designed to eliminate this risk. From highly visible warning stickers to detailed training materials, we provide everything you need to ensure that outrigger beams are always properly pinned and anchored, preventing accidents and ensuring compliance. Our systems meet and exceed standards for crane operation safety, with clear reminders to keep crews safe.
An outrigger beam is a structural component of a mobile crane, extending laterally from the crane's chassis to provide stability during lifting operations. These beams, which can be box beam or telescopic, increase the crane's base of support, allowing it to handle heavier loads without tipping. Different outrigger configurations (fully extended, intermediate, retracted) affect the crane's load capacity, as outlined in the crane's load chart.
ASME B30.5, specifically addresses the necessity of securing outrigger beams during transit. Pins or other locking mechanisms prevent the beams from unintentionally extending, which could cause accidents, collisions, or instability. Ensuring outrigger beams are pinned for travel is not just a best practice; it is a mandatory safety requirement.
Beyond pinning for travel, outrigger beams must be properly anchored during operation to distribute the crane's load safely. This involves using appropriately sized outrigger pads to increase the surface area and reduce ground bearing pressure. The ground must be capable of supporting the crane's weight, and soil testing may be necessary in questionable conditions. Failure to properly anchor outrigger beams can lead to ground failure and crane tip-over.
Failure to pin outrigger beams can result in accidental deployment, leading to collisions, damage to equipment, and potential injuries. More critically, it violates ASME B30.5 and OSHA 1910.179 standards, exposing your company to significant fines and legal liability.
The required size and material of outrigger pads depend on the crane's load, the outrigger footprint, and the ground bearing capacity. Consult the crane's load chart and conduct a soil analysis to determine the appropriate pad size to distribute the load effectively and prevent ground failure.
The primary regulations governing outrigger beam safety are found in OSHA 1910.179 (Overhead & Gantry Cranes) and, more comprehensively, in ASME B30.5 (Mobile and Locomotive Cranes). These standards outline requirements for inspection, operation, and maintenance, including specific guidelines for outrigger usage and securement.

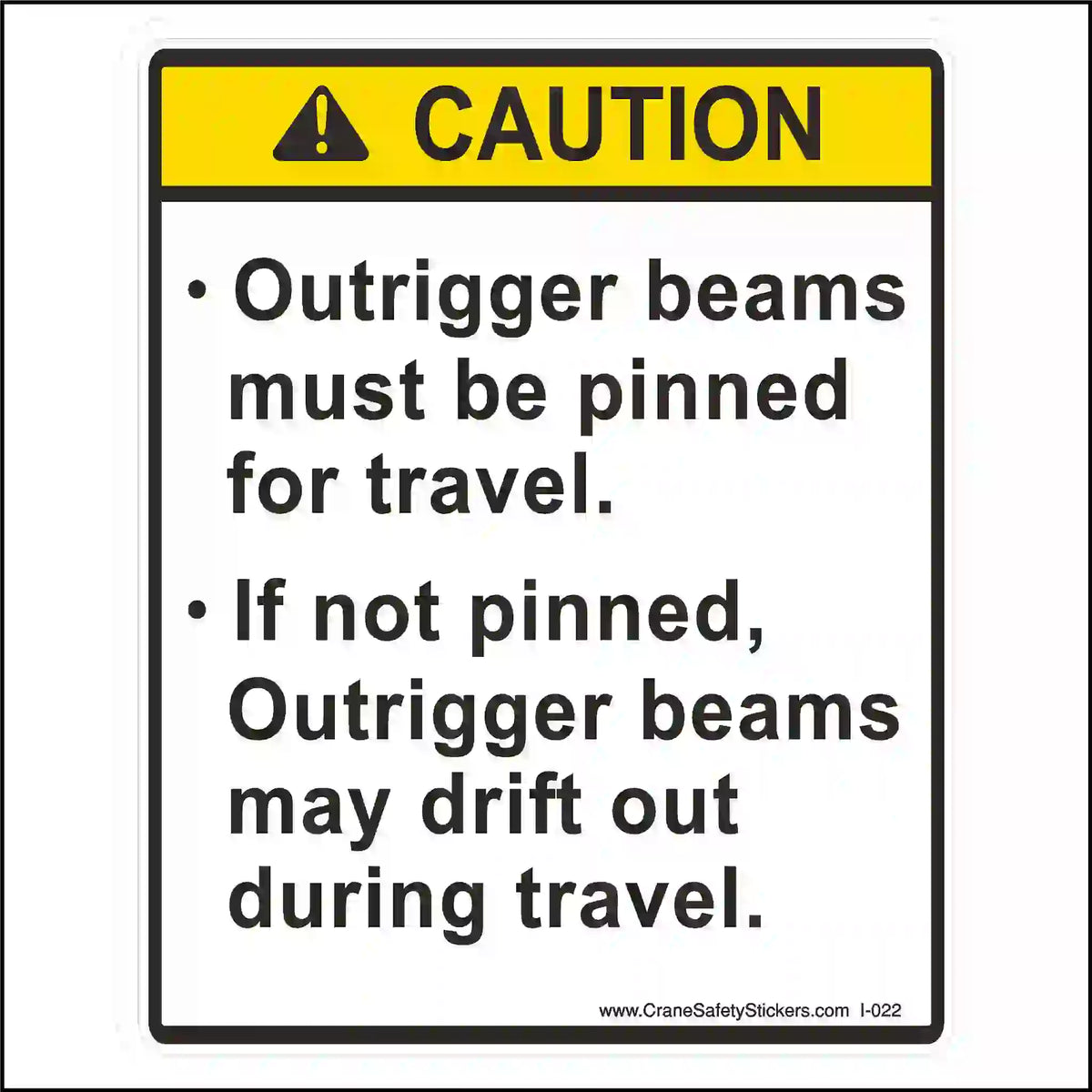

CAUTION Outrigger beams must be pinned for travel. If not pinned, Outrigger beams may drift out during travel.
Place these safety stickers where it is highly visible to your crane operator. This will help ensure that each outrigger gets pinned before moving the crane.
This Crane Outrigger Stickers size is 4 inches wide by 5 inches tall.
Our Outrigger crane safety stickers are created, printed, cut, and shipped in the USA.
