BA-003
You know, running a crane company isn't just about iron and cable; it's about precision, safety, and keeping those OSHA inspectors happy. And let's be honest, those generic boom angle indicator stickers? They peel, fade, and look unprofessional faster than you can say "load chart." That's money down the drain and a potential safety hazard.
Long-Lasting Durability, Real Cost Savings: Our Crane Boom Angle Indicator Decals are made with heavy-duty, UV and weather-resistant vinyl, designed to withstand years of harsh conditions, saving you the cost of frequent replacements.
Crystal-Clear Visibility, Enhanced Safety: High-contrast, easy-to-read markings ensure accurate boom angle readings, even in low-light conditions, contributing to safer lifts and reduced risk of accidents.
OSHA & ASME Compliance, Reduced Liability: Specifically designed to help you meet OSHA 1910.179 and ASME B30 requirements for crane operation, minimizing the risk of fines and ensuring a compliant worksite.
Professional Appearance, Improved Reputation: A clean, professional-looking crane reflects well on your company, demonstrating your commitment to safety and quality workmanship. No more faded, peeling stickers that scream "cheap."
Easy Installation, Minimal Downtime: Simple peel-and-stick application allows for quick and easy installation, minimizing downtime and getting your cranes back to work faster.
Those flimsy, generic boom angle indicator stickers that come standard? They're a problem waiting to happen. They fade in the sun, peel in the rain, and become illegible in no time. This leads to inaccurate readings, potentially dangerous lifts, and a constant drain on your maintenance budget. Plus, they look unprofessional.
Our Crane Boom Angle Indicator Decals are engineered for the real world. We use heavy-duty, UV-resistant vinyl that can withstand the elements. The markings are clear and easy to read, ensuring accurate boom angle readings every time. They're designed to last, saving you money on replacements and keeping your cranes looking professional. Furthermore, they are a crucial component in adhering to guidelines set forth in OSHA 1910.179 and ASME B30. These decals, in conjunction with regular crane inspections, help maintain a safe working environment. Remember, these decals are an *aid*, not a replacement for a properly functioning Rated Capacity Indicator (RCI) and Anti-Two Block (A2B) system. Always consult your crane load chart to verify safe operating parameters based on boom angle and load radius.
The boom angle, in conjunction with the load radius, is crucial for safe crane operation. Consult the *crane's load chart*. This chart, provided by the crane manufacturer, specifies the maximum allowable load for each combination of boom angle and radius. The boom angle is the angle between the horizontal and the crane boom. The load radius is the horizontal distance from the crane's center of rotation to the load. An inaccurate boom angle reading, whether due to faulty equipment or misinterpretation, could result in overloading the crane, potentially leading to structural failure. Our decals help you get an accurate reading, which is step one. Make sure you understand how to read and apply information from the load chart.
These decals are designed to *assist* in meeting OSHA 1910.179 and ASME B30 requirements related to crane operation and inspection, specifically regarding the clear indication of boom angle. However, they are only one component of overall compliance. It is your responsibility to ensure your cranes meet all applicable regulations, including regular inspections, proper maintenance of safety systems (like the Rated Capacity Indicator), and operator training. Never rely solely on a decal; they should complement properly calibrated electronic systems and trained operator vigilance.
Clean the boom surface thoroughly to remove any dirt, grease, or debris. Peel the backing from the decal and carefully apply it to the designated area. Use a squeegee or similar tool to smooth out any air bubbles and ensure proper adhesion. Consult your crane's manual or a qualified technician for the correct placement location. Improper installation can affect readability and longevity.
These crane angle indicator decals are printed with angles from -10 degrees to 80 degrees. Each decal has a light grey 90-degree placement line for reference to make installation quick and easy. The Blue portion is removable and made to be discarded when applying the decal to the crane boom.

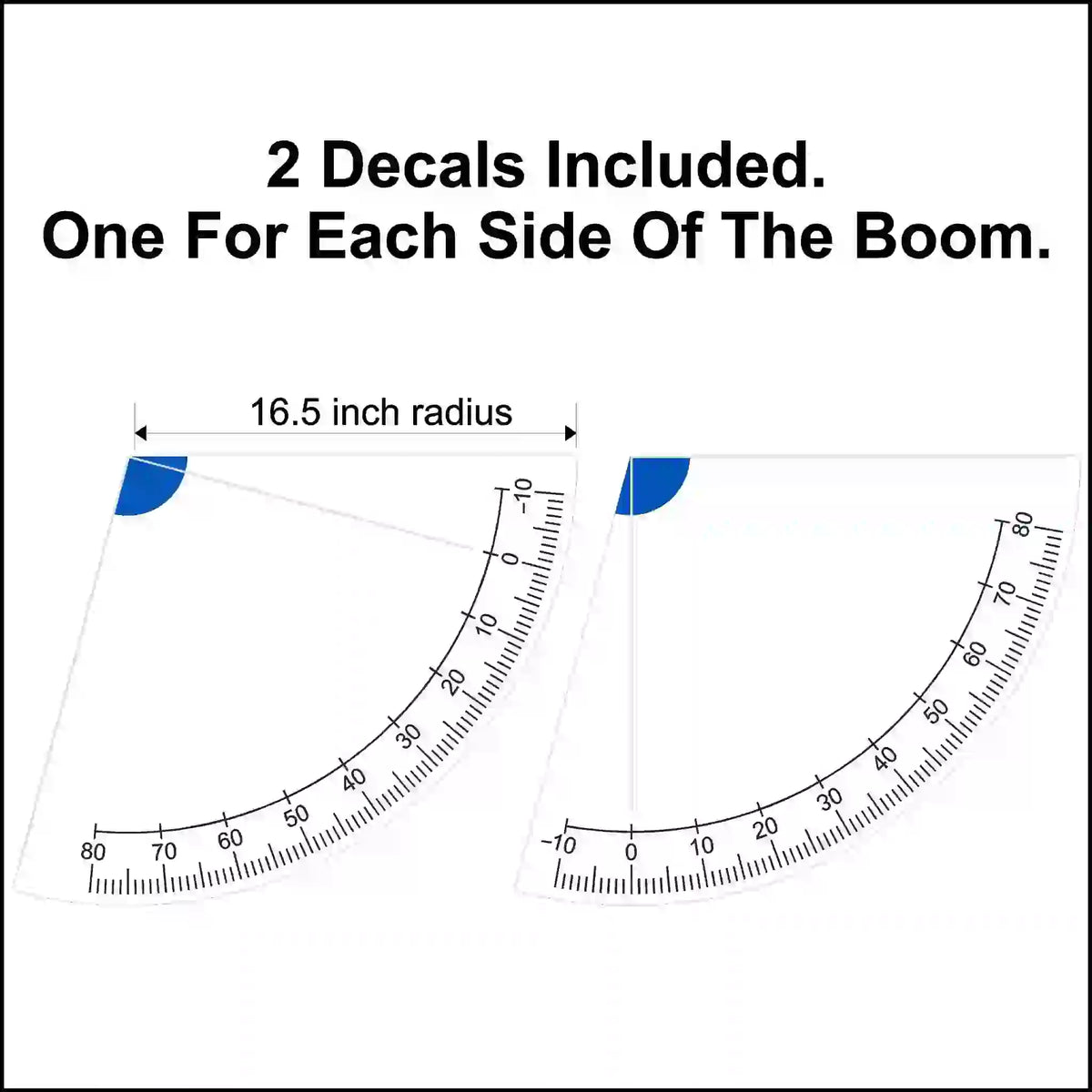

BA-001 Decal Size is FROM The Center Bolt That Holds The Arrow to The Outside (Radius) Is 16 1/2 Inches.

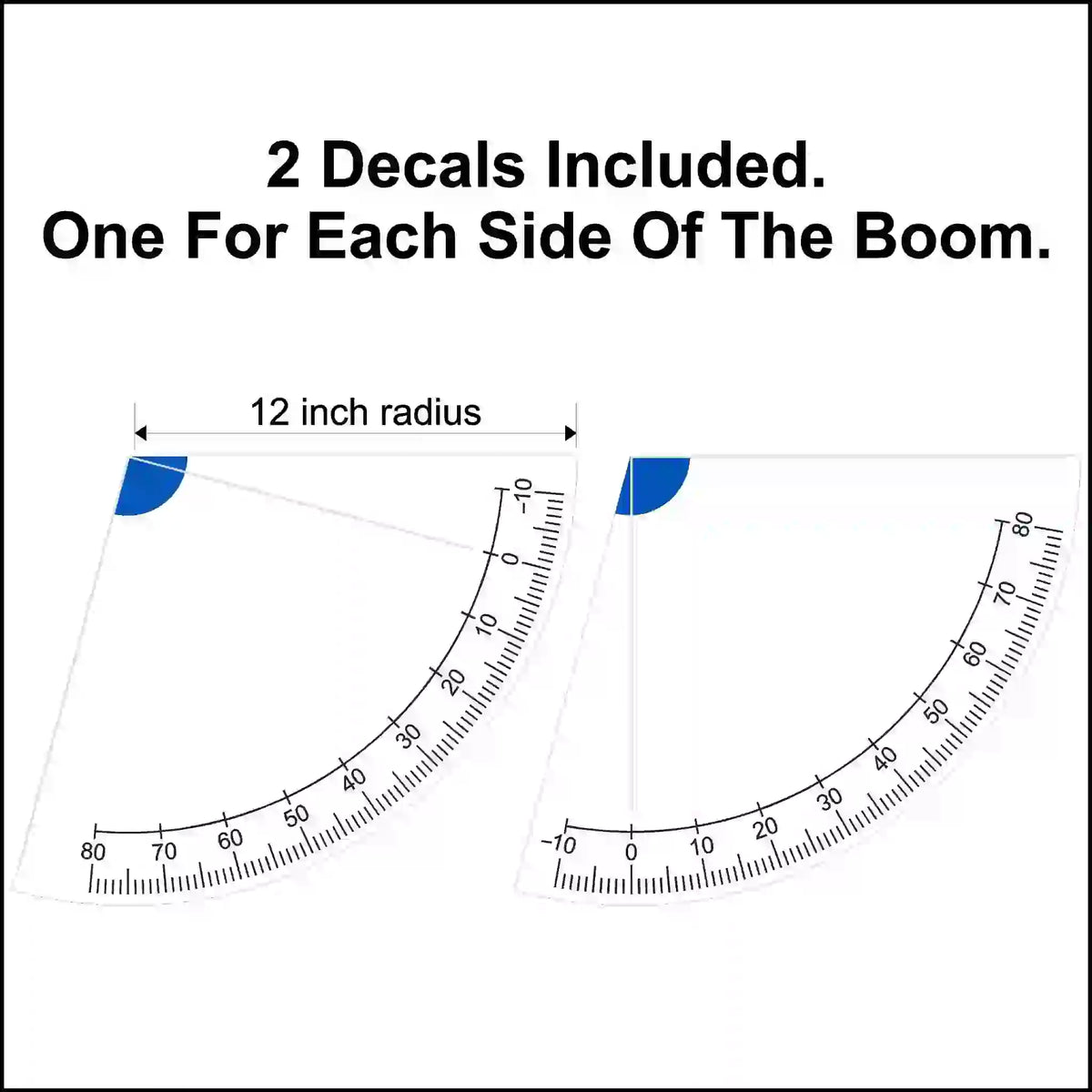

BA-002 Decal Size is FROM The Center Bolt That Holds The Arrow to The Outside (Radius) Is 12 Inches.
BA-003 Decal Size is FROM The Center Bolt That Holds The Arrow to The Outside (Radius) Is 6 Inches.

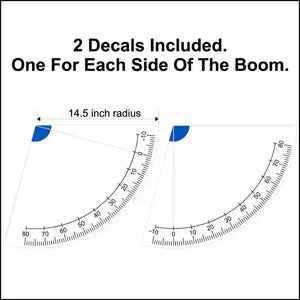

BA-004 Decal Size is FROM The Center Bolt That Holds The Arrow to The Outside (Radius) Is 14 1/2 Inches. Customers bought this BA-004 to fit a National Crane 500C

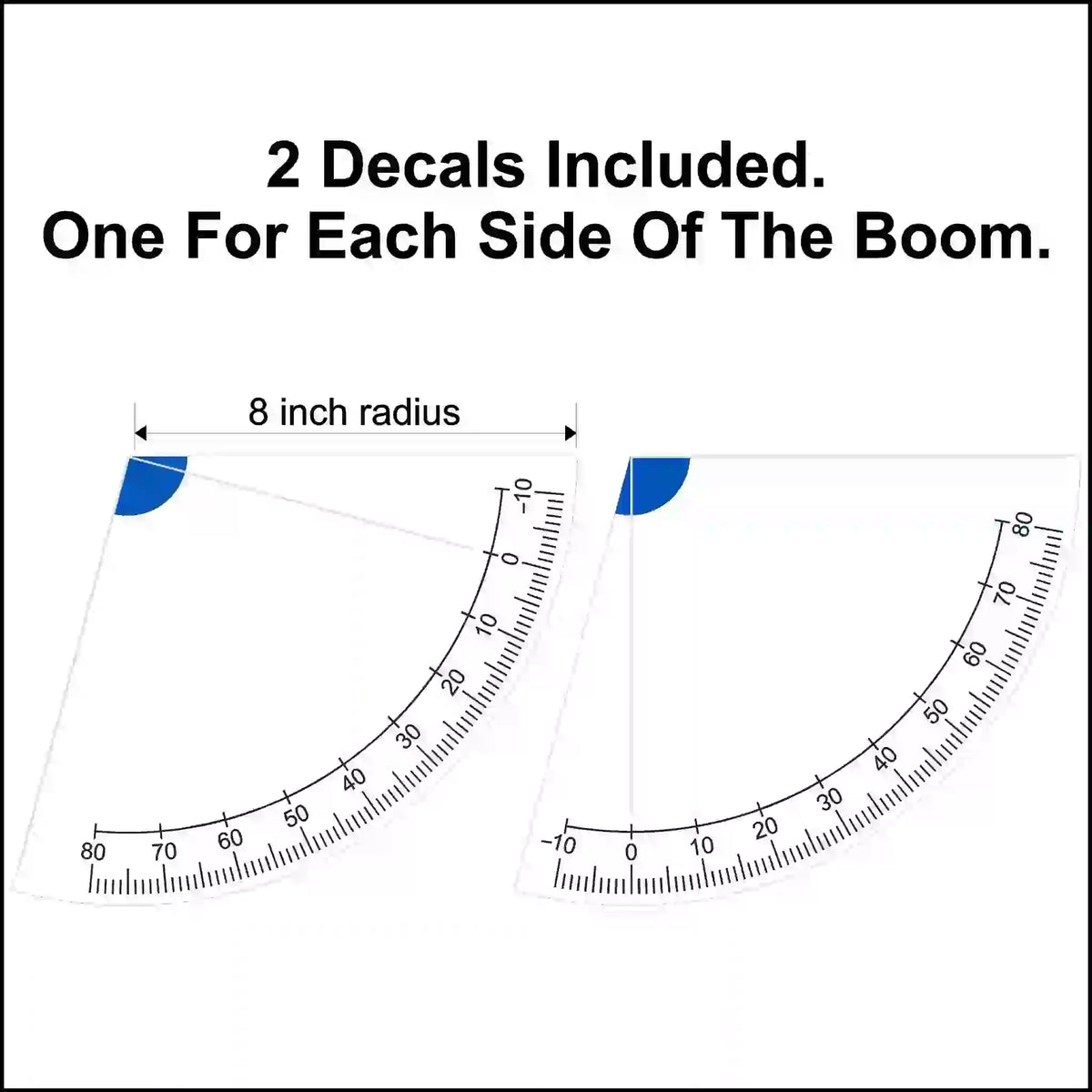

BA-005 Decal Size is FROM The Center Bolt That Holds The Arrow to The Outside (Radius) Is 8 Inches.

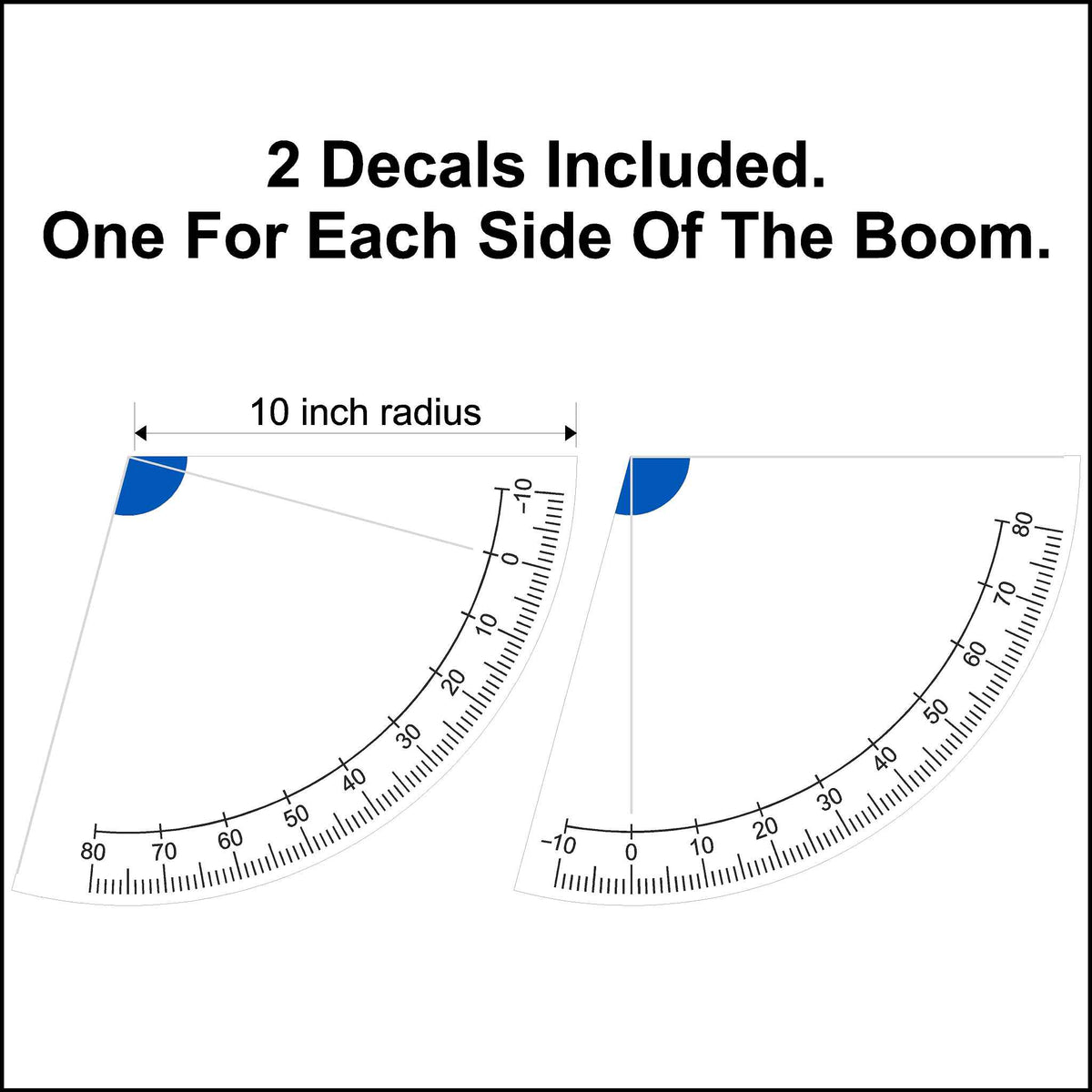

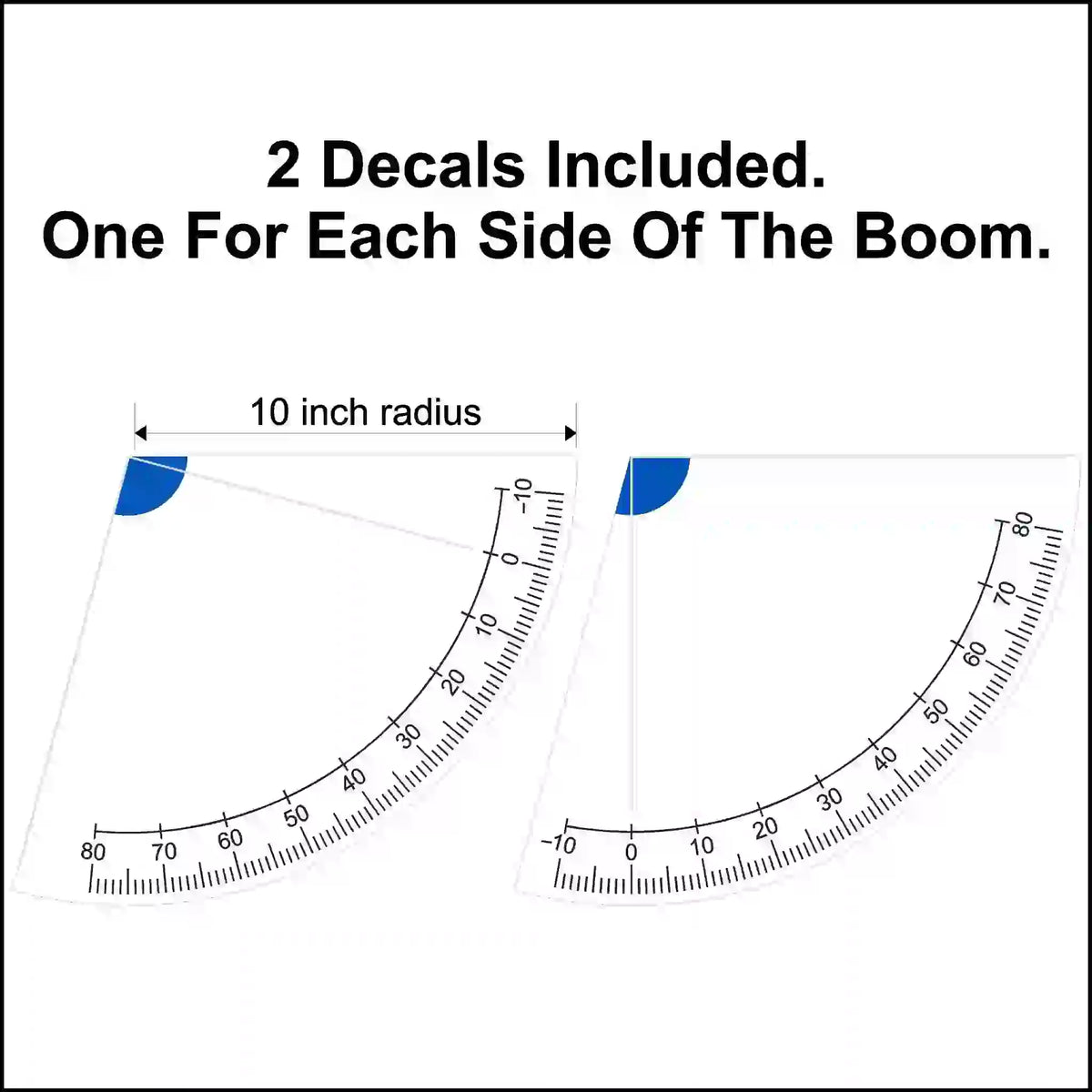

BA-006 Decal Size is FROM The Center Bolt That Holds The Arrow to The Outside (Radius) Is 10 Inches.
Our boom angle indicator decals are created, printed, cut, and shipped in the USA.
