Overhead Crane Directional Stickers | ASME B30.2 Decals

Make crane travel direction easier to identify with high-visibility overhead crane directional stickers. The yellow and blue north, south, east, and west markings give operators a clear visual reference and are designed to support ASME B30.2 crane identification practices.

Made from durable, UV-resistant vinyl, these crane direction decals are suited for overhead cranes, gantry cranes, pendant controls, and other industrial applications. Choose the arrow configuration carefully so the installed directions match your equipment and operating area.

Overhead Crane Directional Sticker Features

• Clear directional identification: North, south, east, and west markings help operators confirm crane travel direction.
• High-visibility colors: Yellow and blue sections provide quick visual recognition in busy industrial environments.
• Durable vinyl construction: UV-resistant material is made for demanding indoor and outdoor applications.
• Multiple sizes for clear visibility: Available in 5, 6, 7, 8, 10, 12.5, 14, 20, 24, and 48-inch sizes. Select a size and installation location that keeps the directional marking legible to the operator.
• Bulk ordering available: Quantity pricing helps facilities, crane service companies, and safety teams equip multiple cranes.

Designed for Crane Safety and Clear Communication

Clear crane direction labels can reduce confusion between the operator, pendant controls, and crane movement. These decals provide a professional, easy-to-read directional reference for overhead and gantry crane operations while supporting workplace safety procedures.

ASME B30.2 Directional Marking

ASME B30.2 Section 2-1.1.6(c) requires directional markings on applicable overhead and gantry crane equipment or facilities. The standard identifies “north, south, east, west” as examples of acceptable markings and specifies that they must be legible to the operator and consistent with the direction-of-movement markings on the crane controllers.

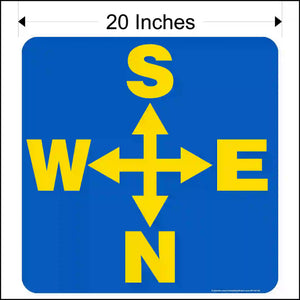

This N-S-E-W overhead crane directional decal is designed to provide clear, visible directional markings for applicable crane equipment or facilities. Before installation, verify that the decal’s directions match the corresponding controller markings and actual crane movement.

The yellow-and-blue color scheme and graphic layout are product-design features. They are not represented as colors or artwork specifically mandated by ASME B30.2 or OSHA.

OSHA 29 CFR 1910.179(b)(2) also requires covered overhead and gantry cranes constructed and installed on or after August 31, 1971, to meet the design specifications of ANSI B30.2.0-1967, as incorporated by reference.

Choosing the Correct Configuration

Important: Check the north, south, east, and west arrow arrangement before ordering and installation. Confirm that the configuration matches the intended crane travel directions at your facility.

Need a different arrow arrangement? Compare our alternate N-S-E-W overhead crane directional sticker and select the configuration that matches your equipment.

Sizes and Product Numbers

ASME B30.2 does not prescribe a specific size for these N-S-E-W directional markings. Choose a decal size appropriate for the equipment, viewing distance, and installation location so the marking remains legible to the operator.

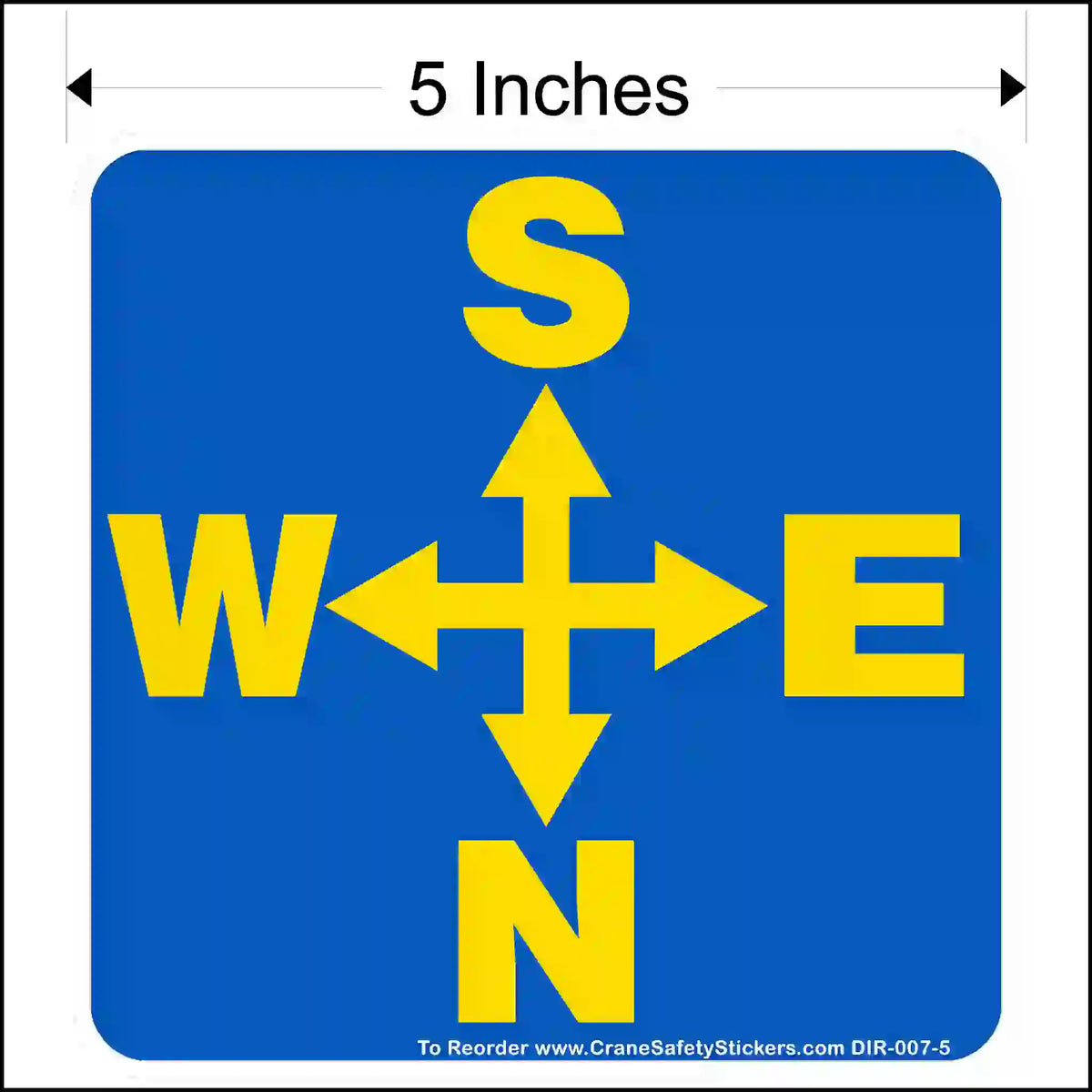

• 5 inch: DIR-007-5

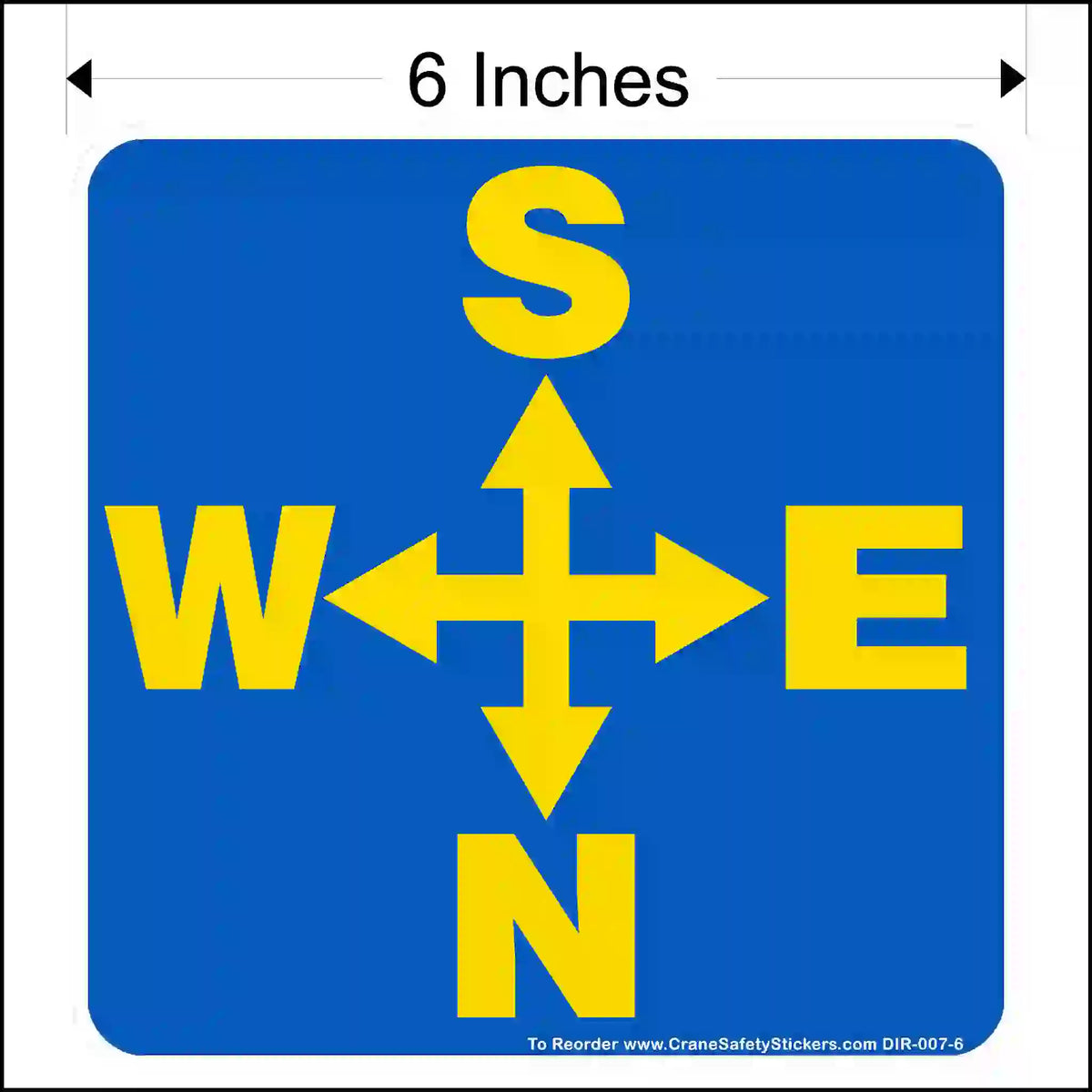

• 6 inch: DIR-007-6
• 7 inch: DIR-007-7

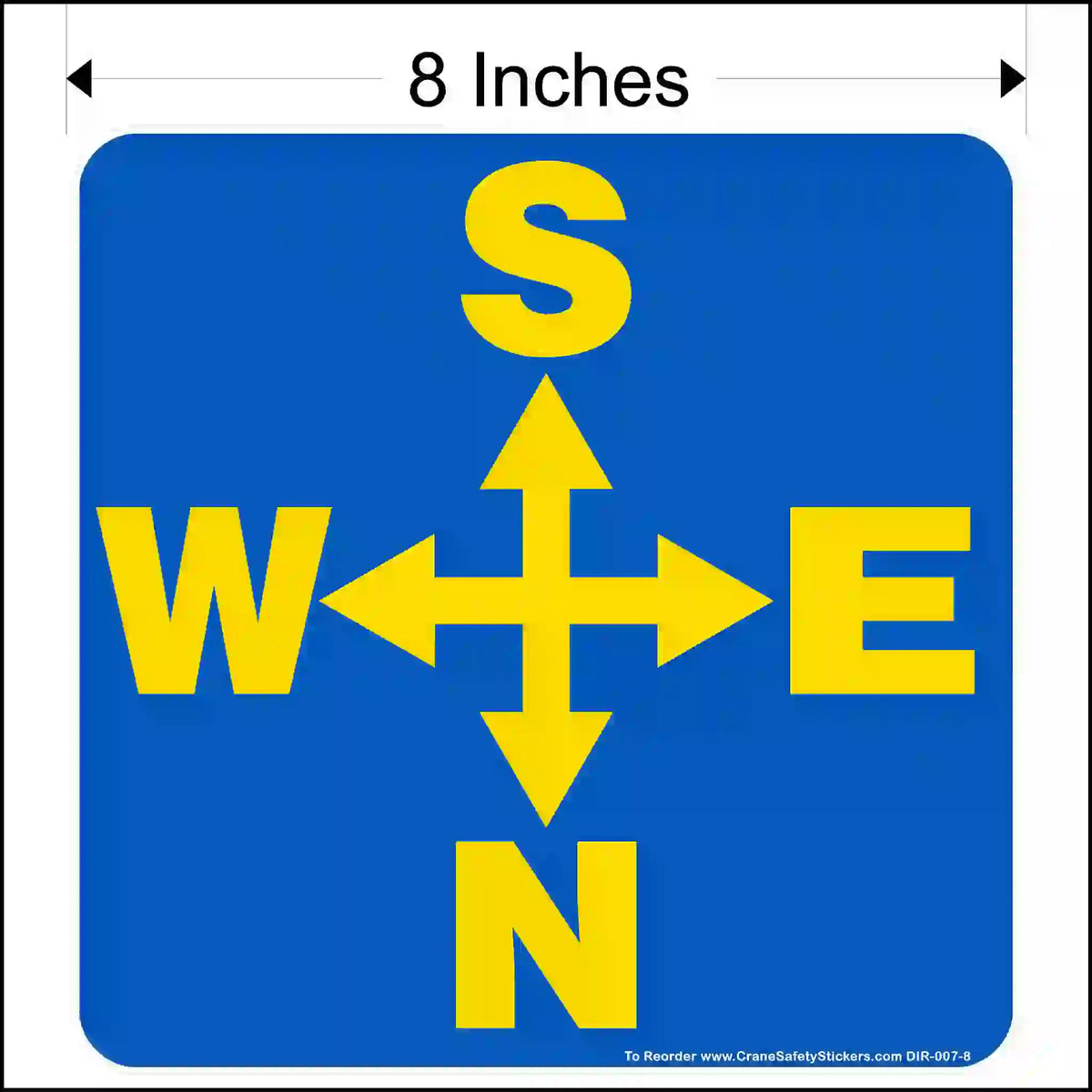

• 8 inch: DIR-007-8

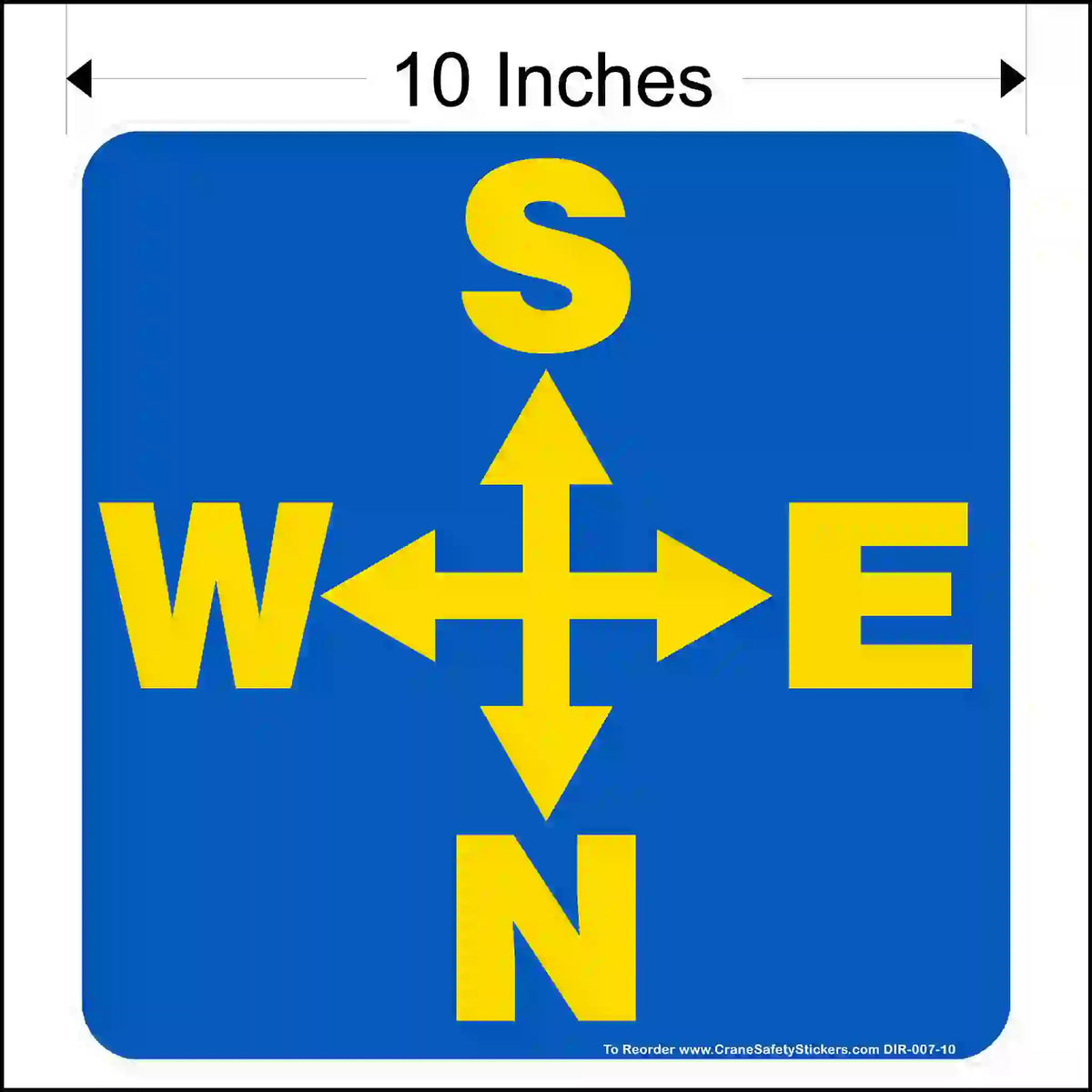

• 10 inch: DIR-007-10

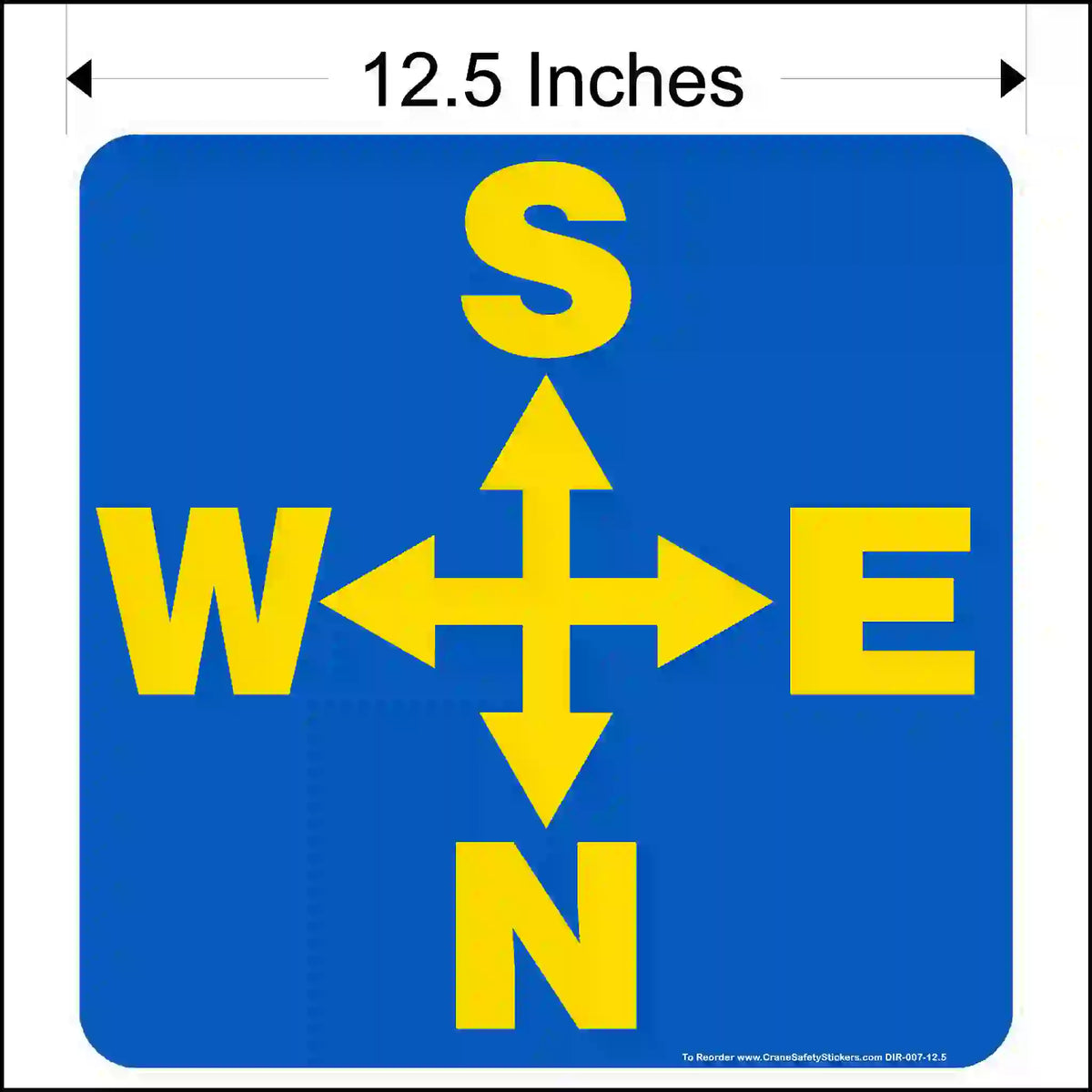

• 12.5 inch: DIR-007-12.5

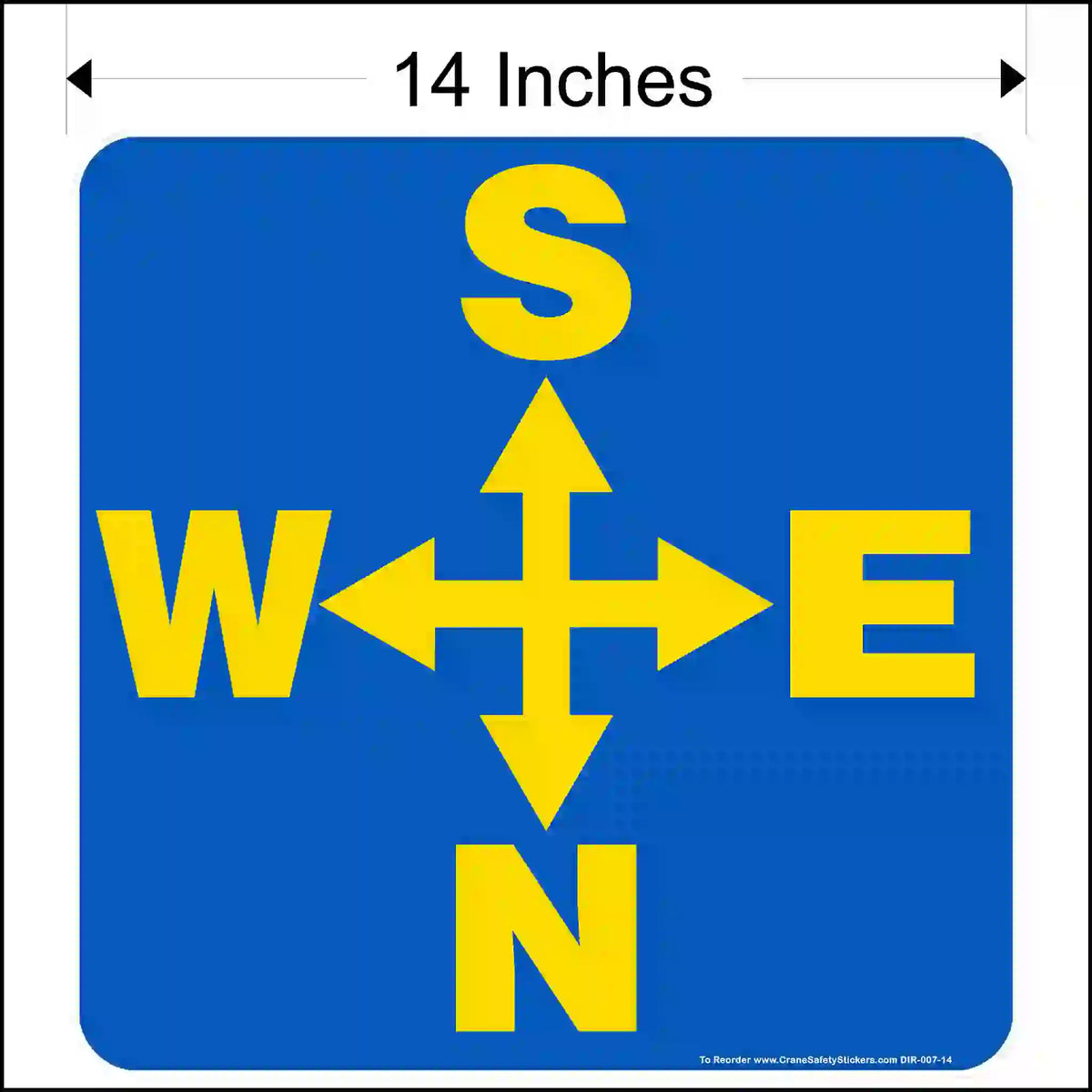

• 14 inch: DIR-007-14

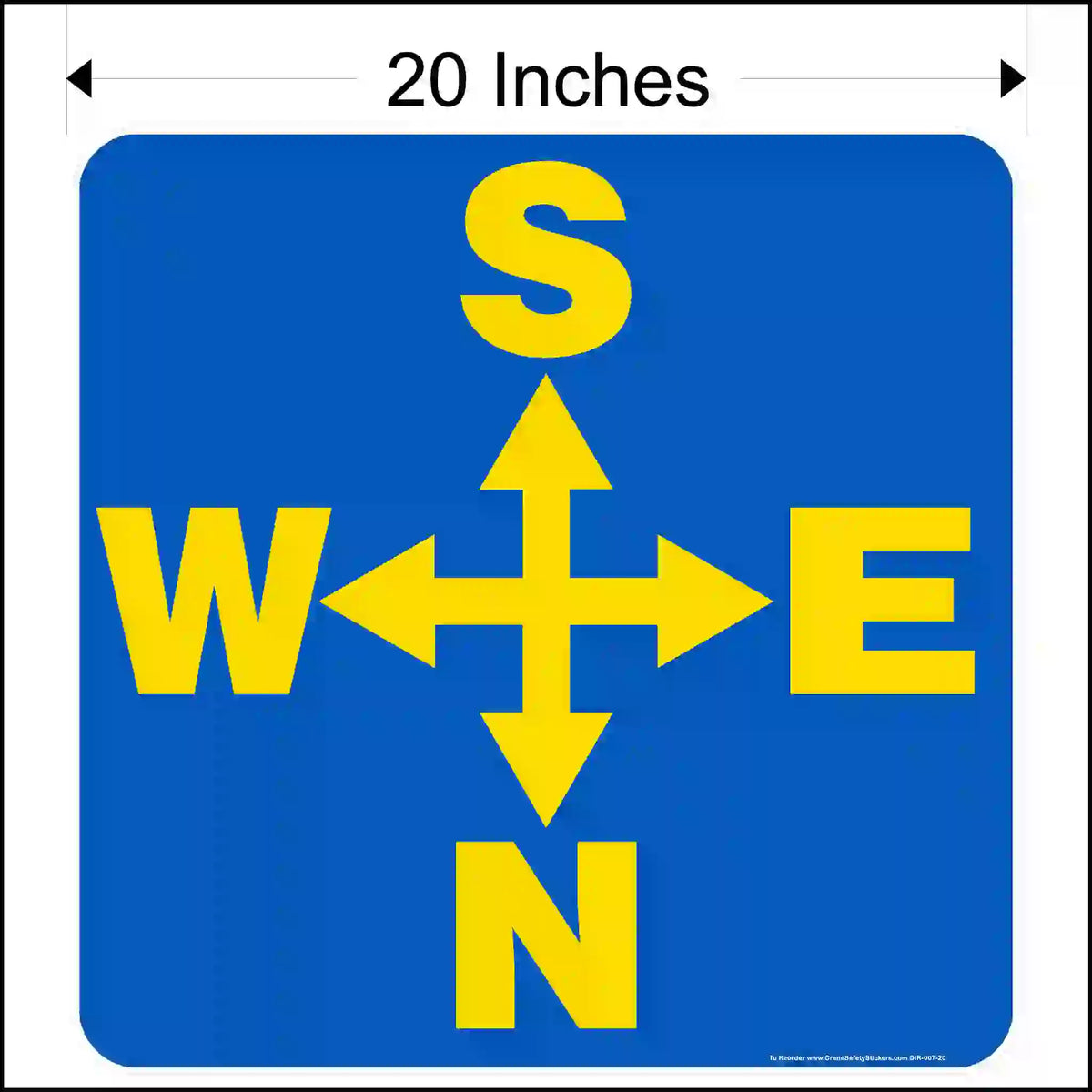

• 20 inch: DIR-007-20

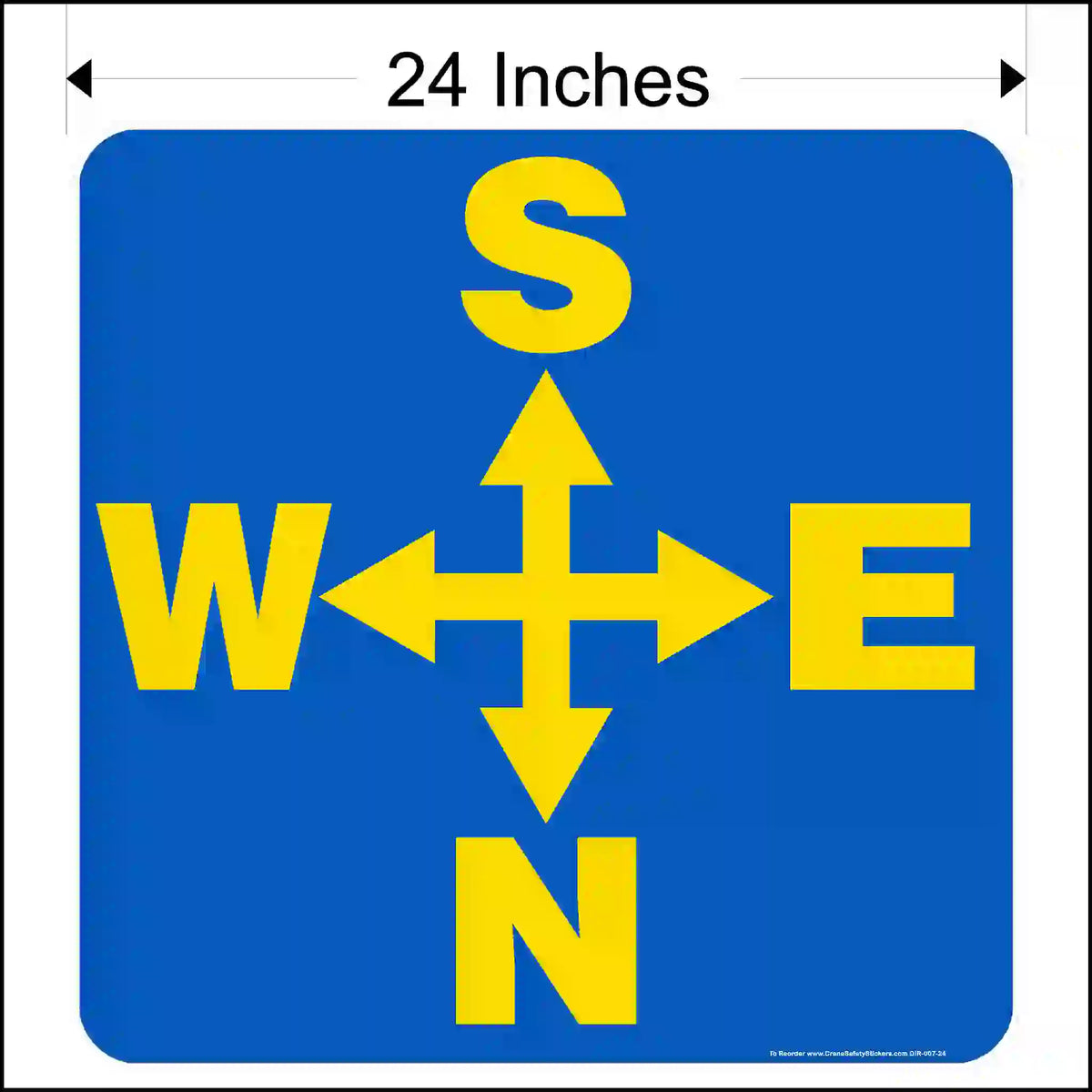

• 24 inch: DIR-007-24
• 48 inch: DIR-007-48

Need a custom size, configuration, or quantity? Contact our team for assistance with custom crane directional decals.
