EC-011

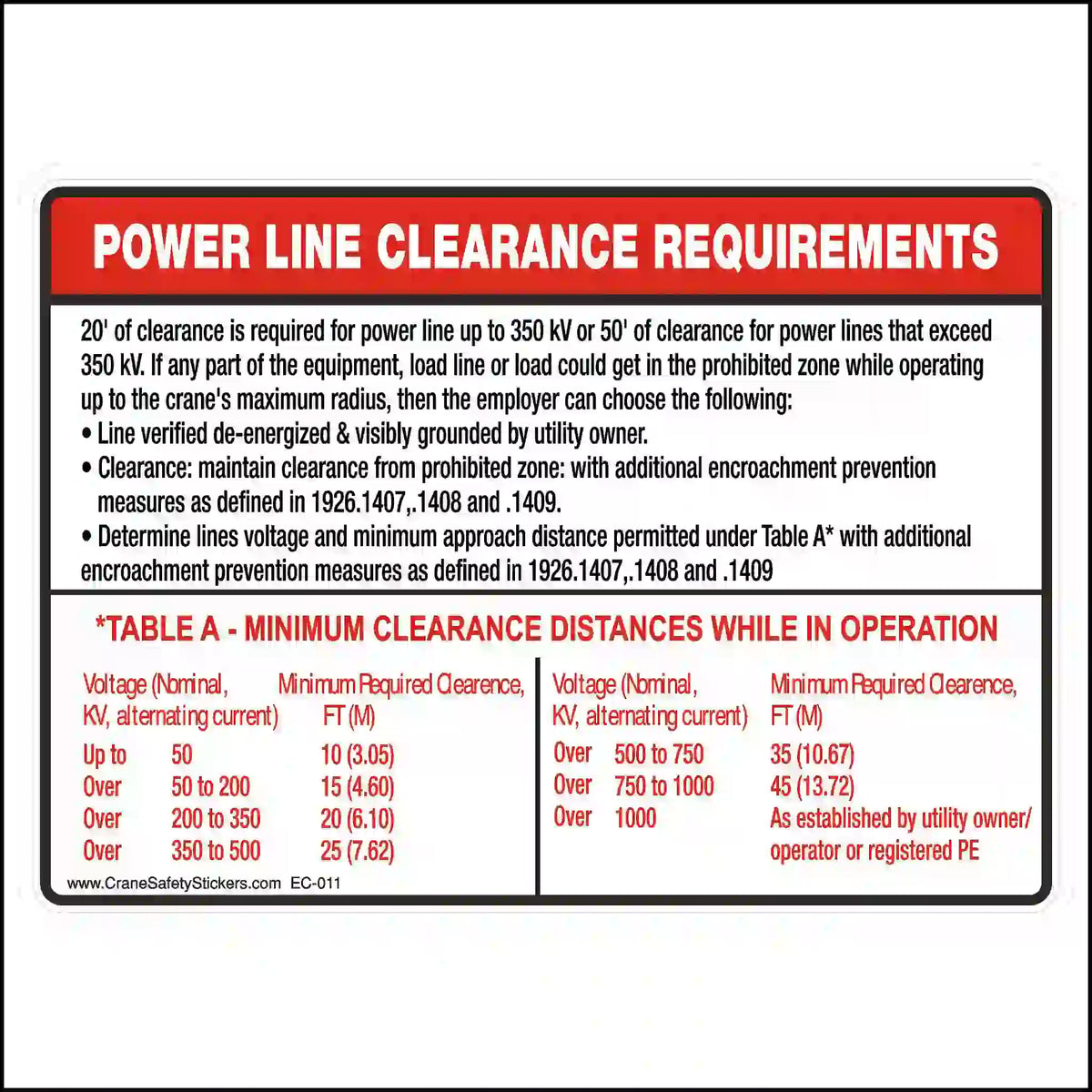

Keep power-line planning information visible on cranes, boom trucks, and related equipment with this Power Line Clearance Requirements decal. The 7 × 5-inch chart summarizes the printed planning thresholds, options, and Table A reference associated with OSHA 29 CFR 1926.1407, 1926.1408, and 1926.1409.
This decal is a supplemental visual reference. It does not replace the complete current regulations, site assessment, voltage determination, employer procedures, encroachment-prevention measures, training, or a qualified person’s determination.
The decal states that 20 feet of clearance is used for power lines up to 350 kV and 50 feet for power lines over 350 kV when determining whether any part of the equipment, load line, or load could enter the prohibited zone while operating up to the crane’s maximum working radius.
When the equipment could enter that zone, the printed summary identifies these paths:
The 20- and 50-foot figures are planning thresholds shown on the decal. They should not be confused with the voltage-specific minimum clearance distances in Table A.
Install the decal on a clean, dry, smooth surface where it can be read without covering equipment controls, required manufacturer labels, inspection information, or damage. Remove dust, grease, moisture, adhesive residue, and loose material before application, then press firmly across the full decal.
Inspect the decal during routine equipment inspections and replace it if it becomes loose, damaged, faded, outdated, or illegible.
Review the complete current requirements before planning or performing work near power lines. See OSHA 29 CFR 1926.1408 and the related provisions referenced on the decal.
Possessing or applying this decal does not by itself establish OSHA compliance or confirm that a work zone, clearance distance, voltage determination, or encroachment-prevention measure is correct for a specific operation.
Need a different size or custom wording? Contact our team to discuss your requirements.
