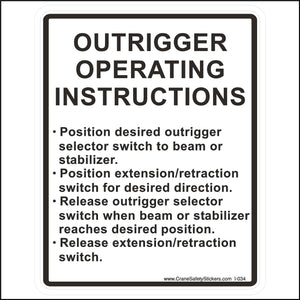

Crane safety instructions sticker for outrigger operation on a white background.

Crane Outrigger Operating Instructions Sticker – 4 × 5 Inches

I-034

$4.75 USD $0.00 USD

This 4-inch-wide × 5-inch-tall Outrigger Operating Instructions sticker displays four instructions for an outrigger selector switch and an extension/retraction switch. I-034 uses black text on a white background with a black border.

Printed operating instructions

  • Position desired outrigger selector switch to beam or stabilizer.
  • Position extension/retraction switch for desired direction.
  • Release outrigger selector switch when beam or stabilizer reaches desired position.
  • Release extension/retraction switch.

Match the instructions to your controls

Check the wording against the equipment manual and actual control arrangement before choosing this decal. It describes a particular selector-switch sequence, not a universal procedure for every crane or outrigger system. It is an adhesive instruction label, not a control switch, load chart, or complete crane setup guide.

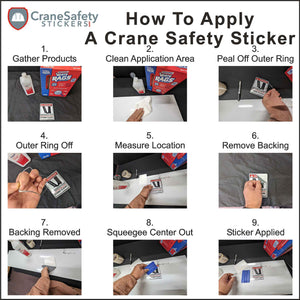

Placement and application

For a replacement, follow the manufacturer's specified label location. Where an additional instruction reminder is appropriate, choose a suitable visible surface near the matching controls without covering other warnings, identification, or control markings. Apply to a clean, dry surface.

Need Spanish instructions? See Spanish outrigger operating instructions sticker I-034SP.

Created, printed, cut, and shipped in the USA. For different label wording or sizing, contact us.

Technical & Safety Data

Product Composition & Identification

Film Construction: 2.75 mil Polymeric Calendered Vinyl base paired with a 2.75 mil flexible clear Polymeric Calendered Vinyl overlaminate.

Adhesive System: Clear Solvent-Based Permanent Pressure Sensitive Acrylic.

Total Adhesive Thickness: 2.3 mil combined (1.2 mil base and 1.1 mil laminate).

Health, Safety & Regulatory Compliance

Fire Rating: Class A fire rating under ASTM E84-17 testing.

Commercial Safety: Meets the highest life safety requirements for indoor and outdoor commercial graphics.

Toxicity & Structure: Phthalate-Free Film Structure.

Regulatory Standards: Meets the health and safety requirements set forth by CPSIA, REACH, RoHS, and California Proposition 65.

Physical & Chemical Properties

Chemical Resistance: Resists mild acids, mild alkalis, solvents, and salts.

Moisture Resistance: Excellent resistance to water, including full immersion.

Tensile Strength: 12.5 Pounds/Inch.

Dimensional Stability: 0.020 Inch (Machine Direction).

Peel Adhesion: 4.5 Pounds/Inch from Stainless Steel.

Environmental & Temperature Tolerances

Operating Temperature Range: -40°F to 190°F.

Application Temperature: 50°F to 80°F recommended.

Installation Surface: Clean, dry, and free of dust, dirt, debris, or grease.

Outdoor Lifespan: Up to 5 years permanent durability.
