EC-002CrLa-CA

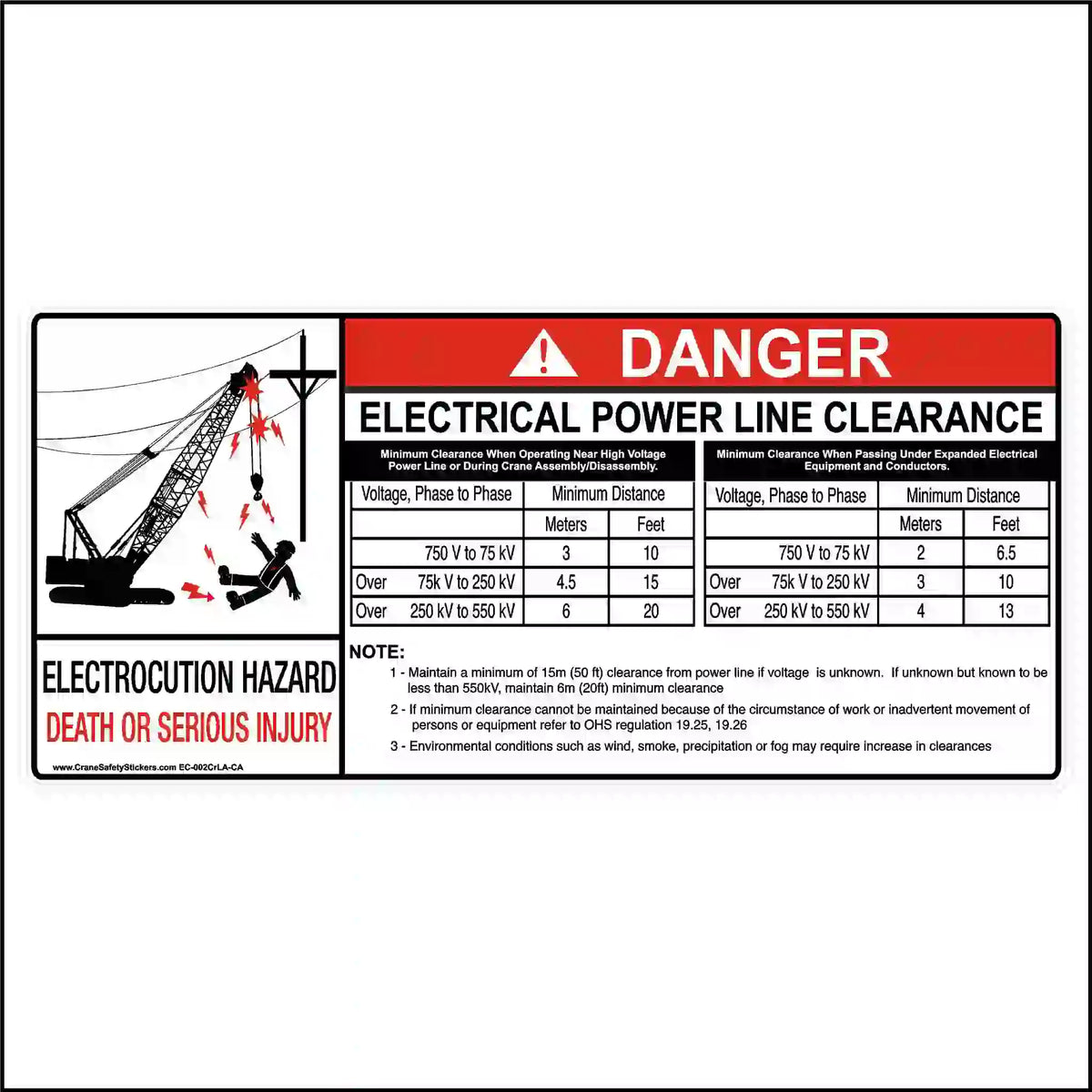

Protect your crew and assets with the Power Line Clearance Requirements Decal (SKU: EC-002CrLa-CA). This 12-inch wide by 5 1/2-inch tall safety indicator provides operators with immediate, OSHA-compliant minimum clearance distances to prevent fatal high-voltage contact during active jobsite hoisting operations.
This safety placard supports professional operators by displaying clear minimum clearance distances to prevent accidental contact with live electrical lines. On the left side of the layout, a high-contrast danger illustration warns of fatal electrocution risks for ground personnel, establishing immediate safety awareness. The decal provides the crane cab with explicit, dual-unit tables measured in both meters and feet to ensure rapid readability under active field conditions.
The visual layout presents two distinct lookup datasets designed for instant field verification:
| Reference Dataset | Voltage Thresholds | Operational Context |
|---|---|---|
| Table 1: Operating & Assembly Clearances | 750 V (volts) to 550 kV (kilovolts, where 1 kV equals 1,000 volts of electrical potential) | Provides crews with immediate safety clearances during active equipment setup, assembly, and hoisting operations. |
| Table 2: Transit Clearances | Varies by utility line voltage | Specifies safe clearances when traveling under electrical equipment with the boom lowered and no active load attached. |
To support alternative safety compliance measures on complex jobsites, the chart explicitly cites Canadian Occupational Health and Safety (OHS) regulations 19.25 and 19.26. By keeping these critical thresholds in direct view of the operator, this power line clearance sticker works as a constant risk mitigation tool on the jobsite, minimizing utility contact risks and protecting expensive fleet assets. This is the primary safety decal configured specifically for mobile crane operations.
To ensure maximum visibility and long-term legibility, this safety decal is designed to be mounted directly onto your hoisting equipment. For optimal utility, you must install the chart in a highly visible location within the operator cab or directly adjacent to the main control station. This consistent positioning ensures that the crane power line chart remains within the operator’s natural line of sight during critical setup and lifting phases.
Proper surface preparation is required to prevent peeling and ensure the adhesive achieves a permanent bond. Follow these steps for installation:
