It shows horizontal and diagonal arrow symbols on a diagonally divided yellow-and-blue background. Yellow arrows appear on blue, and blue arrows appear on yellow. It does not use compass letters or written direction names.
DIR-005-8
This overhead crane directional decal features horizontal and diagonal arrow symbols on a diagonally divided yellow-and-blue background. Yellow arrows appear on the blue section, and blue arrows appear on the yellow section. The design uses symbols rather than compass letters or written direction names.

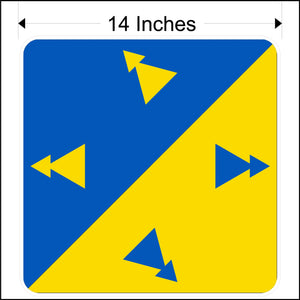

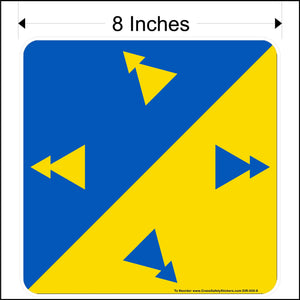

Available in 8-inch and 14-inch square sizes, this vinyl decal provides a visual reference for crane travel directions. Measure the intended mounting area and compare the pictured artwork with your existing directional markings before choosing a size.
The arrow arrangement is consistent with overhead bridge-crane travel symbols: horizontal arrows can represent trolley travel across the bridge, while diagonal arrows can represent bridge travel toward or away from the operator’s reference position. Confirm the meaning of each arrow for your equipment rather than assuming a universal control layout.
Before installation, check the arrangement against the crane’s actual movements and corresponding pendant or radio-control markings from the intended operator position. Follow the equipment manufacturer’s guidance for placement and orientation.
This decal is not a pendant controller or replacement switch. It does not by itself certify OSHA or ASME compliance or replace operator training and workplace operating procedures.
For custom sizes or colors, contact us for details.
