Overhead Crane Directional Decal - ASME B30.2 Compliant

The Crane Directional Sticker (SKU: DIR-002) is a high-visibility, black-on-white safety decal engineered to align handheld pendant controls with physical machinery travel. Available in standardized square sizes ranging from 3 to 48 inches to ensure ground-level legibility across various hoist heights, this marker serves as a critical visual reference to mitigate operational errors and support facility safety during overhead crane movements.

Aligning Overhead Crane Movements with Compass Directions

These directional stickers establish a fixed point of orientation under an overhead crane. By displaying the cardinal directions—North (N), South (S), East (E), and West (W)—directly on the overhead structure, the decal allows operators to cross-reference handheld pendant control inputs with the physical travel of the bridge and trolley.

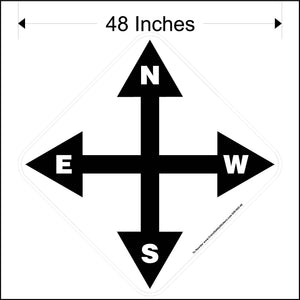

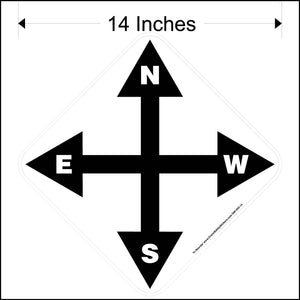

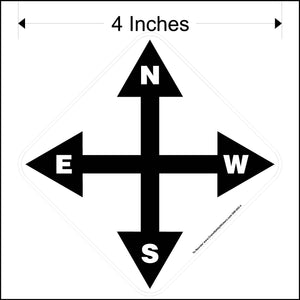

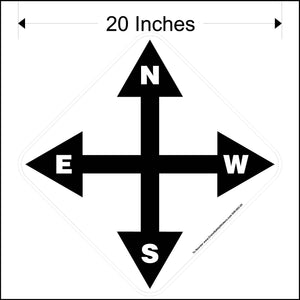

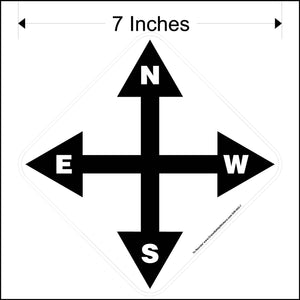

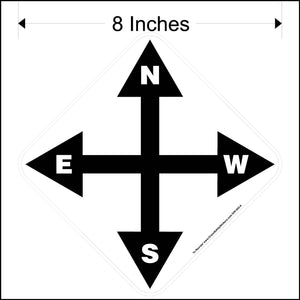

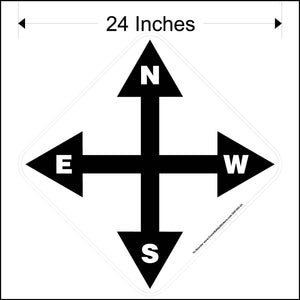

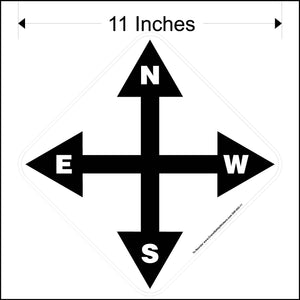

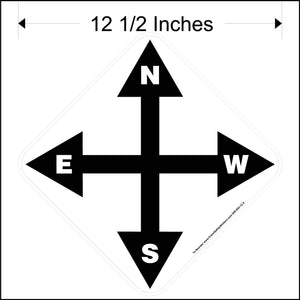

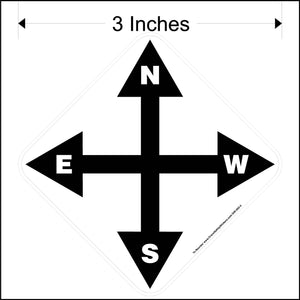

This specific configuration, designated as part number DIR-002, features a unified compass rose layout rather than individual directional markers. The design positions the "E" (East) indicator on the left arrow and the "W" (West) indicator on the right arrow.

This layout is engineered specifically for a "ceiling-view" orientation. When viewed from the facility floor looking upward toward the crane structure, the East and West markers align accurately with the operator's physical left-to-right perspective. This precise spatial orientation prevents directional confusion, ensures immediate legibility, and mitigates control entry errors during critical overhead lifting maneuvers.

Placement and Surface Preparation Guidelines for Directional Decals

To ensure the safety decal remains fully legible and adheres permanently, installers must follow a systematic mounting process. Proper positioning and surface preparation prevent the decal from peeling or sustaining damage from environmental exposure over time.

• Determine Location: Apply these markers to the underside of the crane bridge, the trolley, the hoist assembly, or adjacent to the operator's control station.
• Verify Orientation: Confirm that when an operator views the decal from the ground, the marked directions correspond exactly to the physical travel directions of the crane and the labels on the controller.

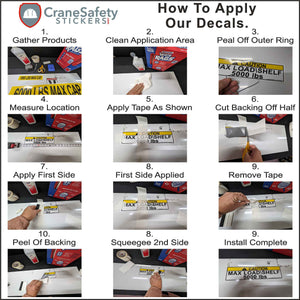

1. Clean: Thoroughly clean and degrease the metal mounting surface to remove all dust, oil, grease, or contaminants that interfere with adhesive bonding.
2. Dry: Ensure the surface is completely dry before proceeding.
3. Apply: Carefully peel the backing and apply the decal directly to the flat, rigid metal surface, pressing firmly from the center outward to eliminate air bubbles and secure the adhesive bond.

In addition to standard overhead crane systems, these directional markers are commonly applied to compatible gantry crane assemblies to assist ground crews with orientation. To find the correct configuration for your facility, explore the parent collection of Compliant Crane Directional Stickers for Overhead Cranes. For broader facility safety compliance and operator education, consider pairing these directional indicators with an Overhead Crane Hand Signal Chart.
