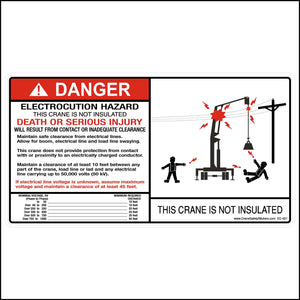

Crane electrical hazard sticker with a red Danger header, power line voltage-clearance chart, electrocution illustration and THIS CRANE IS NOT INSULATED warning.

Crane Electrical Hazard Sticker with Power Line Clearance Chart

EC-001

$5.75 USD

This crane electrical hazard sticker combines an electrocution warning, a printed power line voltage-clearance chart and an illustration of a crane near overhead electrical lines. The red DANGER header includes a triangular alert symbol, and the lower-right panel reads THIS CRANE IS NOT INSULATED.

Printed Electrocution Warning

DANGER
ELECTROCUTION HAZARD
THIS CRANE IS NOT INSULATED

“DEATH OR SERIOUS INJURY WILL RESULT FROM CONTACT OR INADEQUATE CLEARANCE.”

“Maintain safe clearance from electrical lines. Allow for boom, electrical line and load line swaying.”

“This crane does not provide protection from contact with or proximity to an electrically charged conductor.”

Power Line Voltage-Clearance Chart

The lower-left portion of the artwork contains a chart labeled NOMINAL VOLTAGE, KV (Phase to Phase) and MINIMUM REQUIRED DISTANCE. Additional printed text discusses clearance and unknown line voltage. Review the product image to compare the complete chart and wording with your equipment’s required replacement label.

The chart and warning are described here as printed label content, not as a determination of the clearance required for a particular job. Confirm current applicable requirements and your equipment manufacturer’s instructions with the qualified person responsible for the work before relying on a replacement label.

Crane Warning Decal Details

  • Size: 10½ inches wide × 5½ inches tall
  • SKU: EC-001
  • English-language horizontal warning label
  • Red, black and white design with a crane/power-line electrocution illustration
  • Created, printed, cut and shipped in the USA

Choosing and Placing Your Replacement Sticker

Match the dimensions, wording, chart and illustration to your equipment manufacturer’s replacement-label requirements. Do not assume this decal fits every crane boom or cab.

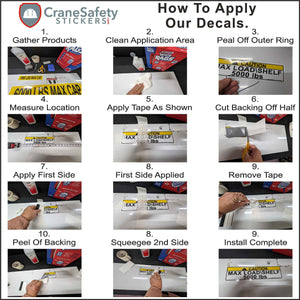

Follow the manufacturer’s specified warning-label location. Keep the label readable without covering controls, rating plates, instructions or other warnings. Follow the decal’s application instructions and prepare a clean, dry surface.

This sticker communicates a warning. It does not insulate the crane, provide electrical protection, prevent electrocution, guarantee inspection results or establish OSHA, ASME, ANSI or NFPA compliance. It does not replace training, job planning, manufacturer instructions or required hazard controls.

For mobile cranes, the decal should be mounted inside the operator cab in a direct, unobstructed line of sight from the operating seat. Additional warning decals must be placed on the exterior crane chassis near ground-level remote control stations or on both sides of the crane base. You should also place stickers near the boom cylinders where rigging crews and ground spotters can clearly view the hazards. Make sure to follow the equipment manufacturer’s specified replacement-label location. Keep the label readable without covering controls, rating plates, instructions or other warnings.

It reads “DANGER,” “ELECTROCUTION HAZARD,” “THIS CRANE IS NOT INSULATED,” and “DEATH OR SERIOUS INJURY WILL RESULT FROM CONTACT OR INADEQUATE CLEARANCE.” Additional text addresses electrical-line clearance and swaying.

Yes. The lower-left portion of the decal includes a printed chart with nominal line-voltage ranges and clearance distances. Compare the complete chart and wording in the product image with your equipment’s required replacement label.

This sticker measures 10½ inches wide × 5½ inches tall. Its SKU is EC-001.

For a cab-operated mobile crane, we recommend a visible location inside the operator’s cab where the warning and voltage chart can be read from the operating position without obstructing the windows or controls. For a ground-control boom truck, we recommend a visible panel beside the crane operating controls where the operator can read it before operating the crane. Additional exterior warnings can be positioned where ground personnel approach the equipment, based on the manufacturer’s decal-location guidance. Use the original warning-label position when known, and do not cover controls, rating plates, instructions or other warnings.

Technical & Safety Data

Product Composition & Identification

Film Construction: 2.75 mil Polymeric Calendered Vinyl base paired with a 2.75 mil flexible clear Polymeric Calendered Vinyl overlaminate.

Adhesive System: Clear Solvent-Based Permanent Pressure Sensitive Acrylic.

Total Adhesive Thickness: 2.3 mil combined (1.2 mil base and 1.1 mil laminate).

Health, Safety & Regulatory Compliance

Fire Rating: Class A fire rating under ASTM E84-17 testing.

Commercial Safety: Meets the highest life safety requirements for indoor and outdoor commercial graphics.

Toxicity & Structure: Phthalate-Free Film Structure.

Regulatory Standards: Meets the health and safety requirements set forth by CPSIA, REACH, RoHS, and California Proposition 65.

Physical & Chemical Properties

Chemical Resistance: Resists mild acids, mild alkalis, solvents, and salts.

Moisture Resistance: Excellent resistance to water, including full immersion.

Tensile Strength: 12.5 Pounds/Inch.

Dimensional Stability: 0.020 Inch (Machine Direction).

Peel Adhesion: 4.5 Pounds/Inch from Stainless Steel.

Environmental & Temperature Tolerances

Operating Temperature Range: -40°F to 190°F.

Application Temperature: 50°F to 80°F recommended.

Installation Surface: Clean, dry, and free of dust, dirt, debris, or grease.

Outdoor Lifespan: Up to 5 years permanent durability.
