High-Voltage Power Line Warning Sticker – 10 Feet, 50,000 Volts or Less

EC-008-Small

Size

This power-line warning sticker displays an electrocution hazard message for equipment operating near overhead high-voltage lines. Both sizes have an orange WARNING header, red lightning bolts and the same printed 10-foot, 50,000-volts-or-less warning.

Two sizes

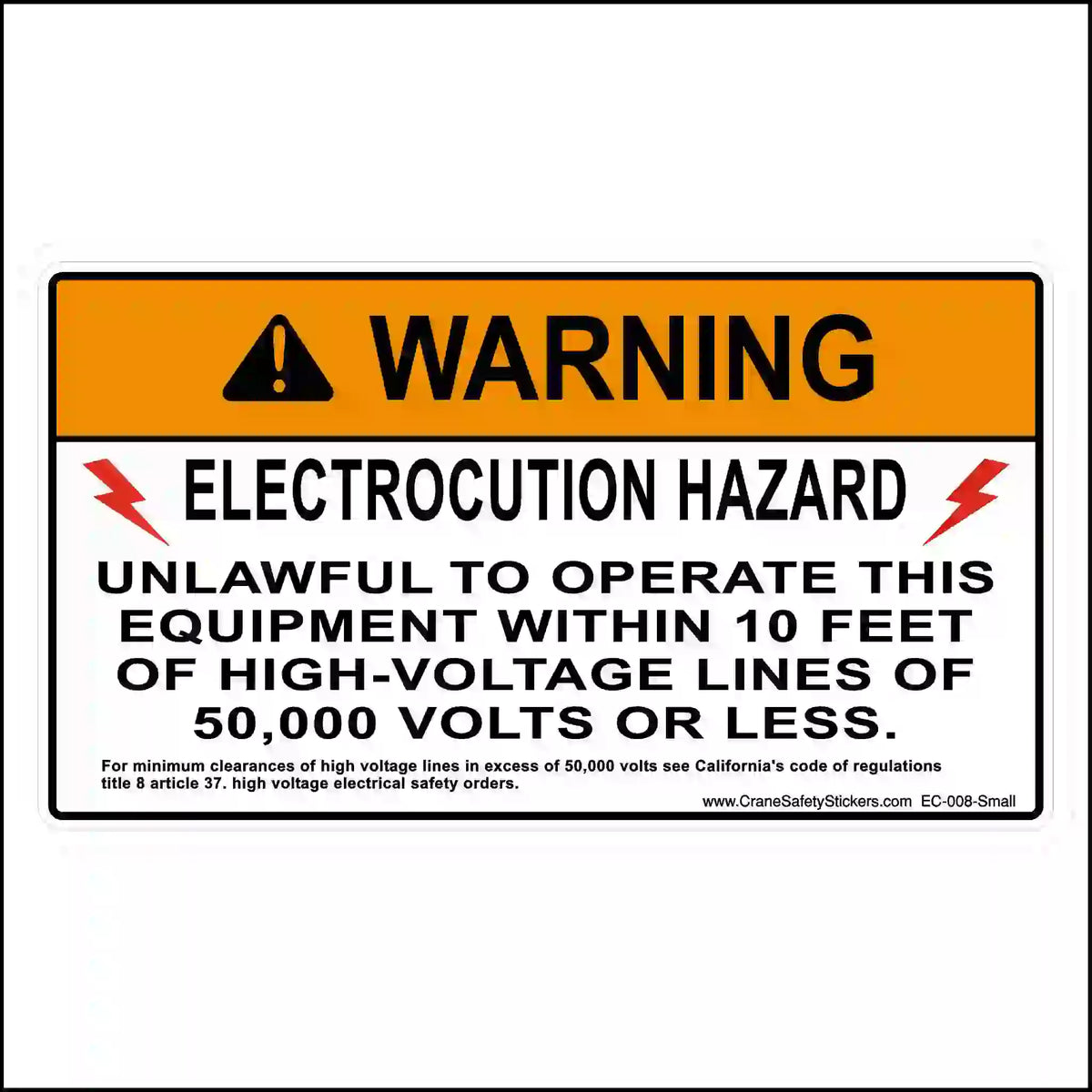

  • EC-008-Small: 5 inches wide × 2¾ inches tall.

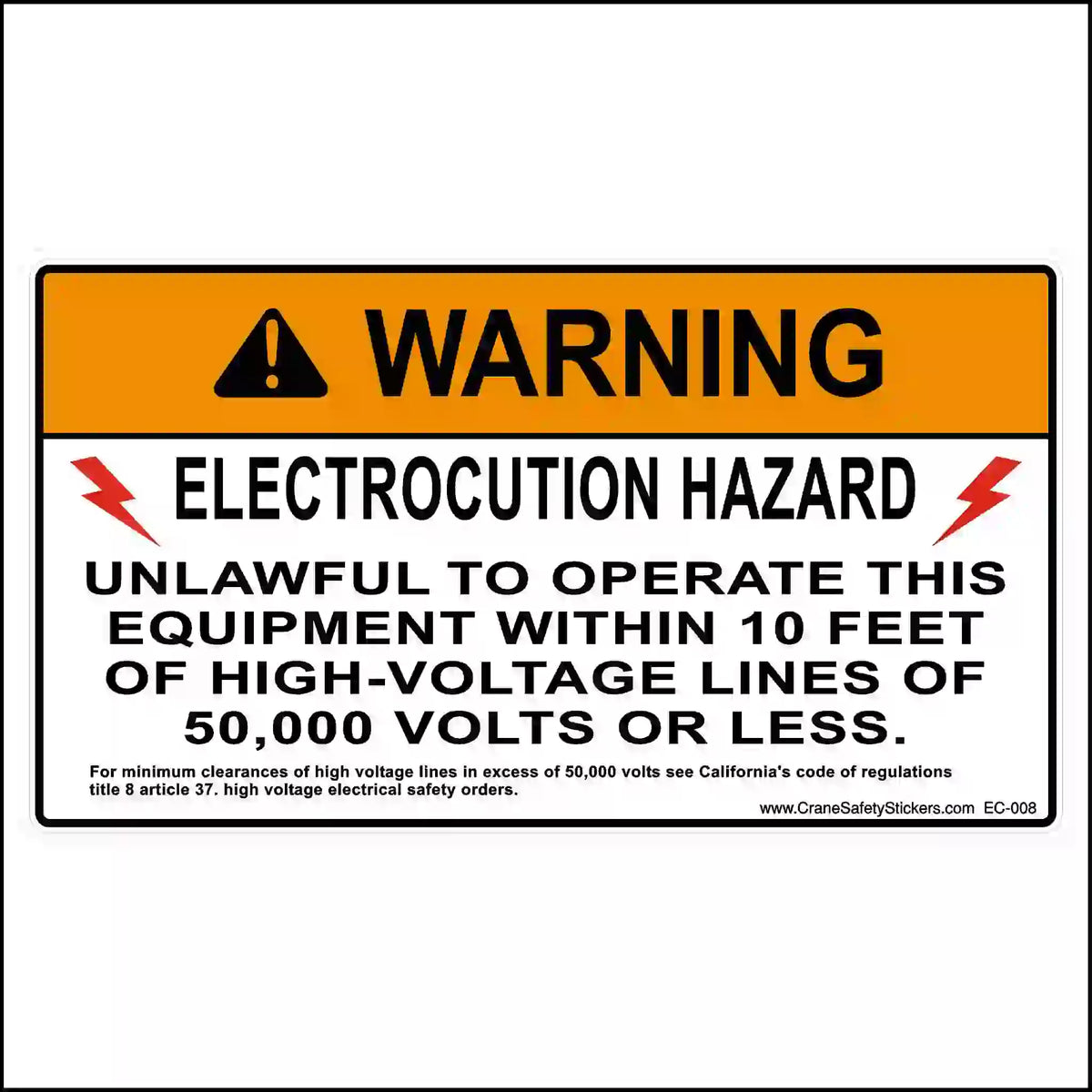

  • EC-008: 9 inches wide × 5 inches tall.

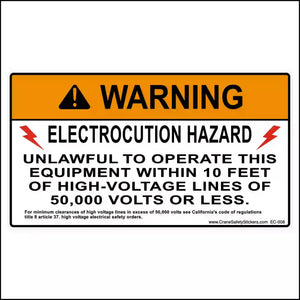

Full printed warning

WARNING
ELECTROCUTION HAZARD

UNLAWFUL TO OPERATE THIS
EQUIPMENT WITHIN 10 FEET
OF HIGH-VOLTAGE LINES OF
50,000 VOLTS OR LESS.

For minimum clearances of high voltage lines in excess of 50,000 volts see California's code of regulations
title 8 article 37. high voltage electrical safety orders.

Operator-visible placement

For cab-operated equipment, consider a visible interior panel readable from the normal operating position without obstructing windows, instruments or controls. For ground-control equipment, consider a fixed panel beside the operating controls where the operator can read the warning before operating.

Additional exterior warnings may be needed for people approaching the equipment; an interior cab label is not visible to everyone outside. Follow the manufacturer’s decal map or designated location when available, and retain the original position when replacing a matching warning. These are general placement suggestions, not verified factory locations for every machine. Apply to a clean, smooth surface without covering other warnings or identification.

Printed message versus operating requirements

The wording above reproduces the sticker, including its California reference. It is not a complete clearance table or a determination of the distance required for a particular task. Do not treat 10 feet as a universal safe operating distance or the printed voltage threshold as guidance for unknown-voltage lines.

Before selecting or relying on the label, confirm that its message is appropriate for your equipment and operation using current applicable requirements, the equipment manufacturer’s procedures and the responsible utility or qualified site personnel. Applying the sticker does not insulate equipment, authorize closer approach, prevent electrical contact or certify compliance.

Technical & Safety Data

Product Composition & Identification

Film Construction: 2.75 mil Polymeric Calendered Vinyl base paired with a 2.75 mil flexible clear Polymeric Calendered Vinyl overlaminate.

Adhesive System: Clear Solvent-Based Permanent Pressure Sensitive Acrylic.

Total Adhesive Thickness: 2.3 mil combined (1.2 mil base and 1.1 mil laminate).

Health, Safety & Regulatory Compliance

Fire Rating: Class A fire rating under ASTM E84-17 testing.

Commercial Safety: Meets the highest life safety requirements for indoor and outdoor commercial graphics.

Toxicity & Structure: Phthalate-Free Film Structure.

Regulatory Standards: Meets the health and safety requirements set forth by CPSIA, REACH, RoHS, and California Proposition 65.

Physical & Chemical Properties

Chemical Resistance: Resists mild acids, mild alkalis, solvents, and salts.

Moisture Resistance: Excellent resistance to water, including full immersion.

Tensile Strength: 12.5 Pounds/Inch.

Dimensional Stability: 0.020 Inch (Machine Direction).

Peel Adhesion: 4.5 Pounds/Inch from Stainless Steel.

Environmental & Temperature Tolerances

Operating Temperature Range: -40°F to 190°F.

Application Temperature: 50°F to 80°F recommended.

Installation Surface: Clean, dry, and free of dust, dirt, debris, or grease.

Outdoor Lifespan: Up to 5 years permanent durability.
